Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the front bumper. (Refer to Body - "FRONT BUMPER ")

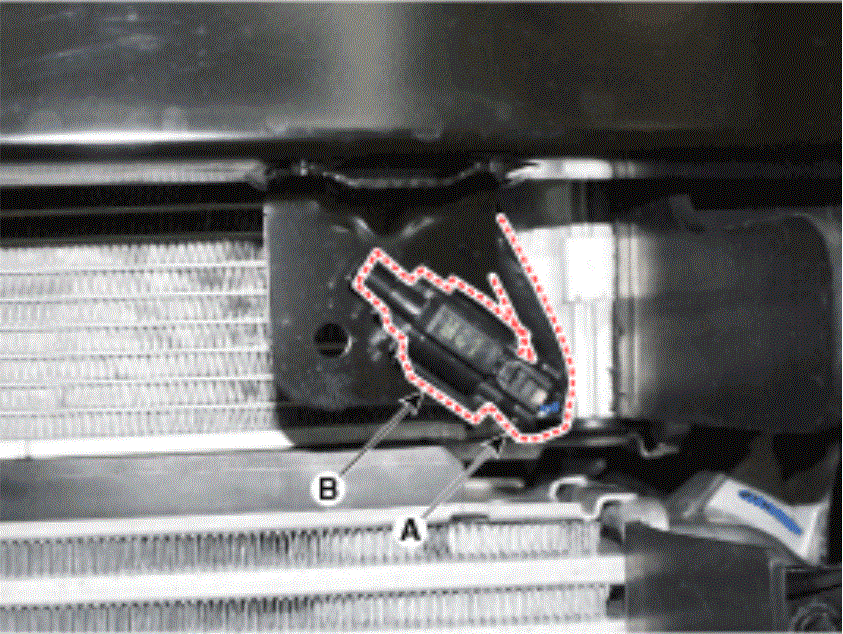

  3. Disconnect the connector, and then remove the ambient temperature sensor (A).
G15472070Courtesy of HYUNDAI MOTOR AMERICA
