Repair Procedures: Removal
- Turn the ignition switch OFF, and then remove battery (-) terminal.
- Lift the vehicle.

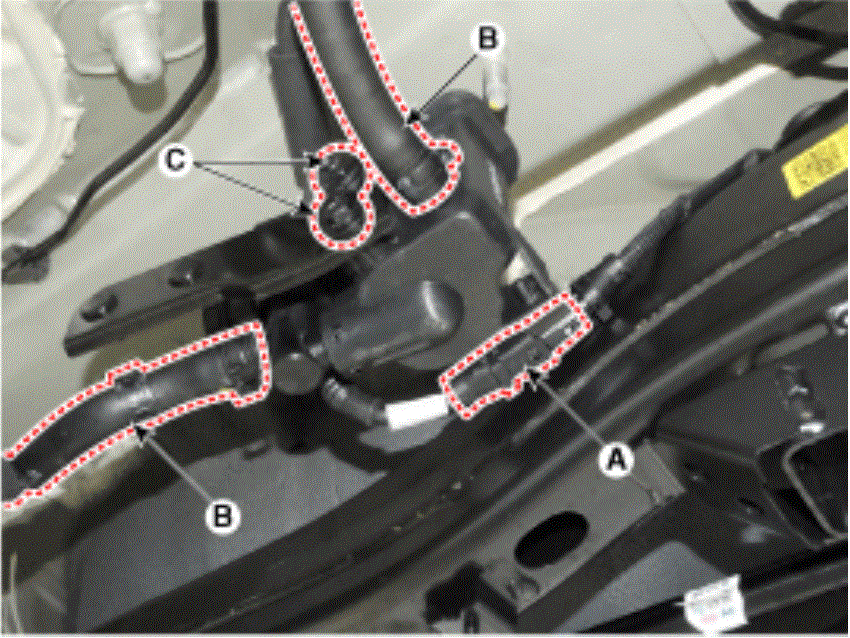

- Disconnect the canister close valve connector (A).
- Disconnect the ventilation hose (B).

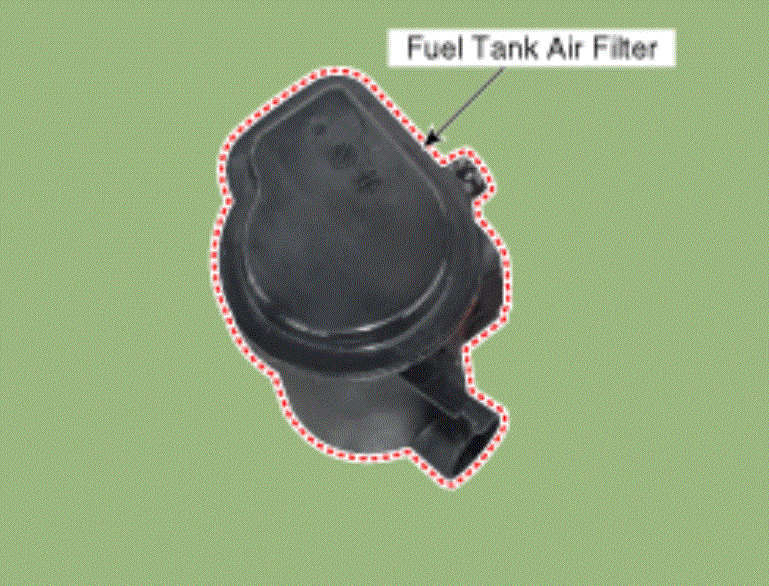

- Remove the fuel tank air filter after removing the mounting bolts (C).

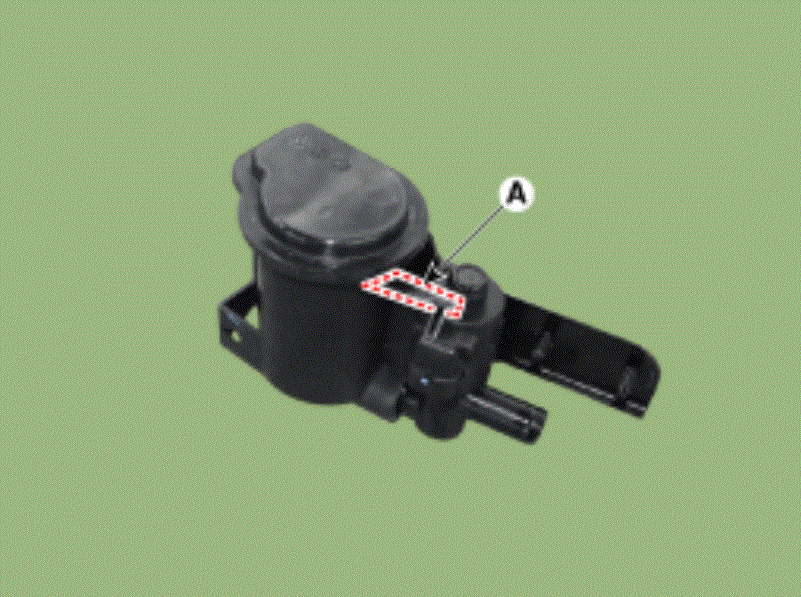

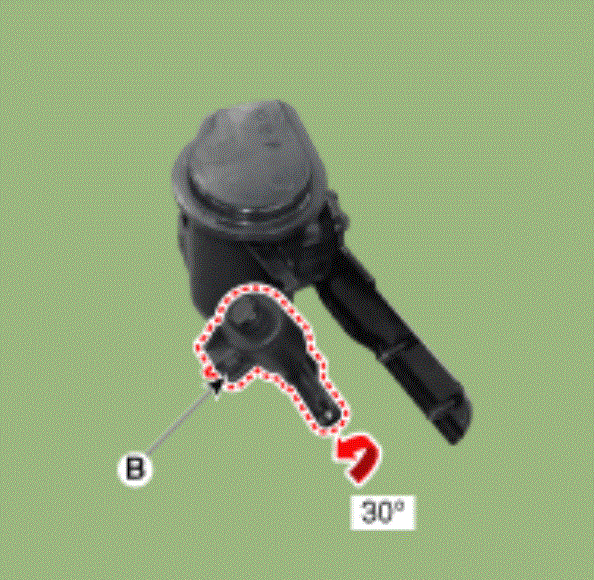

- Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
