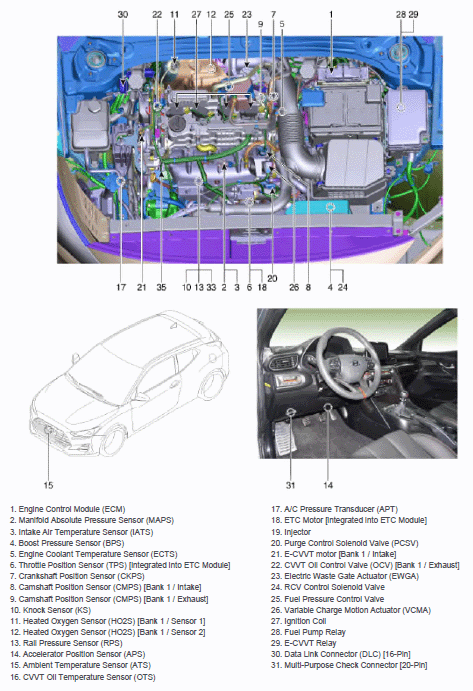

Components Location

Courtesy of HYUNDAI MOTOR AMERICA

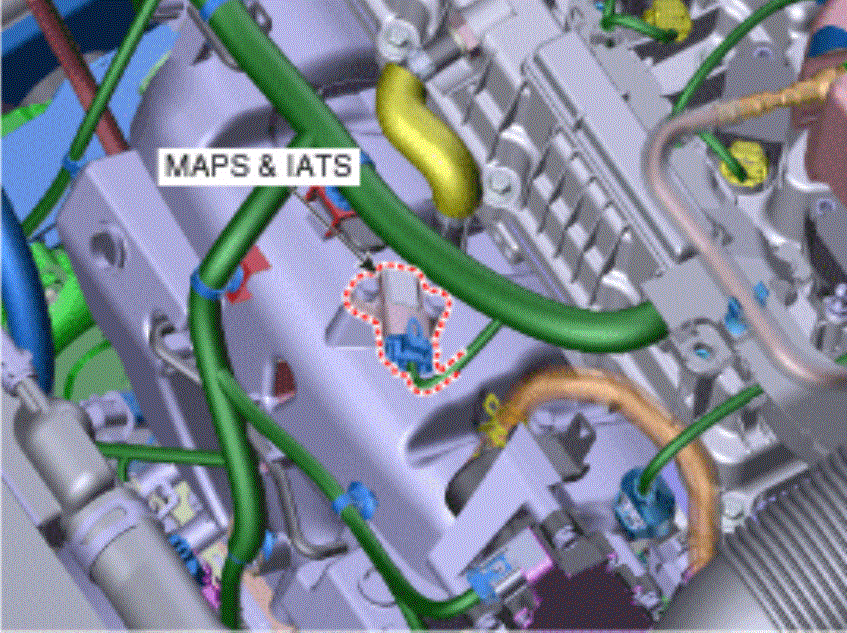

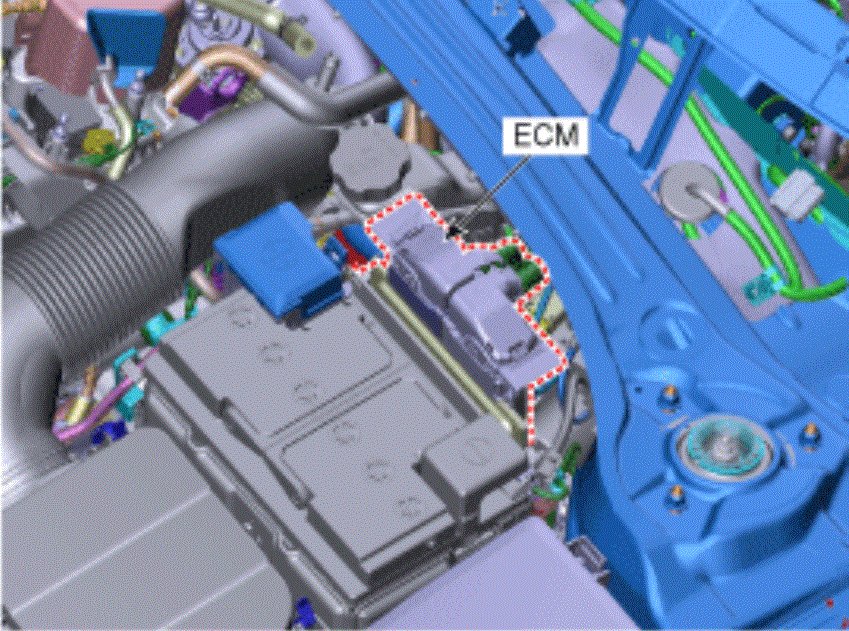

1. Engine Control Module (ECM)	2. Manifold Absolute Pressure Sensor (MAPS) 3. Intake Air Temperature Sensor (IATS)
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

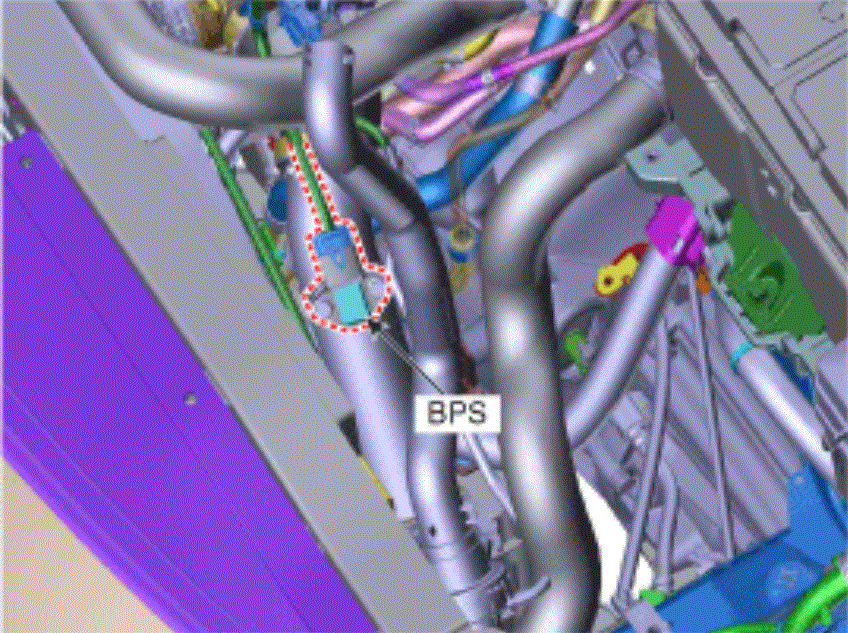

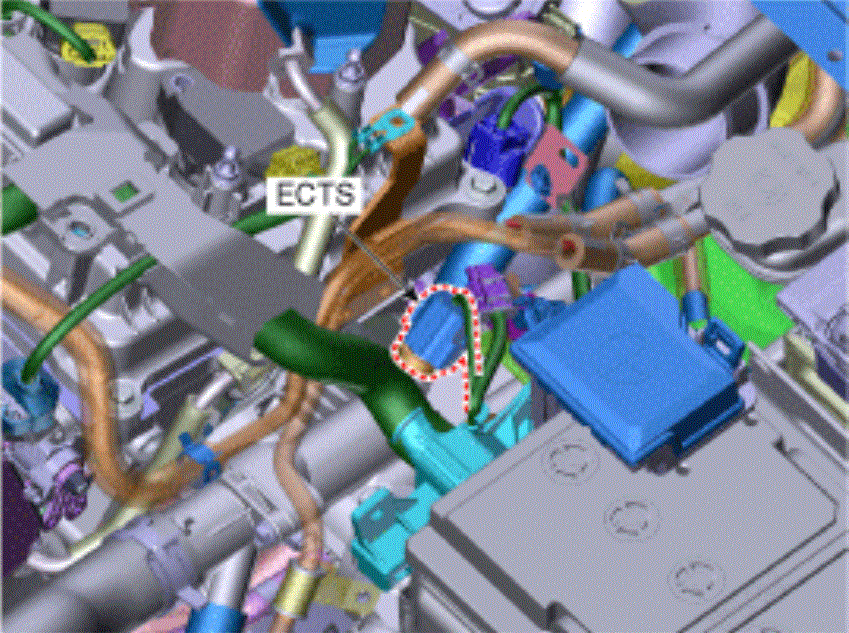

4. Boost Pressure Sensor (BPS)	5. Engine Coolant Temperature Sensor (ECTS)
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

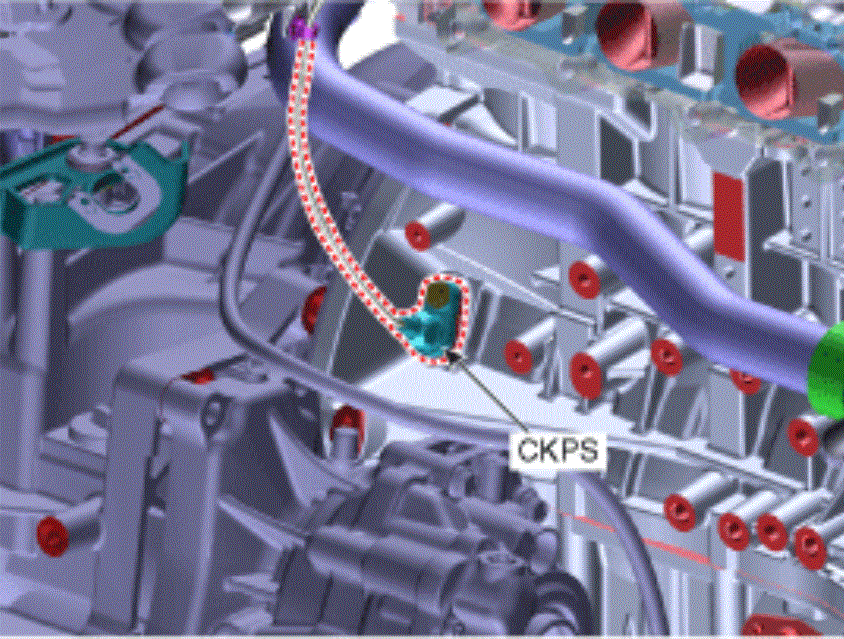

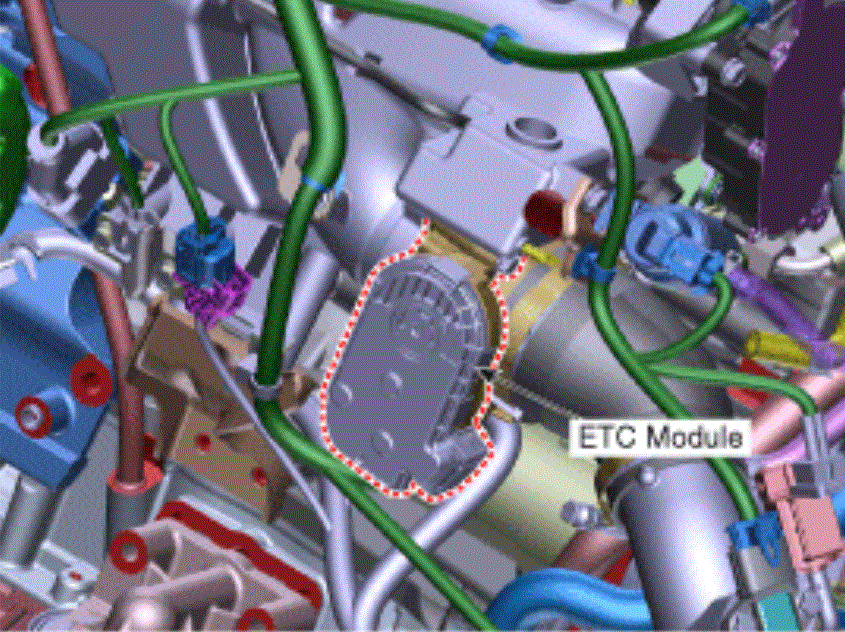

6. Throttle Position Sensor (TPS) 18. ETC Motor	7. Crankshaft Position Sensor (CKPS)
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

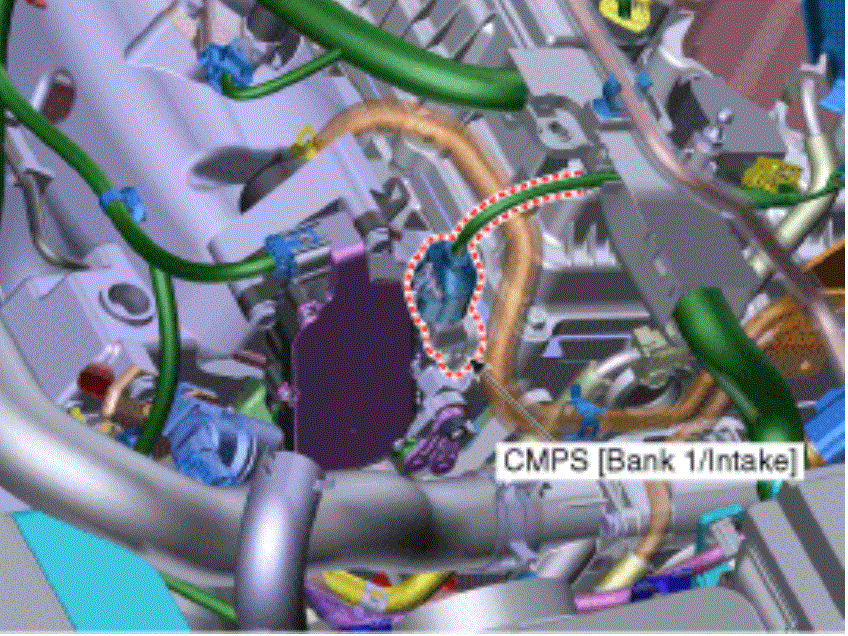

8. Camshaft Position Sensor (CMPS) [Bank 1/Intake]	9. Camshaft Position Sensor (CMPS) [Bank 1/Exhaust]
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

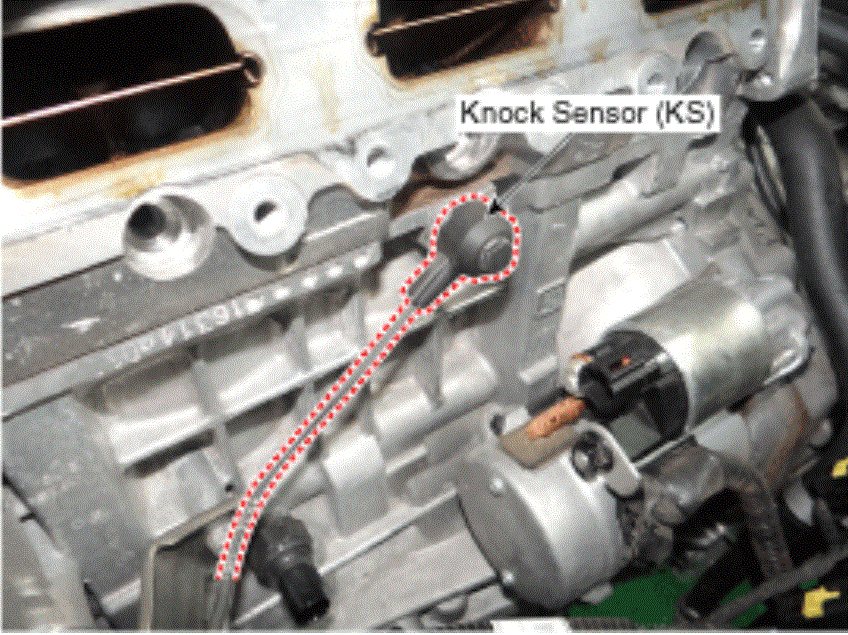

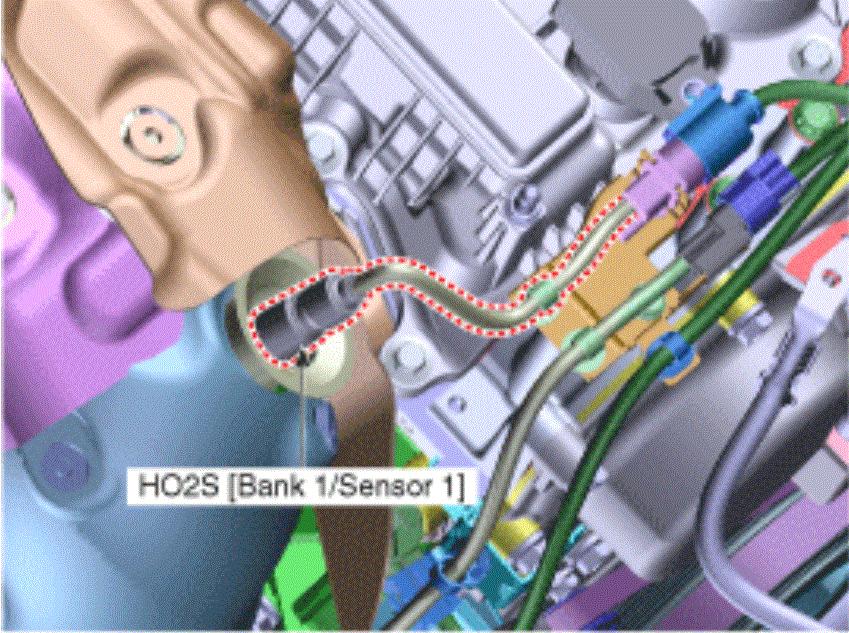

10. Knock Sensor (KS)	11. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

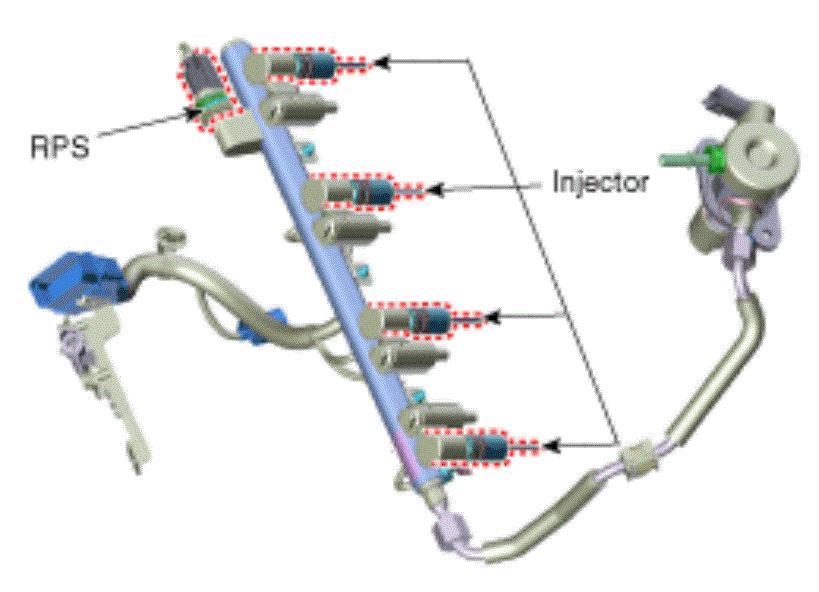

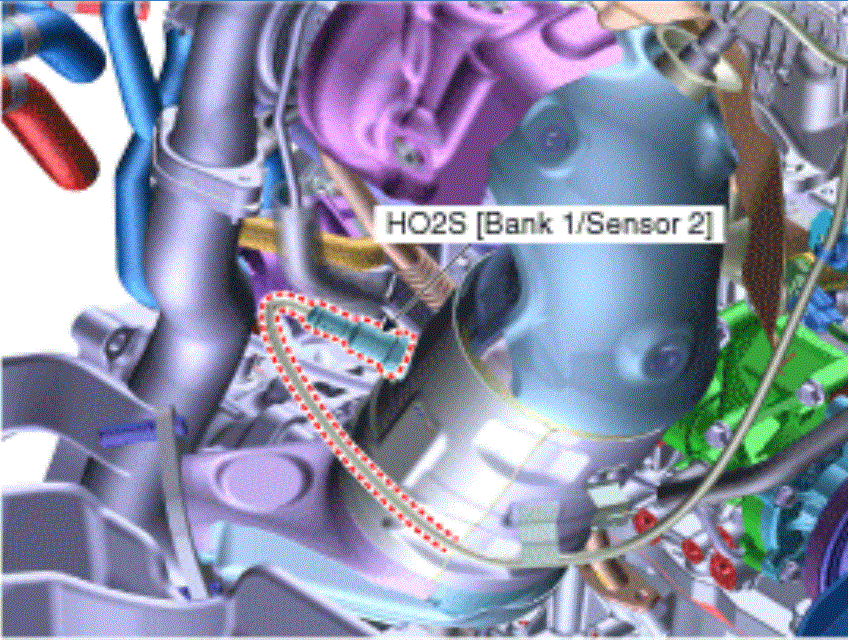

12. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]	13. Rail Pressure Sensor (RPS) 19. Injector
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

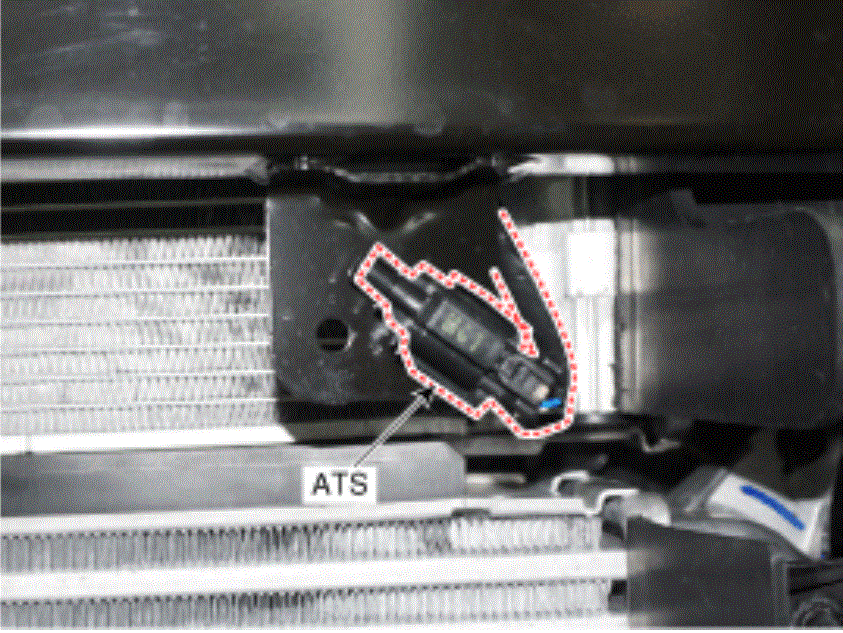

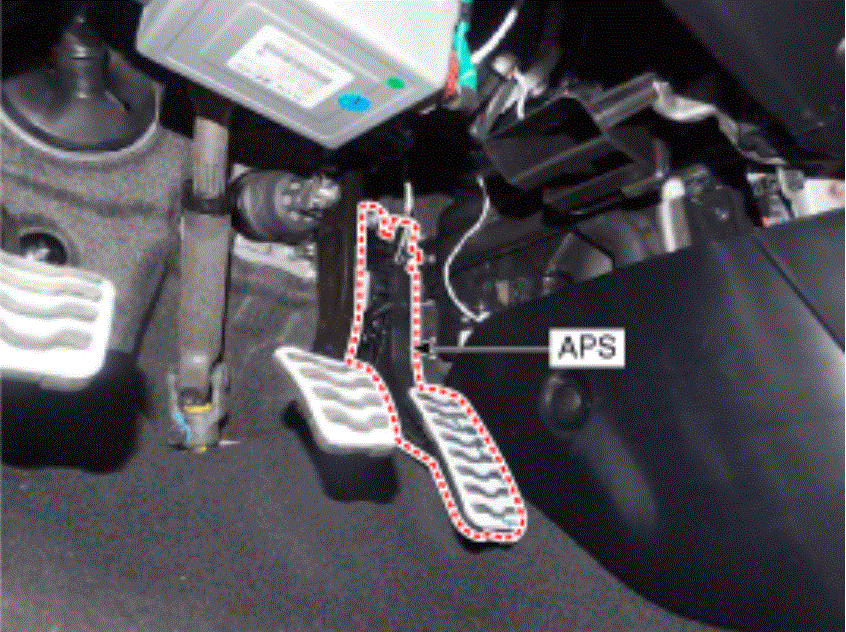

14. Accelerator Position Sensor (APS)	15. Ambient Temperature Sensor (ATS)
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

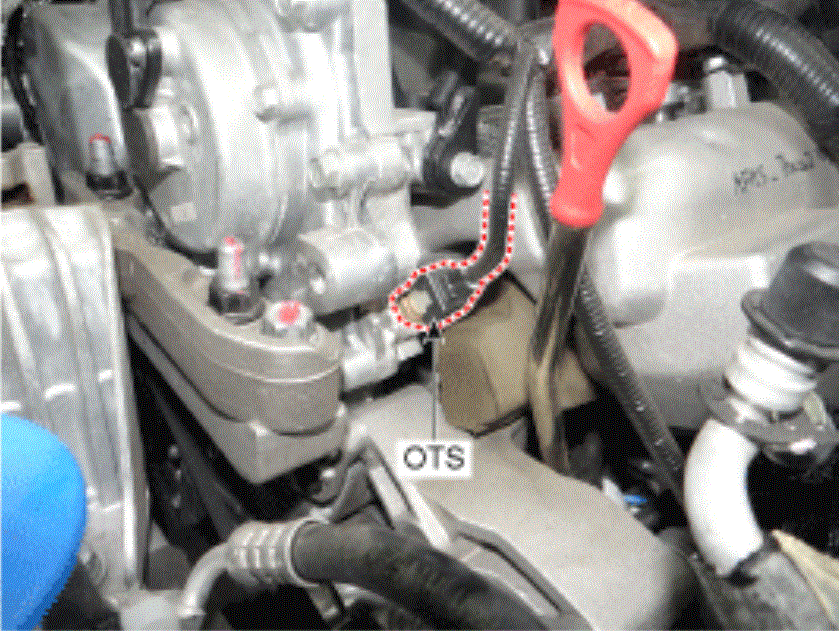

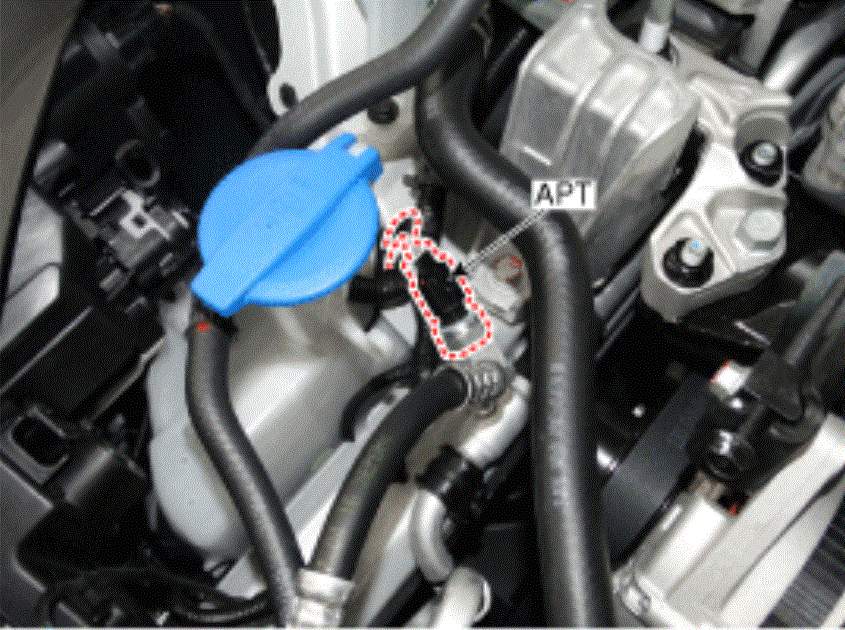

16. CVVT Oil Temperature Sensor (OTS)	17. A/C Pressure Transducer (APT)
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

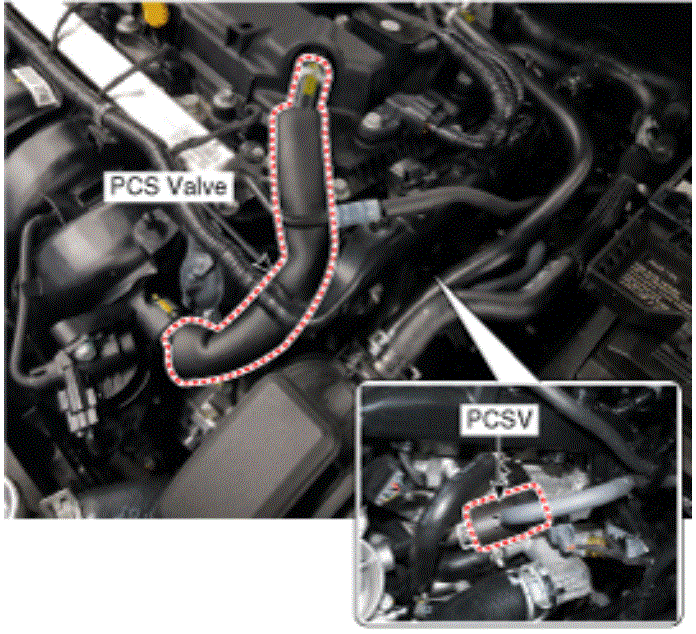

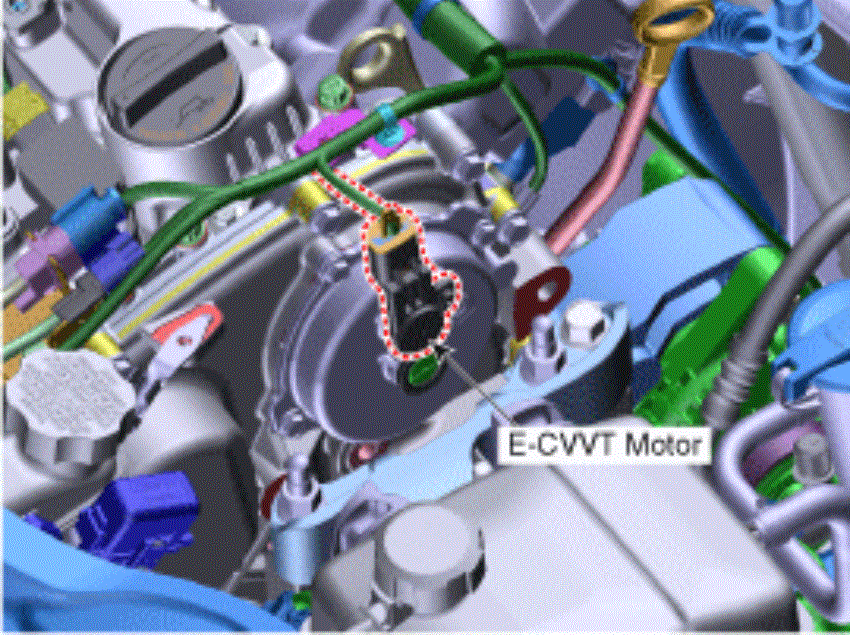

20. Purge Control Solenoid Valve (PCSV)	21. E-CVVT motor [Bank 1/Intake]
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

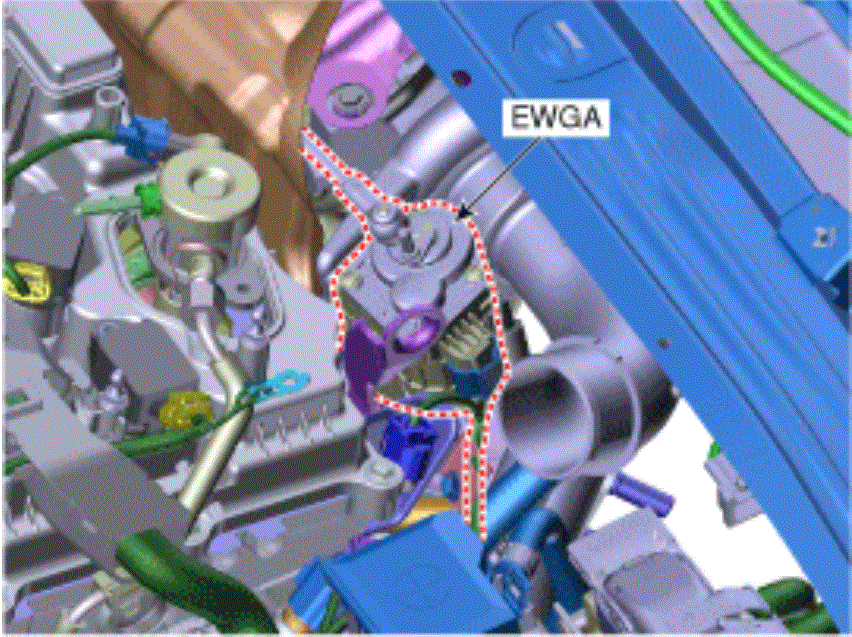

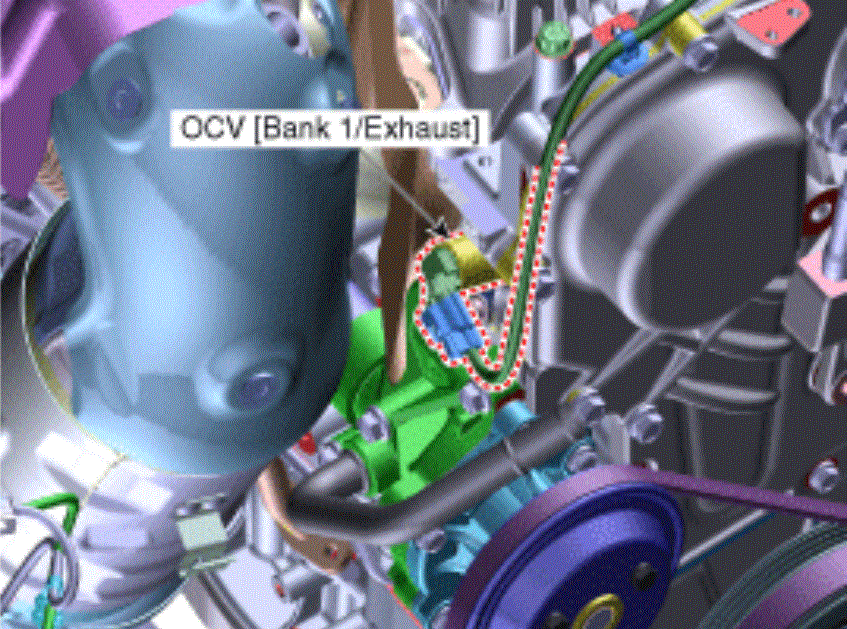

22. CVVT Oil Control Valve (OCV) [Bank 1/Exhaust]	23. Electric Waste Gate Actuator (EWGA)
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

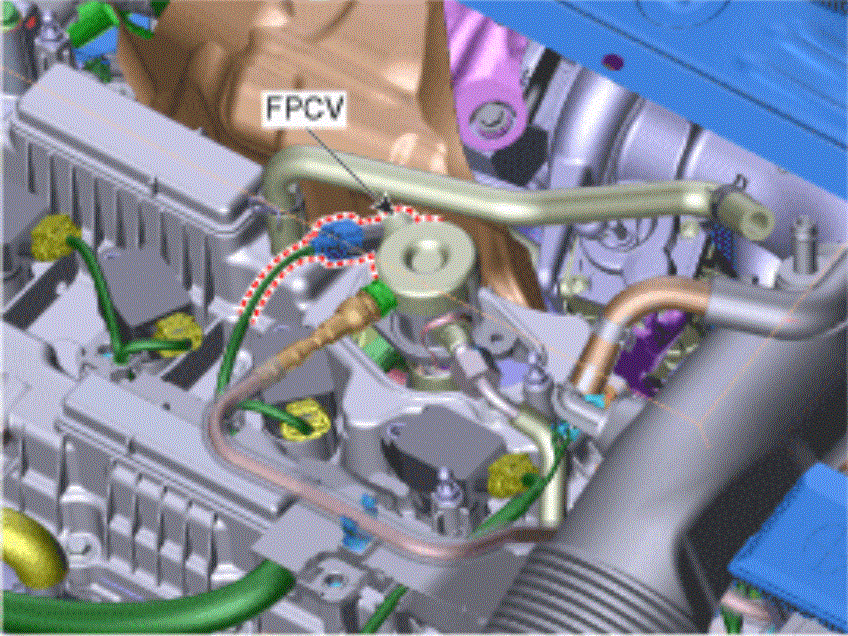

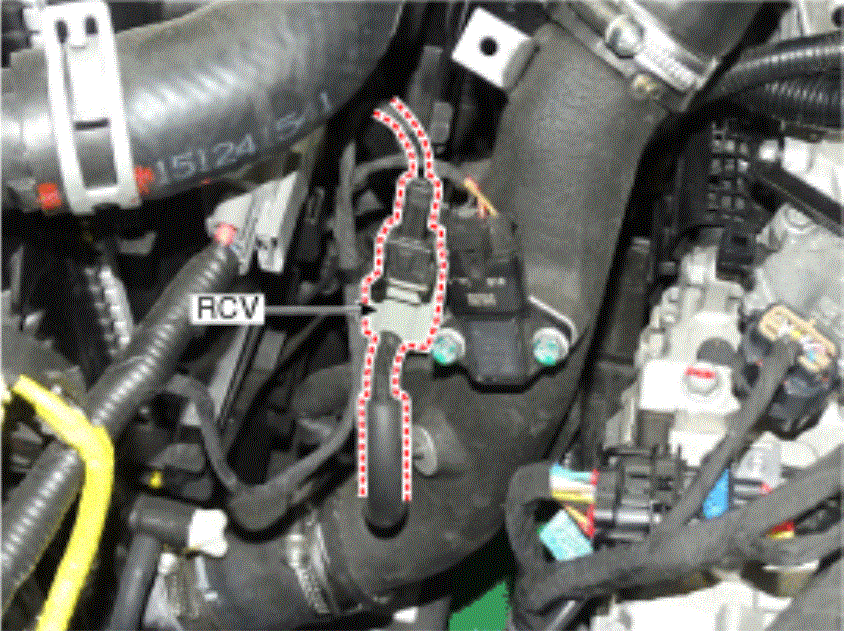

24. RCV Control Solenoid Valve	25. Fuel Pressure Control Valve
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

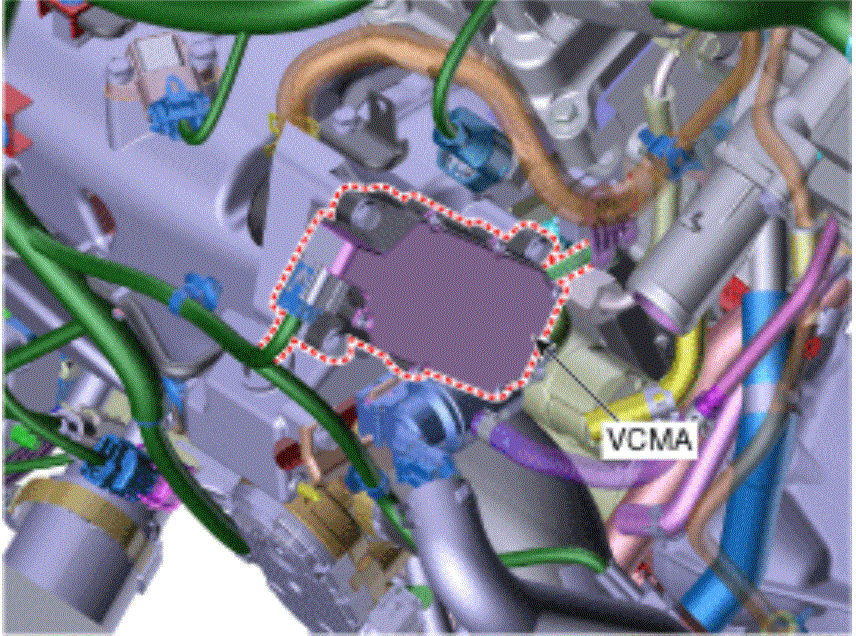

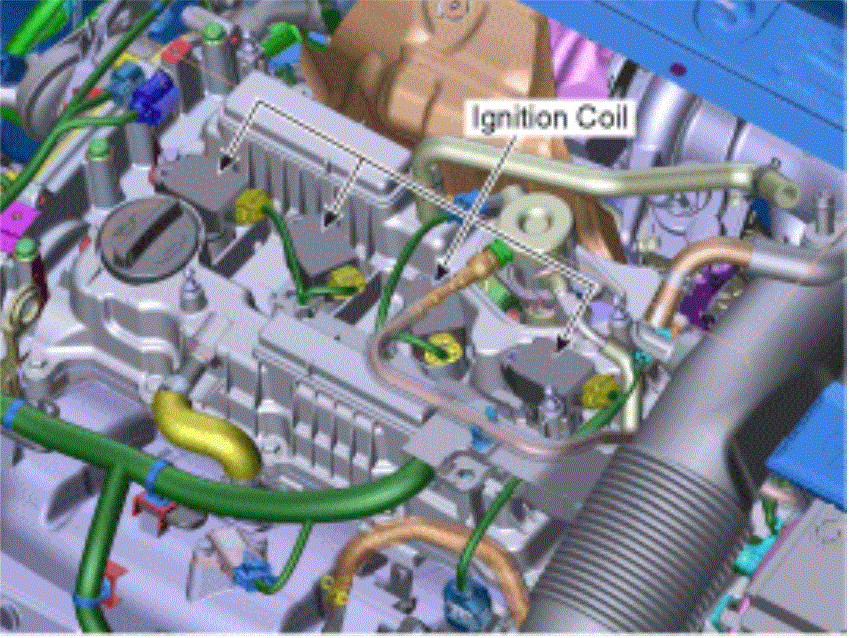

26. Variable Charge Motion Actuator (VCMA)	27. Ignition Coil
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

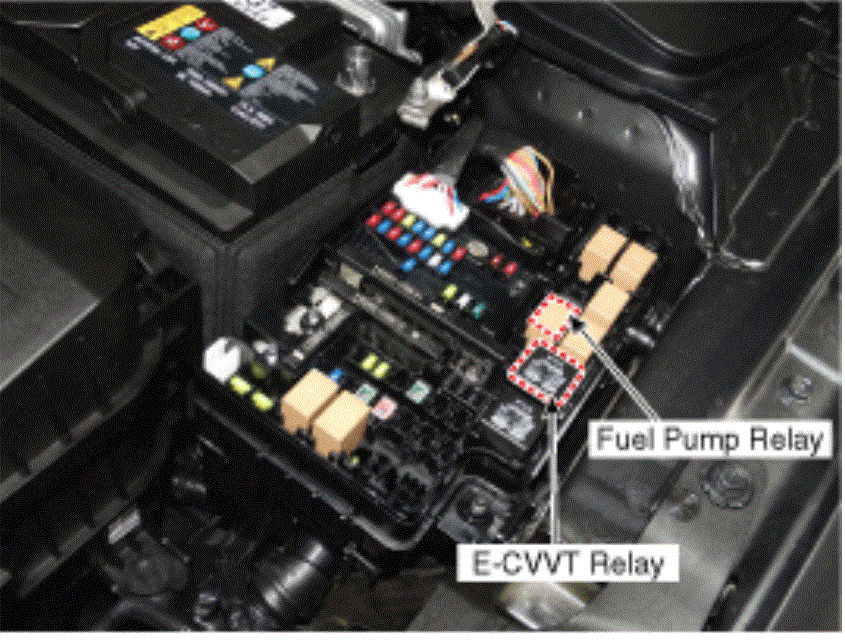

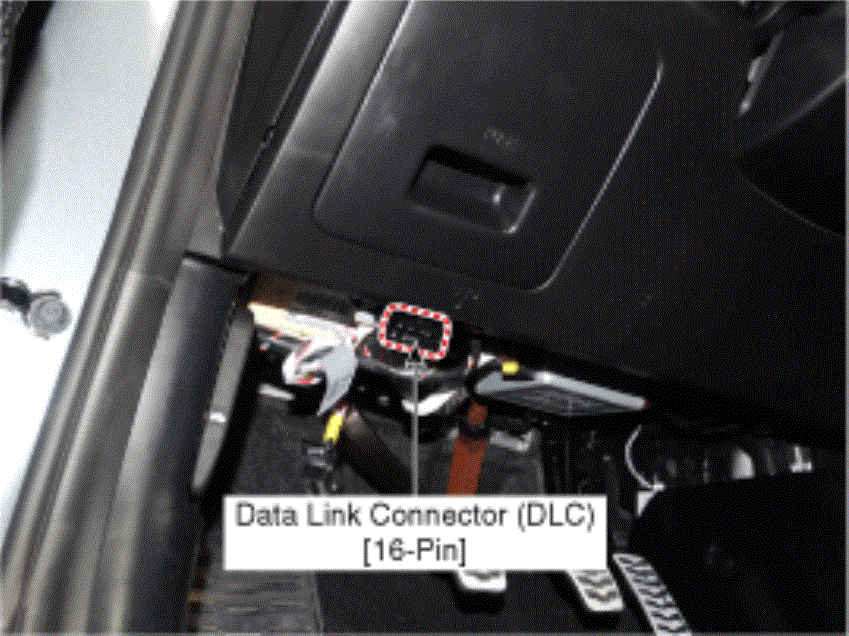

28. Fuel Pump Relay 29. E-CVVT Relay	31. Data Link Connector (DLC) [16-Pin]
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

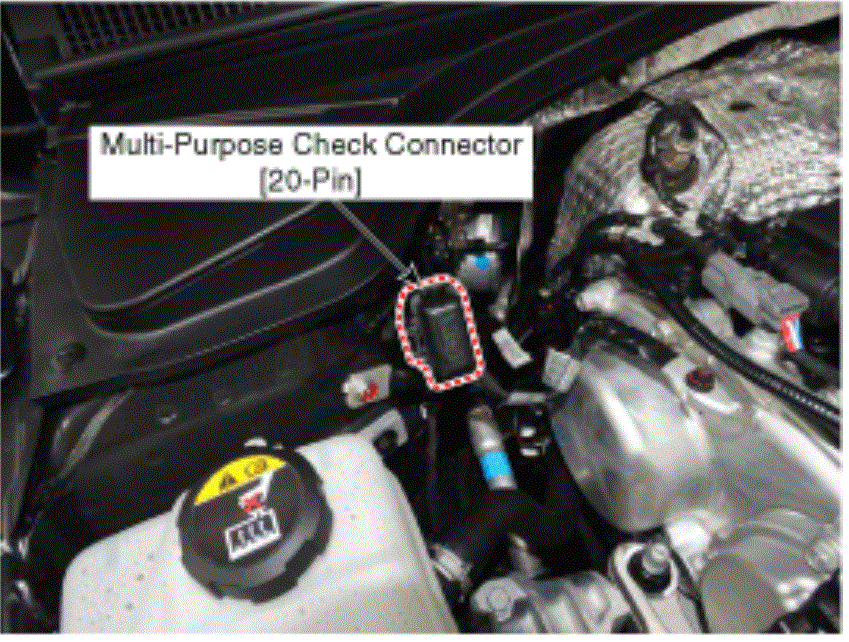

32. Multi-Purpose Check Connector [20-Pin]
Courtesy of HYUNDAI MOTOR AMERICA
