[Throttle Position Sensor (TPS)]

Throttle Angle (°)	Output Voltage (V)
Throttle Angle (°)	TPS1	TPS2
0	0.5	4.5
0.525	0.525	4.475
5	0.738	4.262
10	0.976	4.024
20	1.452	3.548
30	1.929	3.071
40	2.405	2.595
50	2.881	2.119
60	3.357	1.643
70	3.833	1.167
79.27	4.275	0.725
87.15	4.65	0.35

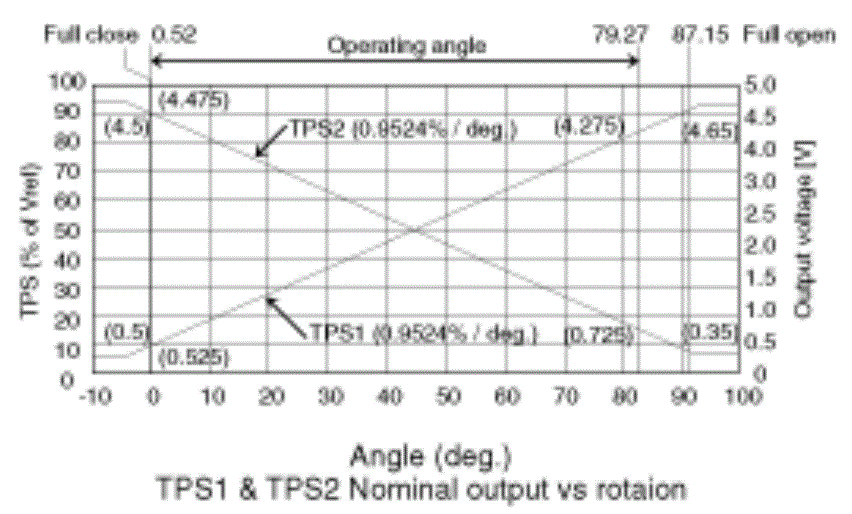

G15472053

Courtesy of HYUNDAI MOTOR AMERICA
