Repair Procedures: Removal

Information

• When DTC P2562/2563/2565 is set, perform the rod adjustment procedure first and check again that the same fault code is detected before replacing the Electric WGT Control Actuator.

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Remove the air cleaner assembly. (Refer to Engine Mechanical System - "AIR CLEANER ")
3. Remove the intercooner inlet pipe & hose assembly. (Refer to Engine Mechanical System - "INTERCOOLER ")

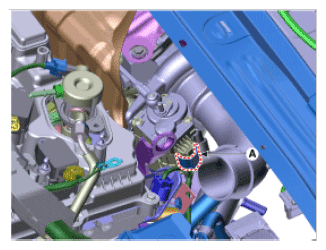

4. Disconnect the EWGA connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

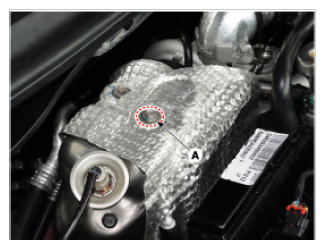

5. Remove the exhaust manifold heat protector installation blot (A).

   Courtesy of HYUNDAI MOTOR AMERICA

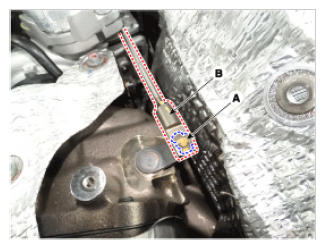

6. Remove the shaft link assembly (B) after removing the C-ring (A).

   Courtesy of HYUNDAI MOTOR AMERICA

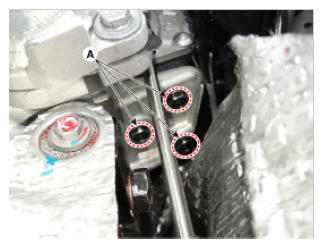

7. Remove the EWGA after removing the bolts (A).

   Courtesy of HYUNDAI MOTOR AMERICA

   CAUTION:

   • When carrying the turbo charger, do not hold the rod of the turbo charge to prevent bending the rod.
