[EWAG Position Sensor]

Position Output Voltage [V] Operating Angle [°] Range of Rod [mm], reference
Mechanical Close end stop Position (MCP) 4.8 0 0
Electrical Close end stop Position (ECP) 3.8 25.6 2.17
Electrical Open end stop Position (EOP) 1.2 92 15.42
Mechanical Open end stop Position (MOP) 0.5 110 19.22

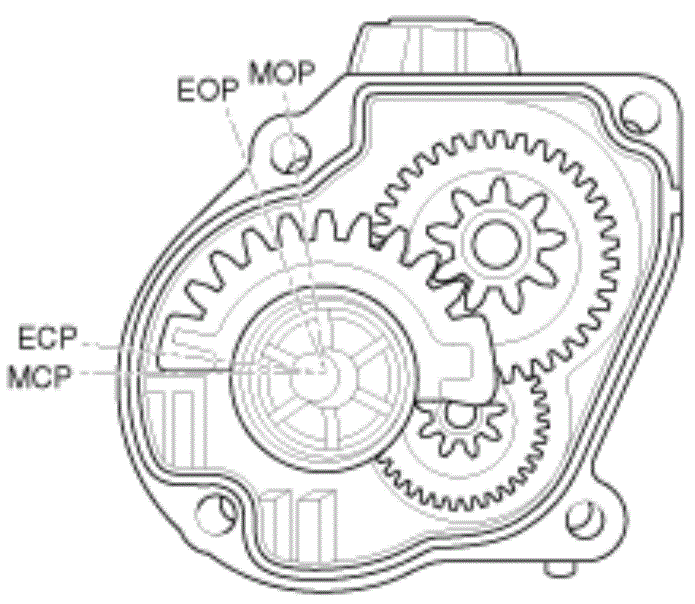

G15472166Courtesy of HYUNDAI MOTOR AMERICA

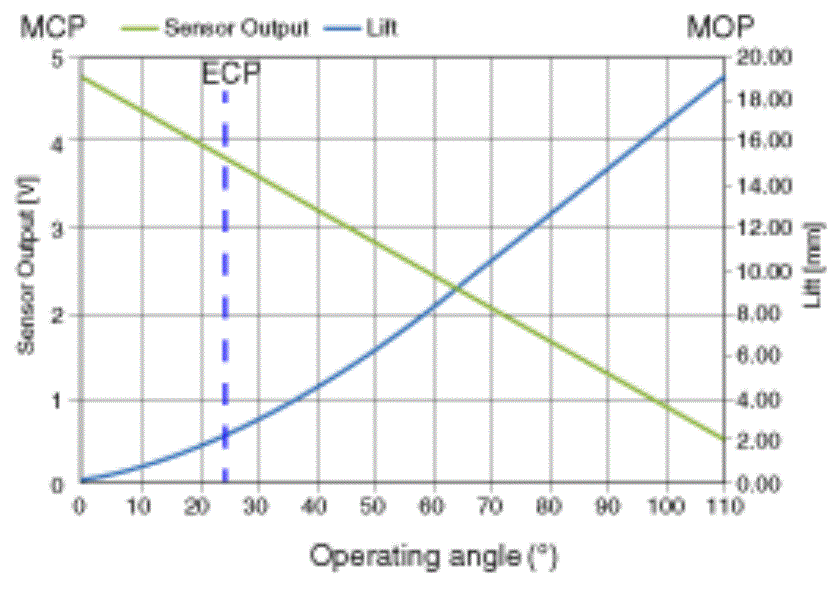

G15472167Courtesy of HYUNDAI MOTOR AMERICA
