ECM Terminal Input/Output signal

connector [A]

CONNECTOR DESCRIPTION (A)

Pin No Description Condition Type Level
1 -
2 -
3 -
4 -
5 Electric Waste Gate Actuator (EWGA) DC Motor output (-)
6 Electric Waste Gate Actuator (EWGA) DC Motor output (+)
7 -
8 -
9 -
10 -
11 -
12 -
13 -
14 -
15 Electric Waste Gate Actuator (EWGA) Feed beck signal
16 CVVT Oil Temperature Sensor (OTS) signal input
17 Engine Coolant Temperature Sensor (ECTS) signal input Idle Analog 0.5-4.5V (Idle: 1.02V)
18 Manifold Absolute Pressure Sensor (MAPS)#2 signal input     High: Battery voltage (B+)
19 Alternator "COM" PWM control output Idle Pulse Low: Max. 1.5V Frequency: 125 Hz Vpeak = 360 - 440V
20 Ignition Coil (Cylinder #2) control output Engine running Pulse 125<Frequency<1, 000 Hz (Idle: 333 Hz) Vpeak = 360 - 440V
21 Ignition Coil (Cylinder #3) control output Engine running Pulse 125<Frequency<1, 000 Hz (Idle: 333 Hz)
22 -
23 -
24 -
25 -
26 -
27 -
28 -
29 -
30 -
31 -
32 -
33 -
34 Sensor ground Idle DC -0.3 - 0.5V
35 -
36 Sensor ground Idle DC -0.3 - 0.5V
37 Sensor ground Idle DC -0.3 - 0.5V
38 Sensor ground Idle DC -0.3 - 0.5V
39 Rail Pressure Sensor (RPS) signal input Idle Analog -0.3 - 5.2V
40 -     Vpeak = 360 - 440V
41 Ignition Coil (Cylinder #4) control output Engine running Pulse 125<Frequency<1, 000 Hz (Idle: 333 Hz) Vpeak = 360 - 440V
42 Ignition Coil (Cylinder #1) control output Engine running Pulse 125<Frequency<1, 000 Hz (Idle: 333 Hz)
43 VCM Motor [+] control output
44 VCM Motor [-] control output
45 -
46 -
47 -
48 -
49 Sensor ground Idle DC -0.3 - 0.5V
50 Sensor ground Idle DC -0.3 - 0.5V
51 Sensor ground Idle DC -0.3 - 0.5V
52 -
53 -
54 Sensor ground Idle DC -0.3 - 0.5V
55 -
56 Sensor ground Idle DC -0.3 - 0.5V
57 -
58 Sensor ground Idle DC -0.3 - 0.5V
59 Sensor ground Idle DC -0.3 - 0.5V
60 Sensor ground Idle DC -0.3 - 0.5V
61 Sensor Shield Idle DC -0.3 - 0.5V
62 Sensor ground Idle DC -0.3 - 0.5V
63 Knock Sensor (KS) signal input Knocking Variable Frequency -0.3 - 0.3V
Normal 0V
64 -
65 E-CVVT Motor [-] control output
66 E-CVVT Motor [+] control output
67 E-CVVT Relay power
68 -
69 -
70 -
71 -
72 -
73 -
74 Camshaft Position Sensor (CMPS) [Bank 1/Exhaust] signal input Engine running Pulse High: 4.5 - 5.5V
Low: -0.3 - 0.5V
Frequency: 7 Hz (Idle), 25 Hz (3, 000 rpm)
75 Aternator "FR" signal input
76 -
77 Feedback signal input
78 -
79 -
80 Throttle Position Sensor (TPS) 2 signal input C.T Analog 4.2 - 5.0V
W.O.T 3.3 - 3.8V
81 Intake Temperature Sensor (IATS) signal input Idle Analog 0 - 5.0V (Idle: 2.55V)
82 Manifold Absolute Pressure Sensor (MAPS) #1 signal input Idle Analog 0.8 - 1.6V
(Idle: 1.37V)
83 Rc/Rp (Pumping Cell Voltage) Idle Analog Normal: 450 ± 50 mV
Rich: Max. Normal +150 mV
Lean: Min Normal - 150 mV
84 VS-/IP- (Common Ground for VS, IP) Idle Analog Reference for V_IP, V_N
85 -
86 E-CVVT Motor [-] control output
87 E-CVVT Motor [+] control output
88 E-CVVT Relay power
89 ETC Motor [+] control output Engine running Pulse High: Battery voltage (B+)
Low: Max.1.0V
90 ETC Motor [-] control output Engine running Pulse High: Battery voltage (B+)
Low: Max.1.0V
91 -
92 -
93 -
94 -
95 Crankshaft Position Sensor (CKPS) signal input Engine running Pulse High: 4.5 - 5.5V
Low: -0.3 - 0.5V
Frequency: 850 Hz (Idle), 3, 000 Hz (3, 000 rpm)
96 Camshaft Position Sensor (CMPS) [Bank 1/Intake] signal input Engine running Pulse High: 4.5 - 5.5V
Low: -0.3 - 0.5V
Frequency: 7 Hz (Idle), 25 Hz (3, 000 rpm)
97 -
98 -
99 Sensor power (+5V) IG OFF DC Max. 0.5V
IG ON 4.75 - 5.25V
100 Throttle Position Sensor (TPS) 1 signal input C.T Analog 0.3 - 0.9V
W.O.T 1.5 - 3.0V
101 Sensor power (+5V) IG OFF DC Max. 0.5V
IG ON 4.75 - 5.25V
102 Sensor power (+5V) IG OFF DC Max. 0.5V
IG ON 4.75 - 5.25V
103 Sensor power (+5V) IG OFF DC Max. 0.5V
IG ON 4.75 - 5.25V
104 Rc (Compensative Resistance) Idle Analog | Rc-Rc/Rp | <± 0.1V
105 VS+ (NERNST Cell Voltage) Idle Analog Normal: 450 ± 50 mV
Rich: Max. Normal +150 mV
Lean: Min Normal -150 mV

Connector [B]

CONNECTOR DESCRIPTION (B)

Pin No Description Condition Type Level
1 ECM ground Idle DC -0.3 - 0.5V
2 ECM ground Idle DC -0.3 - 0.5V
3 Battery power (B+) IG OFF DC Max. 1.0V
IG ON Battery voltage (B+)
4 ECM ground Idle DC -0.3 - 0.5V
5 Battery power (B+) IG OFF DC Max. 1.0V
IG ON Battery voltage (B+)
6 Battery power (B+) IG OFF
IG ON
DC Max. 1.0V Battery voltage (B+)
7 -
8 Flex Ray communication [High] signal input
9 -
10 Brake switch [Test] signal input Brake OFF
Brake ON
DC Battery voltage (B+)
Max. 0.5V
11 -
12 -
13 Electric load signal input Lamp OFF
Lamp ON
DC Battery voltage (B+)
-0.3 - 0.5V
14 Immobilizer communication line
15 -
16 Main relay control output Relay OFF
Relay ON
DC Battery voltage (B+)
-0.3 - 1.2V
17 -     High: Battery voltage (B+)
18 Purge Control Solenoid Valve (PCSV) control output Inactive Active Pulse Low: Max. 1.0V
Vpeak: 42.0-60.0V
Frequency: 20 Hz
19 E-CVVT Relay control output
20 -
21 -

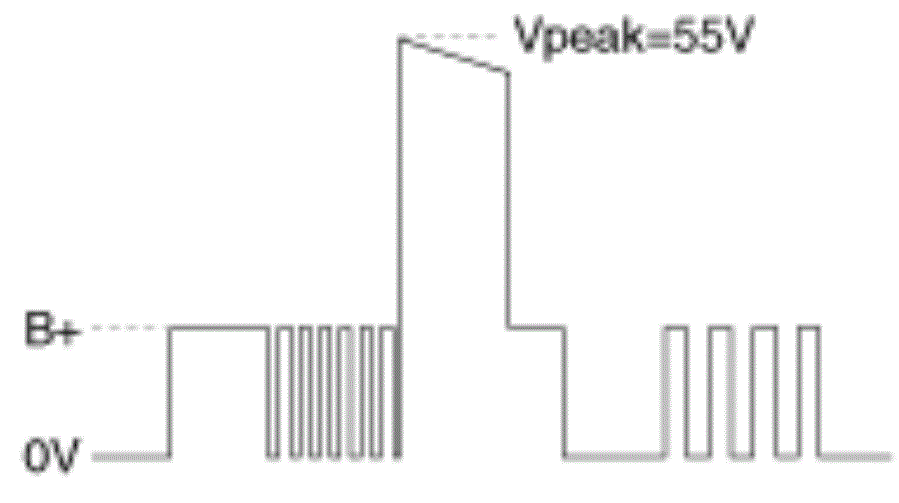

22 Injector (Cylinder #2) [High] control output Engine running PWM
G15472037Courtesy of HYUNDAI MOTOR AMERICA

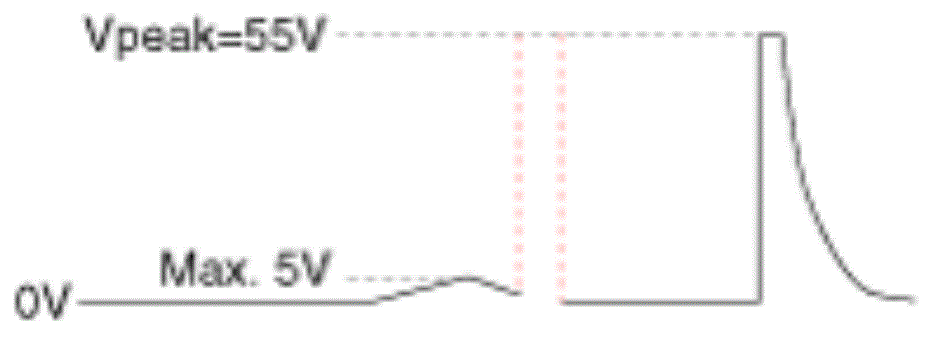

23 Injector (Cylinder #2) [Low] control output Engine running Pulse
G15472038Courtesy of HYUNDAI MOTOR AMERICA
24 -
25 Flex Ray communication [Low] signal input
26 -
27 Brake switch [Lamp] signal input Brake OFF
Brake ON
DC Max. 0.5V Battery voltage (B+)
28 -
29 -
30 A/C Pressure Transducer (APT) signal input
31 -
32 LIN communication signal input
33 Fuel pump relay control output Relay OFF
Relay ON
DC Battery voltage (B+) -0.3 - 1.2V
34 Start control output Relay OFF
Relay ON
DC Battery voltage (B+) -0.3 - 1.2V
35 Cooling fan relay [High] control output Relay OFF
Relay ON
DC Battery voltage (B+) Max. 1.0V
36 -
37 -
38 -

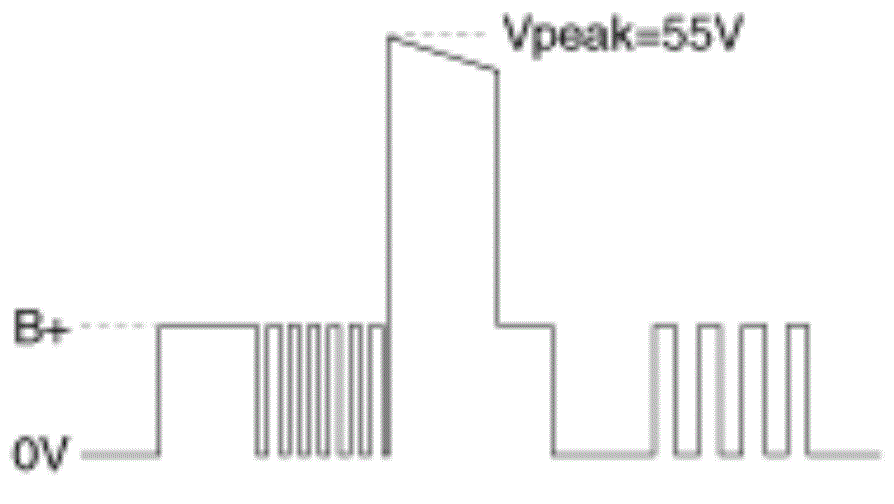

39 Injector (Cylinder #3) [High] control output Engine running PWM
G15472039Courtesy of HYUNDAI MOTOR AMERICA

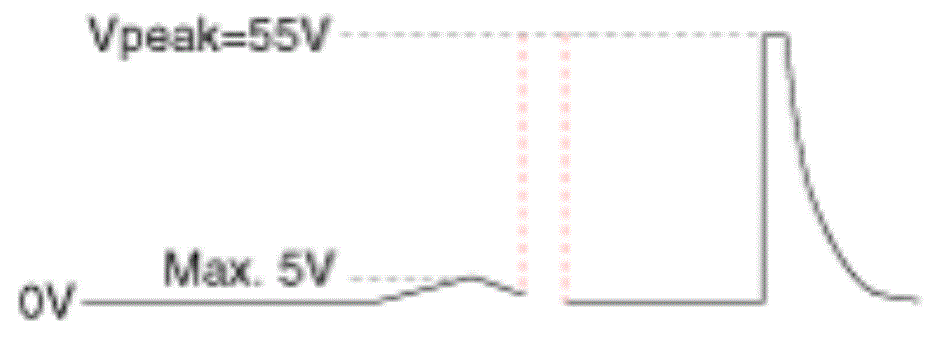

40 Injector (Cylinder #3) [Low] control output Engine running Pulse
G15472040Courtesy of HYUNDAI MOTOR AMERICA
41 Battery power (B+) IG OFF
IG ON
DC Max. 1.0V Battery voltage (B+)
42 -
43 -
44 Sensor ground Idle DC -0.3 - 0.5V
45 -
46 Sensor ground Idle DC -0.3 - 0.5V
47 Sensor ground Idle DC -0.3 - 0.5V
48 -
49 -
50 Sensor ground Idle DC -0.3 - 0.5V
51 -
52 -
53 -     High: Battery voltage (B+)
54 Engine speed signal output Engine running Frequency Low: -0.3 - 1.0V Frequency: 21 Hz (Idle), 100 Hz (3, 000 rpm)
55 -

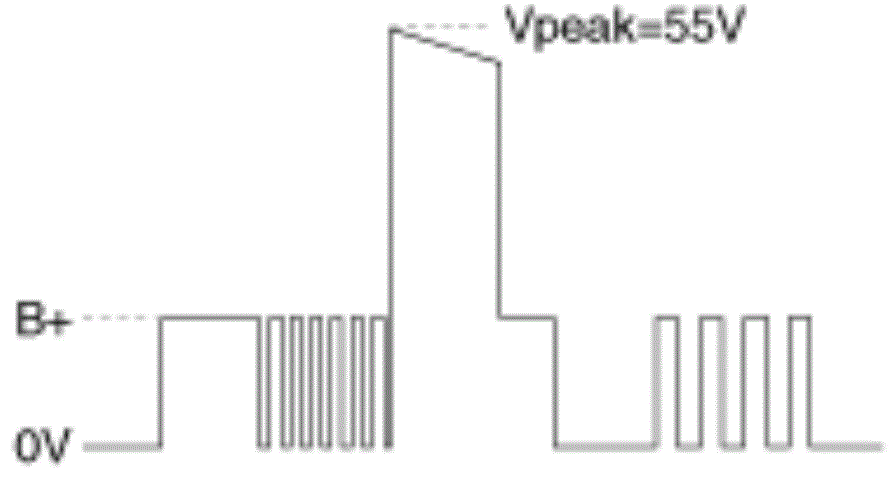

56 Injector (Cylinder #4) [High] control output Engine running PWM
G15472041Courtesy of HYUNDAI MOTOR AMERICA

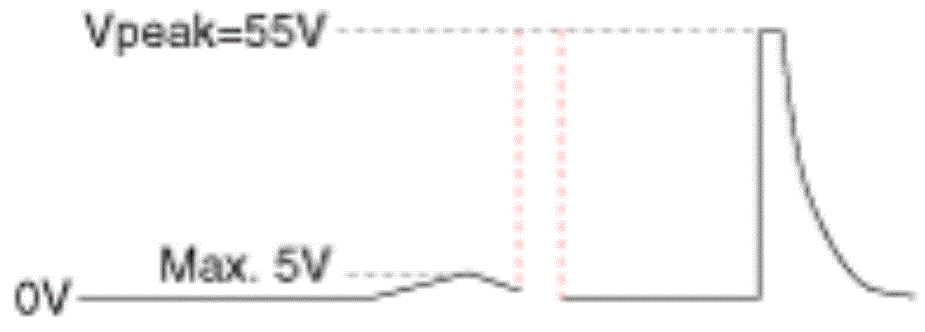

57 Injector (Cylinder #4) [Low] control output Engine running Pulse
G15472042Courtesy of HYUNDAI MOTOR AMERICA
58 Heated Oxygen Sensor [Bank 1/Sensor 2] signal input Idle DC Max: 0.6 - 1.0V
Min: Max. 0.4V
59 -
60 CAN [Low] Recessive Dominant Pulse 2.0 - 3.0V
2.75 - 4.5V
61 starter signal input S/W OFF
S/W ON
DC -0.3 - 0.5V
Battery voltage (B+)
62 -
63 -
64 Accelerator Position Sensor (APS) 2 signal input C.T W.O.T Analog Max. 1.0V
1.5 - 3.0V
65 Accelerator Position Sensor (APS) 1 signal input C.T W.O.T Analog Max. 1.0V
Min 4.0V
66 -
67 -
68 -
69 -
70 -
71 Cooling fan relay [Low] control output Relay OFF
Relay ON
DC Battery voltage (B+)
-0.3 - 1.2V
72 Variable Intake Solenoid Valve (VIS) control output Active Inactive DC Max. 1.0V
Battery voltage (B+)

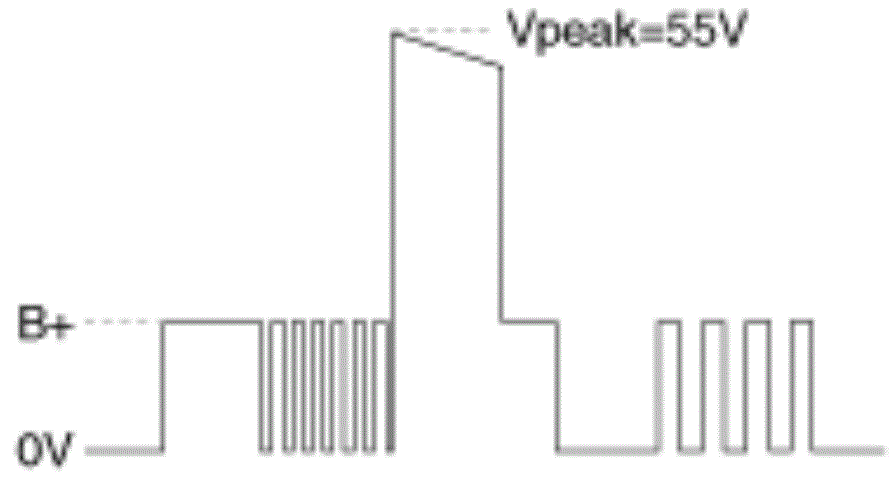

73 Injector (Cylinder #1) [High] control output Engine running PWM
G15472043Courtesy of HYUNDAI MOTOR AMERICA

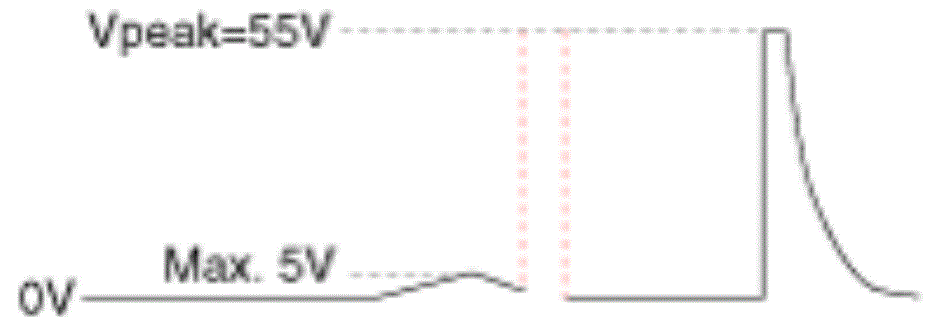

74 Injector (Cylinder #1) [Low] control output Engine running Pulse
G15472044Courtesy of HYUNDAI MOTOR AMERICA
75 Battery power (B+) IG OFF
IG ON
DC Max. 1.0V
Battery voltage (B+)
76 -
77 CAN [High] Recessive
Dominant
Pulse 2.0 - 3.0V
2.75 - 4.5V
78 Vehicle signal input
79 Sensor power (+5V) IG OFF
IG ON
DC Max. 0.5V
4.75 - 5.25V
80 -
81 Sensor power (+5V) IG OFF
IG ON
DC Max. 0.5V
4.75 - 5.25V
82 Sensor power (+5V) IG OFF
IG ON
DC Max. 0.5V
4.75 - 5.25V
83 -
84 Fuel Level Sender
85 -
86 CVVT Oil Control Valve (OCV) [Bank 1/Intake] control output Idle Pulse High: Battery voltage (B+)
Low: -0.3 - 1.0V
Frequency: 300 Hz
87 -
88 Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] Heater control output Engine running Pulse High: Battery voltage (B+)
Low: -0.3 - 1.0V
Frequency: 8 - 10Hz
89 Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] Heater control output Engine running Pulse Duty: 0 - 100%
High: Battery voltage (B+)
Low: -0.3 - 1.0V
Frequency: 8 - 10 Hz
Duty: 0 - 100%

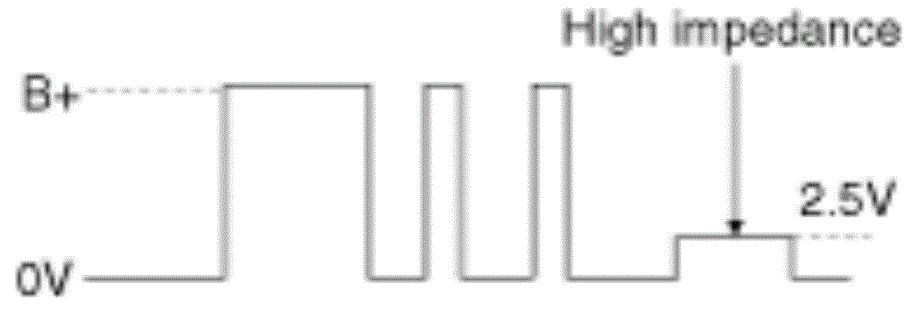

90 Fuel Pressure Control Valve [High] control output Engine running PWM
G15472045Courtesy of HYUNDAI MOTOR AMERICA

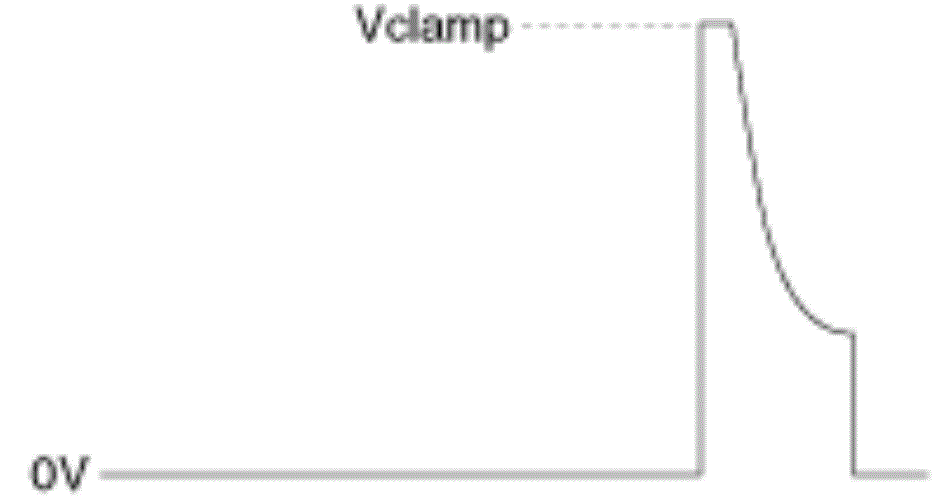

91 Fuel Pressure Control Valve [Low] control output Engine running Pulse
G15472046Courtesy of HYUNDAI MOTOR AMERICA
