Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

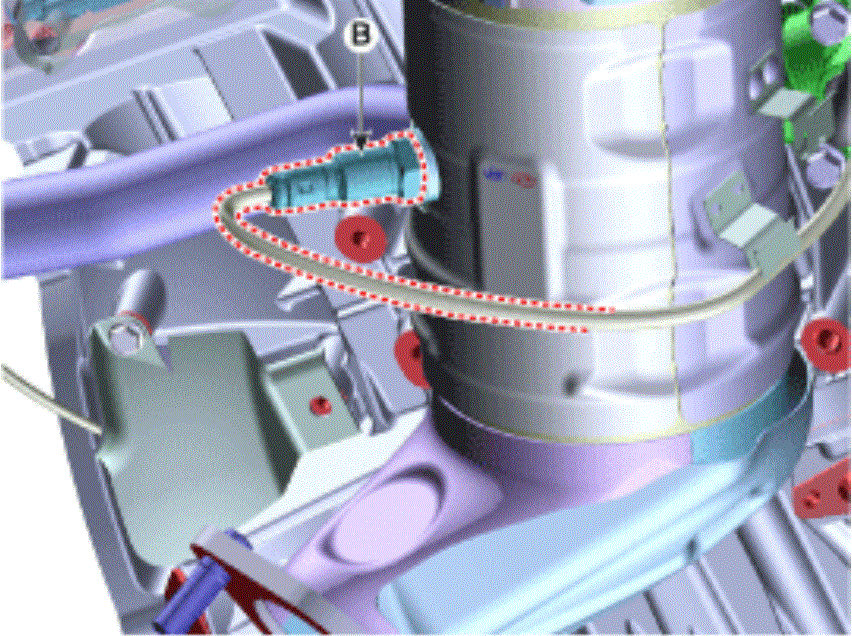

  2. Disconnect the connector (A) and then remove the sensor (B).
NOTE:

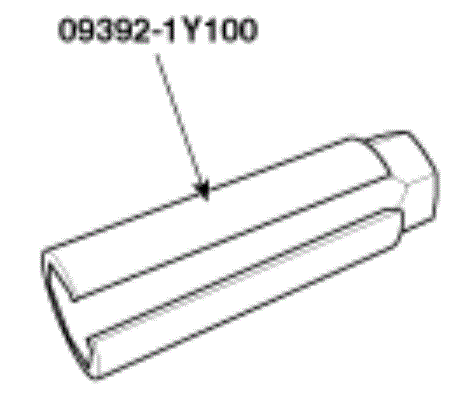

  • Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.
G15472100Courtesy of HYUNDAI MOTOR AMERICA

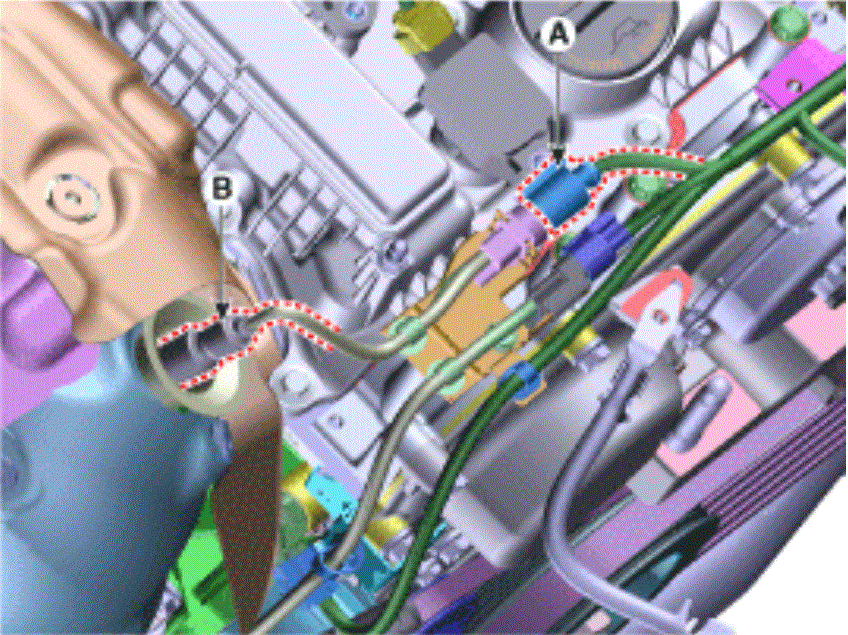

[Bank 1/Sensor 1]

G15472101Courtesy of HYUNDAI MOTOR AMERICA

[Bank 1/Sensor 2]

G15472102Courtesy of HYUNDAI MOTOR AMERICA
G15472103Courtesy of HYUNDAI MOTOR AMERICA
