Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the intake manifold. (Refer to Engine Mechanical System - "INTAKE MANIFOLD ")
- Remove the delivery pipe & injector assembly. (Refer to Fuel Delivery System - "DELIVERY PIPE ")

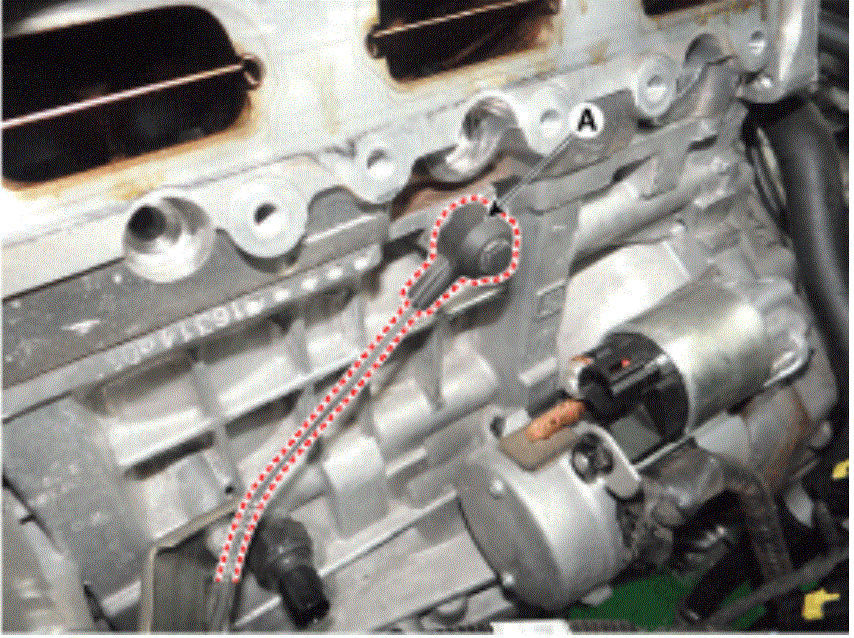

- Remove the knock sensor (A) after loosening the mounting bolt from the cylinder block.
