Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

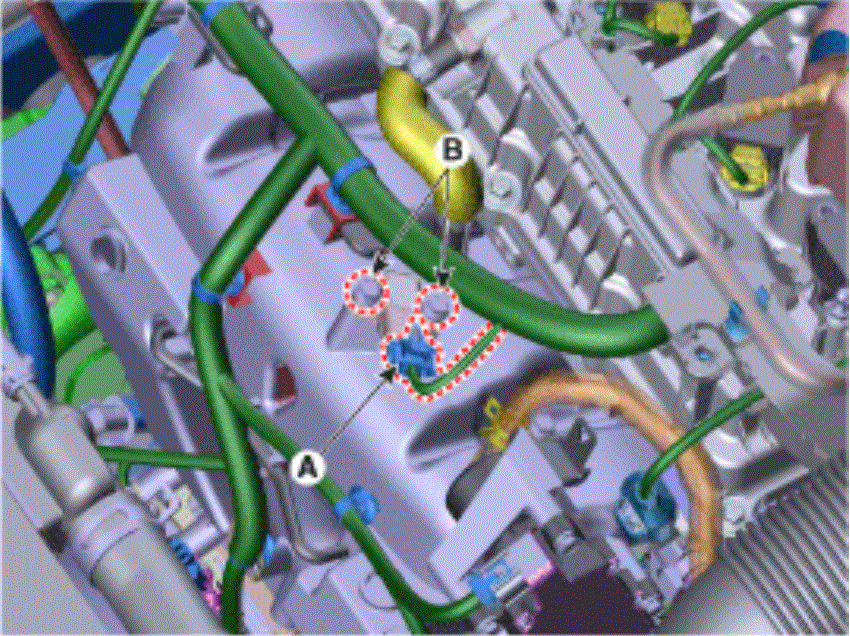

  2. Disconnect the MAPS & IATS connector (A).
  3. Remove the installation bolt (B), and then remove the sensor from the surge tank.
G15472062Courtesy of HYUNDAI MOTOR AMERICA
