Manifold Absolute Pressure Sensor (MAPS): Specifications: Specification

Item	Specification
Rated Voltage (V)	5
Pressure (kPa)	32.5 - 284
Operating Voltage (V)	4.5 - 5.5

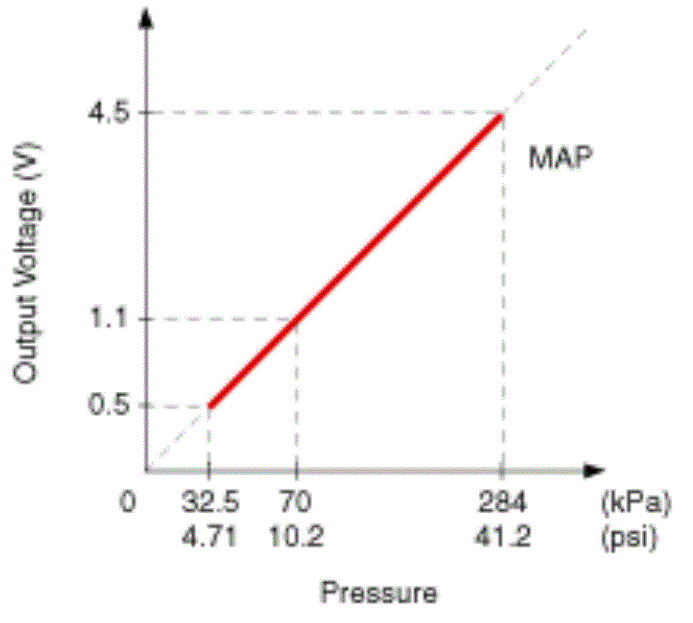

Pressure [kPa (kgf/cm2 , psi)]	Output Voltage (V)
32.5 (0.33, 4.71)	0.5
70 (0.71, 10.2)	1.1
270 (2.75, 39.2)	4.3
284 (2.89, 41.2)	4.5

Courtesy of HYUNDAI MOTOR AMERICA
