Description & Operation: Description

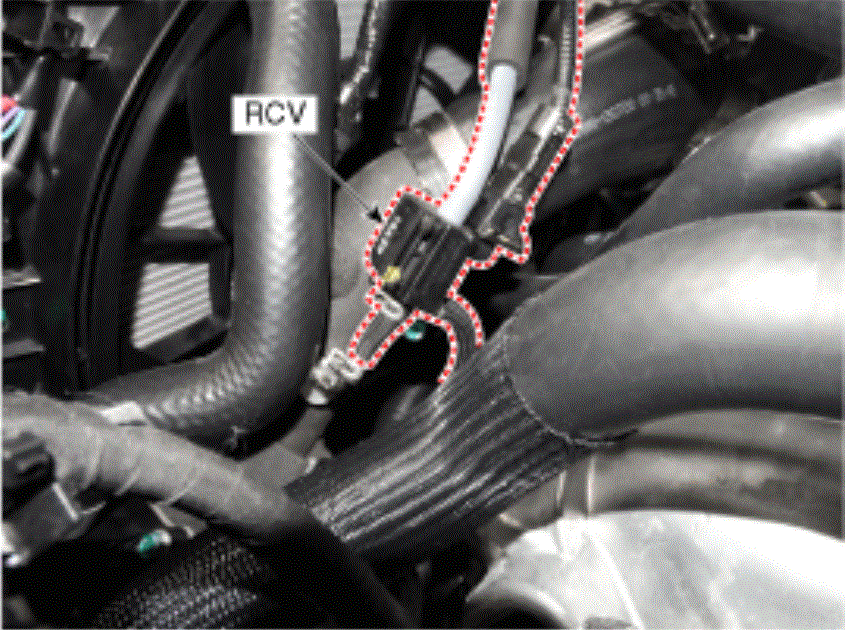

RCV (Recirculation Valve) Control Solenoid Valve is installed on the inter cooler inlet pipe and operates the RCV actuator which controls the by-pass passage of the turbo charger compressor. When the throttle is closed, while the engine is running at cruise rpm (tip-out), the turbo charger boost pressure raises rapidly. The pressure wave strikes a compressor blades causing a knocking noise. To prevent this the ECM opens the recirculation valve which allows excessive boost pressure to vent back to the air cleaner side of the turbo charger compressor.
