Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Release the residual pressure in fuel line. (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE
")CAUTION:
- When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the diagnostic tool after completion of "Release Residual Pressure in Fuel Line" work.
- Remove the intake manifold. (Refer to Engine Mechanical System - "INTAKE AND EXHAUST SYSTEM ")

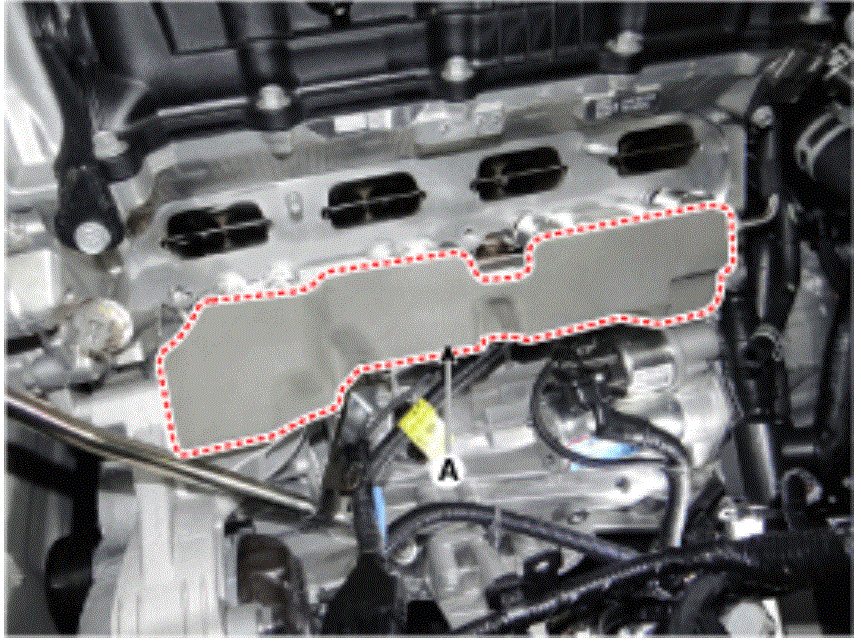

- Remove the delivery pipe foam (A).

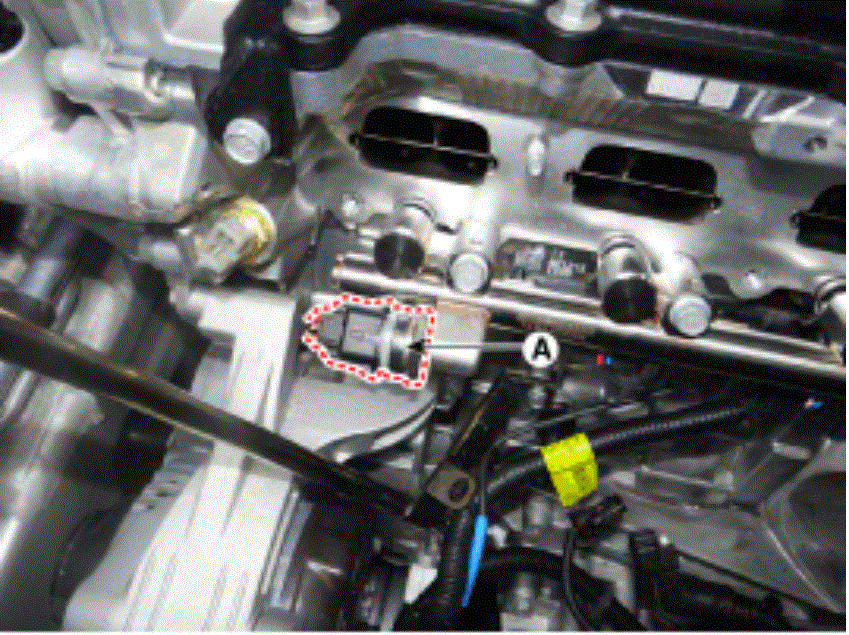

- Disconnect the rail pressure sensor connector and then remove the sensor (A) from the delivery pipe.
