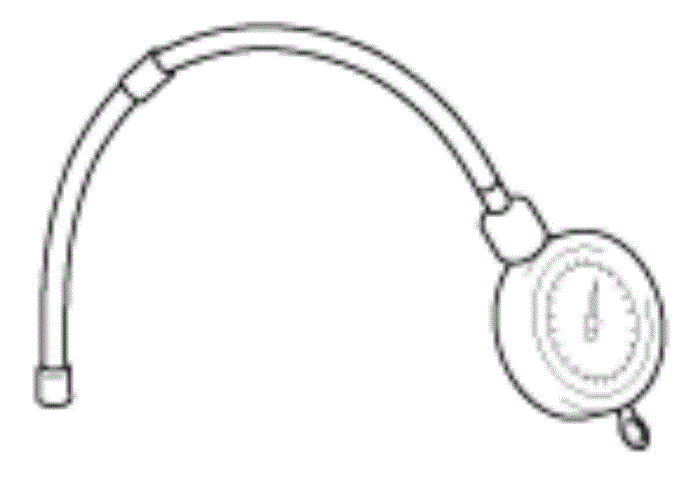

| Fuel Pressure Gauge (09353-24100) |
 Courtesy of HYUNDAI MOTOR AMERICA
|
Measuring the fuel line pressure |
Fuel Pressure Gauge Adapter (09353-02100)
|
 Courtesy of HYUNDAI MOTOR AMERICA
|
Connection between the high pressure fuel pump and the fuel feed line |
| Heated Oxygen Sensor Socket Wrench (09392-1Y100) |
 Courtesy of HYUNDAI MOTOR AMERICA
|
Removal and installation of the heated oxygen sensor
- SST No. 09392-2H100 model also can be used for removing the heated oxygen sensor.
|
| Torque Wrench Socket (09314-3Q100) |
 Courtesy of HYUNDAI MOTOR AMERICA
|
Removal and installation of the high pressure fuel pipe |
| Injector Combustion Seal Guide & Sizing tool (09353-2B000) |
 Courtesy of HYUNDAI MOTOR AMERICA
|
Installation of the injector combustion seal |
