Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector (A).

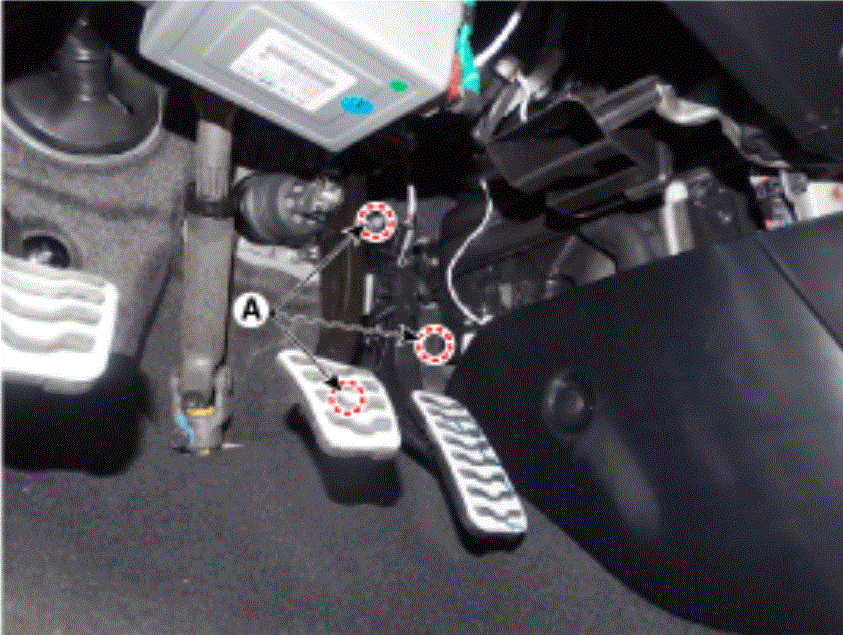

  3. Remove the installation nuts (A) and then remove the accelerator pedal module.
    G15472260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
