Repair Procedures: Removal
- Release the residual pressure in fuel line. (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Turn the ignition switch OFF, and then remove battery (-) terminal.

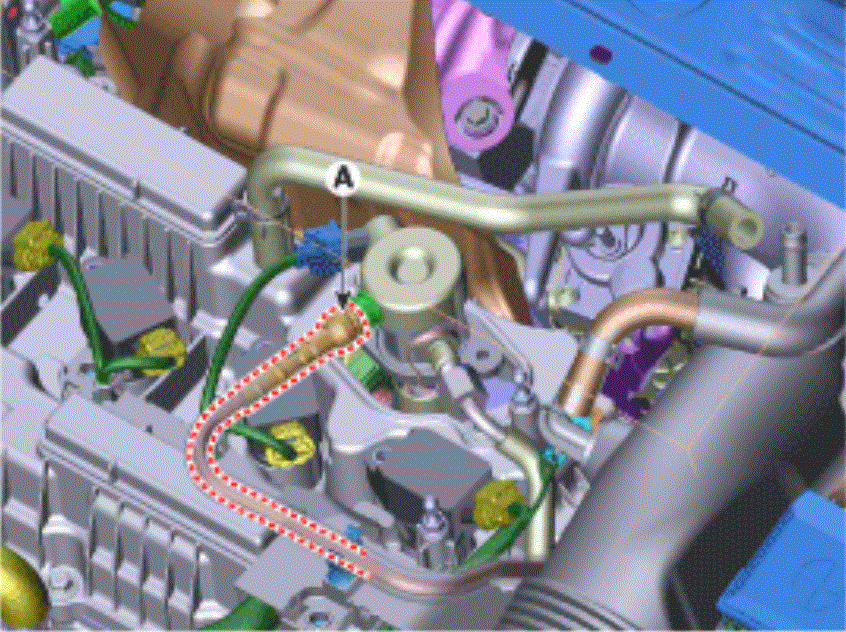

- Disconnect the fuel feed tube quick - connector (A).NOTE:

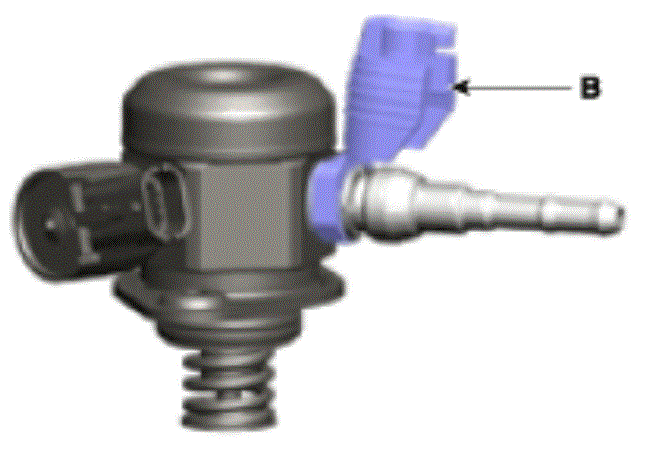

- Open the clamp cover (B) before disconnect the quick connector. (If the clip is applied)

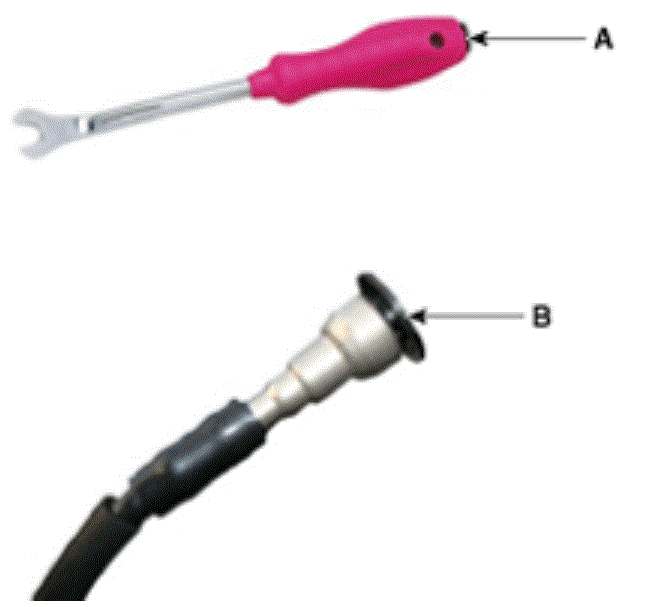

CAUTION:- When removing the quick-connector with the clip removing tool (A), be careful not to damage the plastic clip (B).
- If the clip is damaged, fuel line leak can be occurred due to a bad connection.

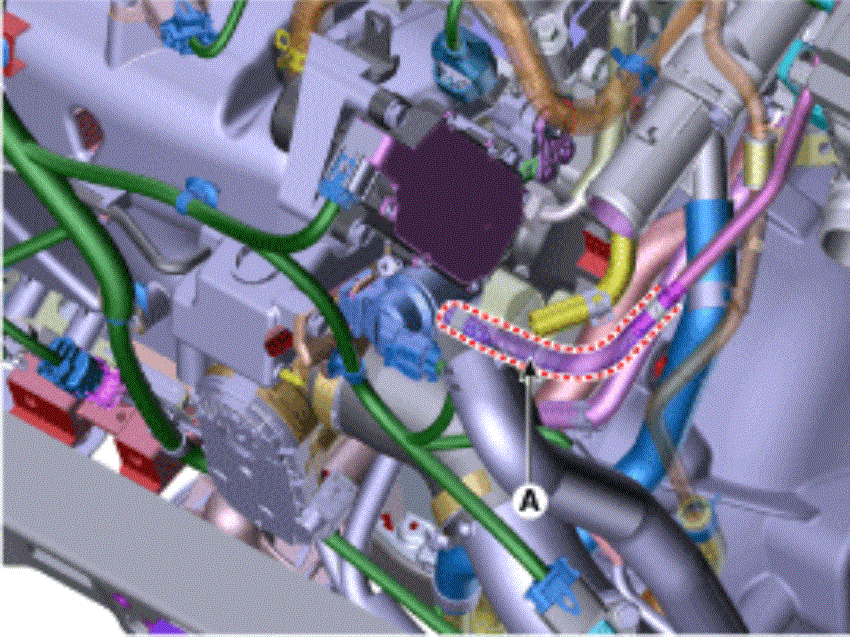

- Disconnect the vapor hose (A) which is connected from the PCSV.
- Lift the vehicle.
- Remove the fuel tank. (Refer to Fuel Delivery System - "FUEL TANK ")

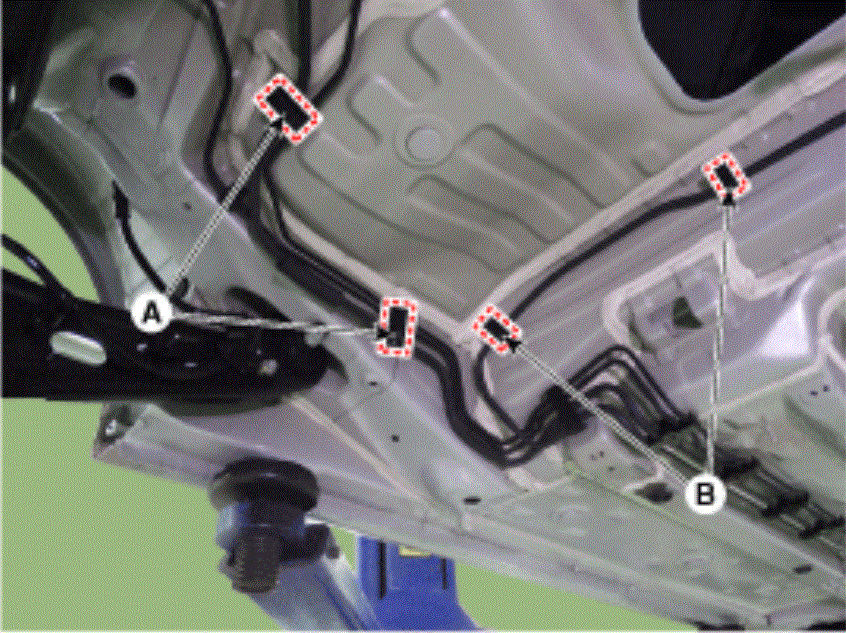

- Remove the vapor tube line fixing clip (A).
- Remove the feed line fixing clip (B).

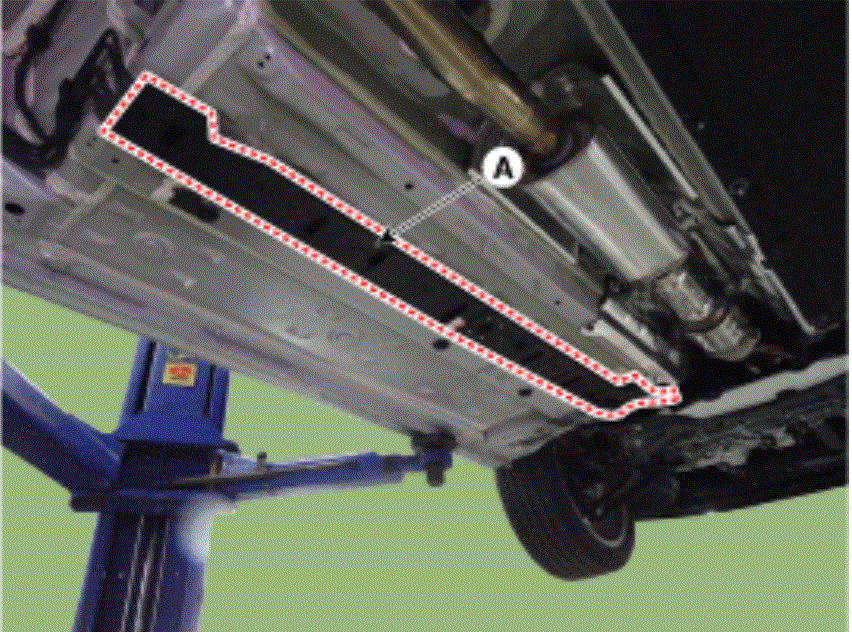

- Remove the fuel and brake line protector (A).

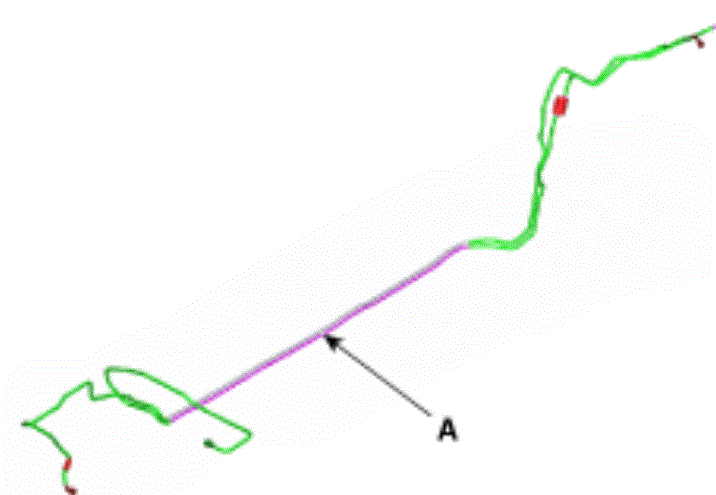

- Remove the fuel line (A).
