Repair Procedures: Removal
- Remove the fuel pump. (Refer to Fuel Delivery System - "FUEL PUMP ")

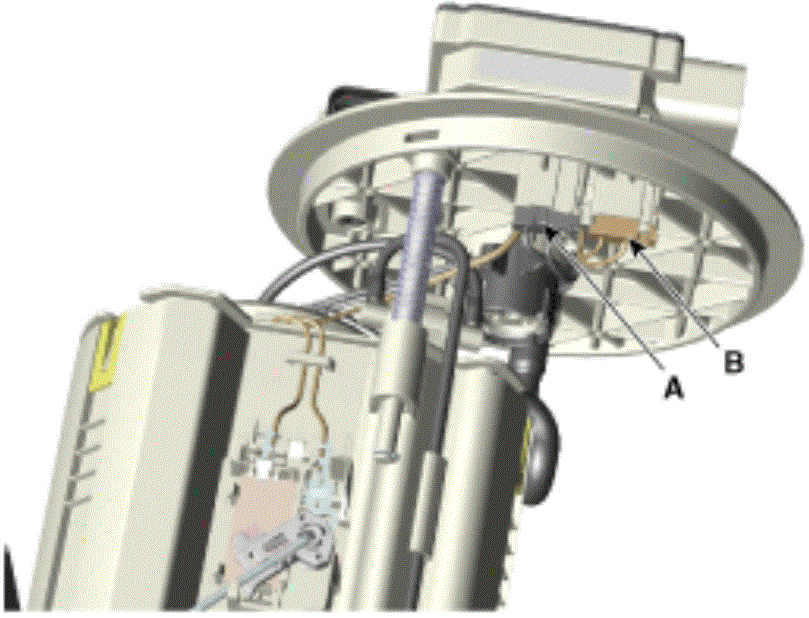

- Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

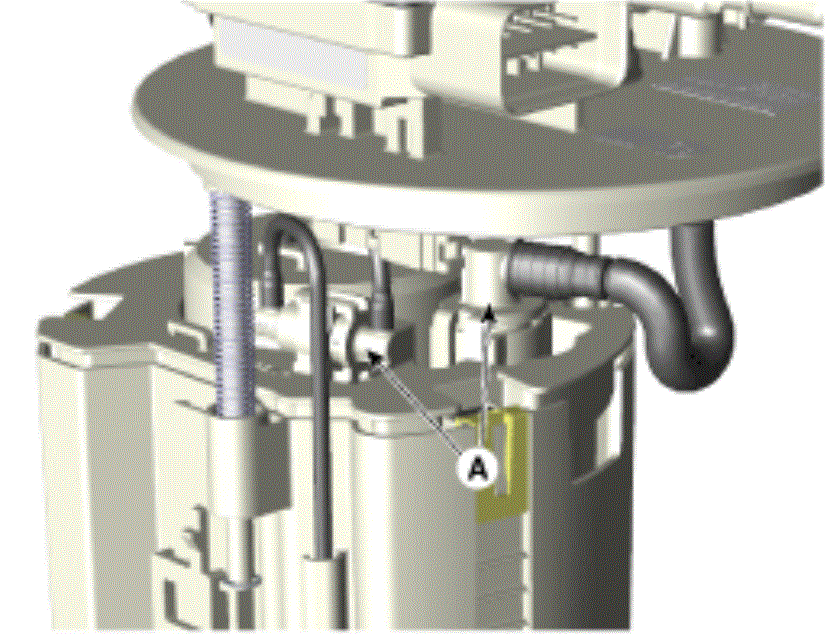

- Disconnect the fuel tube quick - connectors (A).

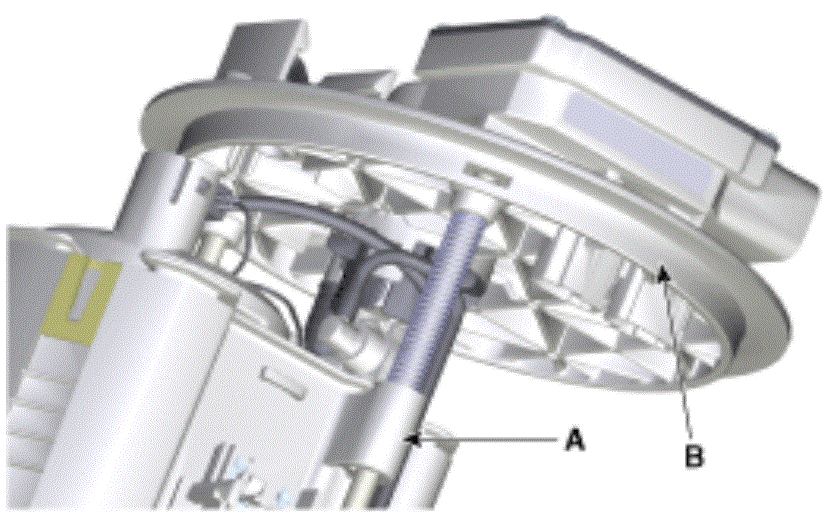

- Remove the head assembly (A) after removing the fixing clip (B).

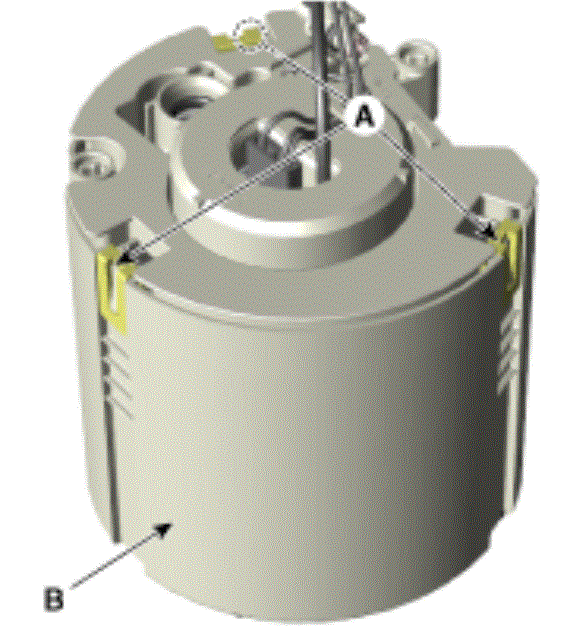

- Remove the reservior-cup (B) after releasing the fixing hooks (A).

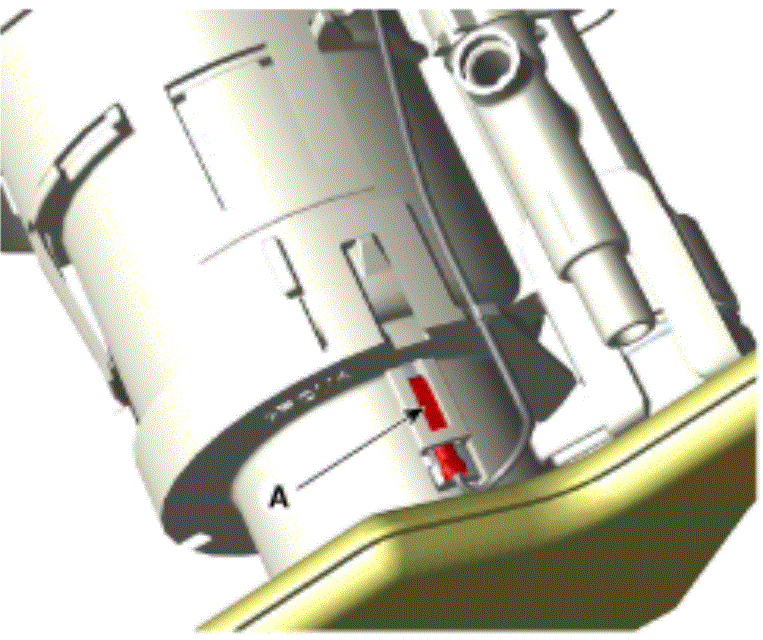

- Remove the ground line (A).

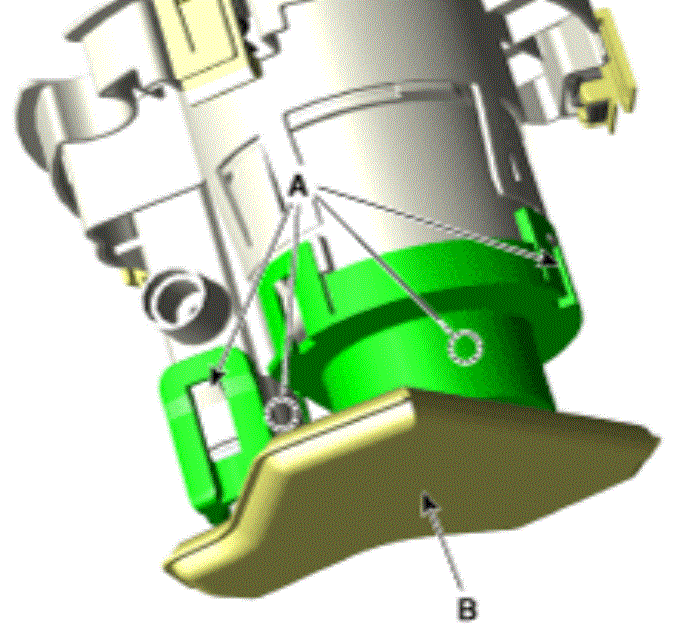

- Remove the pre-filter (B) after releasing the fixing hooks (A).

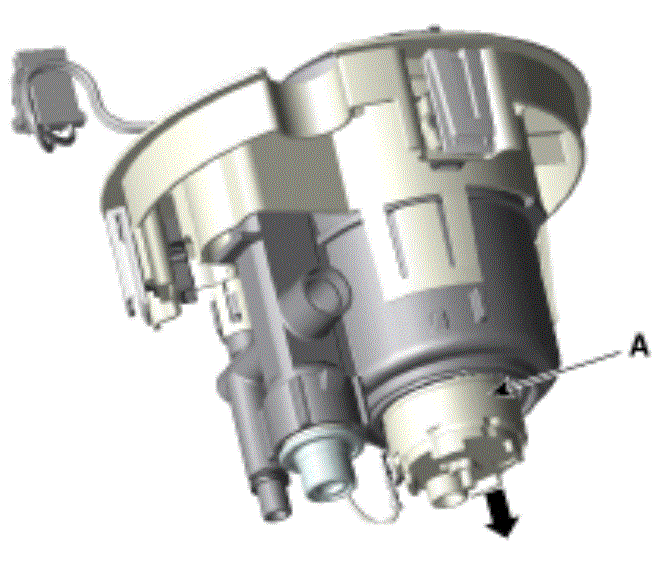

- Remove the fuel pump motor (A).
