Repair Procedures: Removal

  1. Release the residual pressure in fuel line. (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
  2. Remove the rear seat cushion. (Refer to Body - "REAR SEAT ASSEMBLY ")

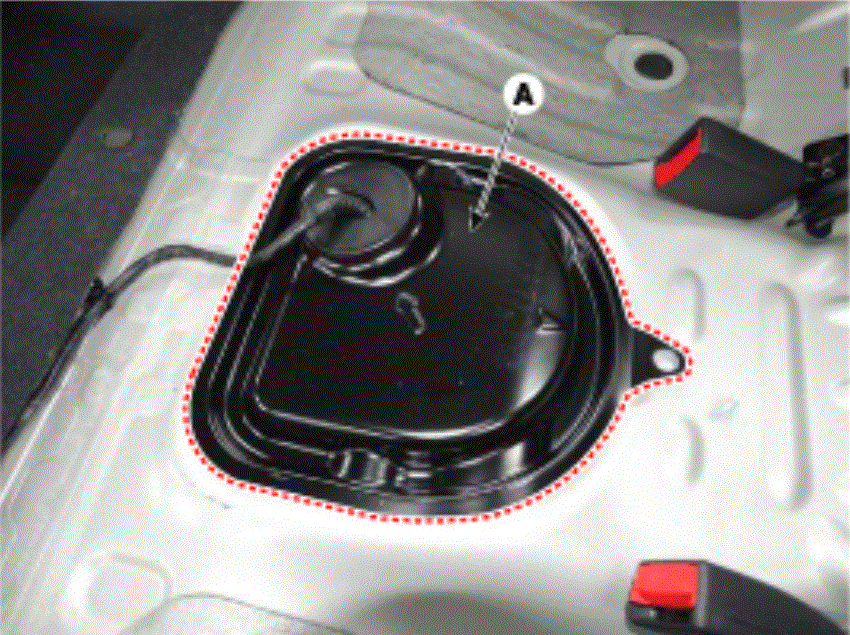

  3. Remove the fuel pump service cover (A).
    G15472198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

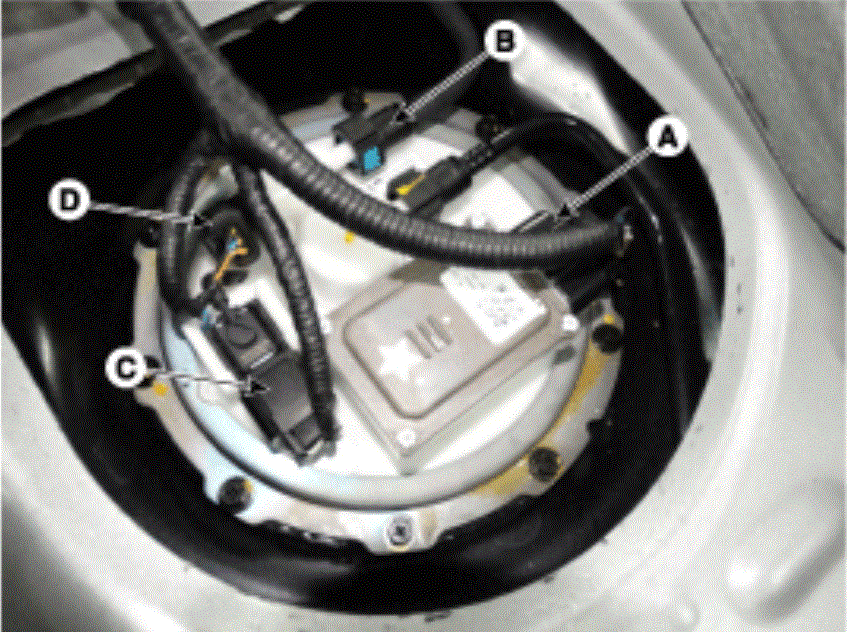

  4. Disconnect the fuel pump control module connector (A) and the fuel tank pressure sensor connector (C).
  5. Disconnect the fuel feed tube quick connector (B) and the fuel pressure connector (D).
    G15472199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Lift the vehicle.

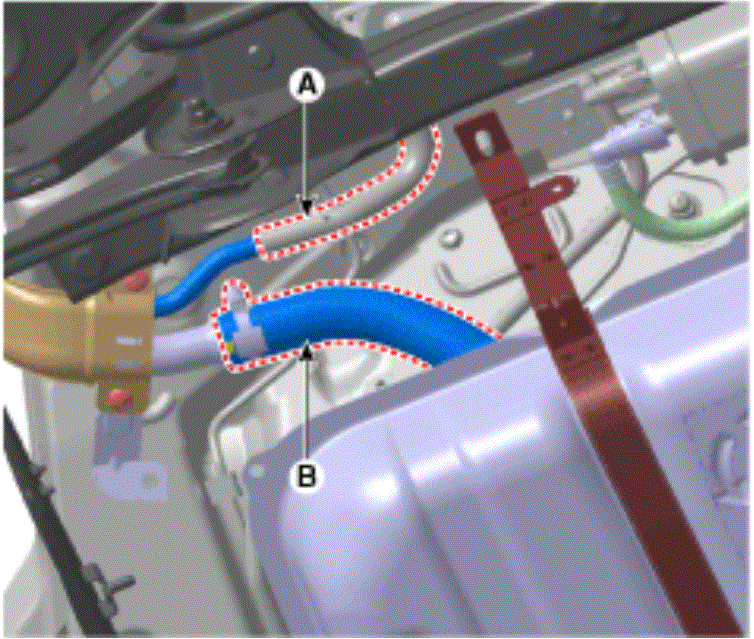

  7. Disconnect the vent hose (A).
  8. Disconnect the fuel filler hose (B).
    G15472200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

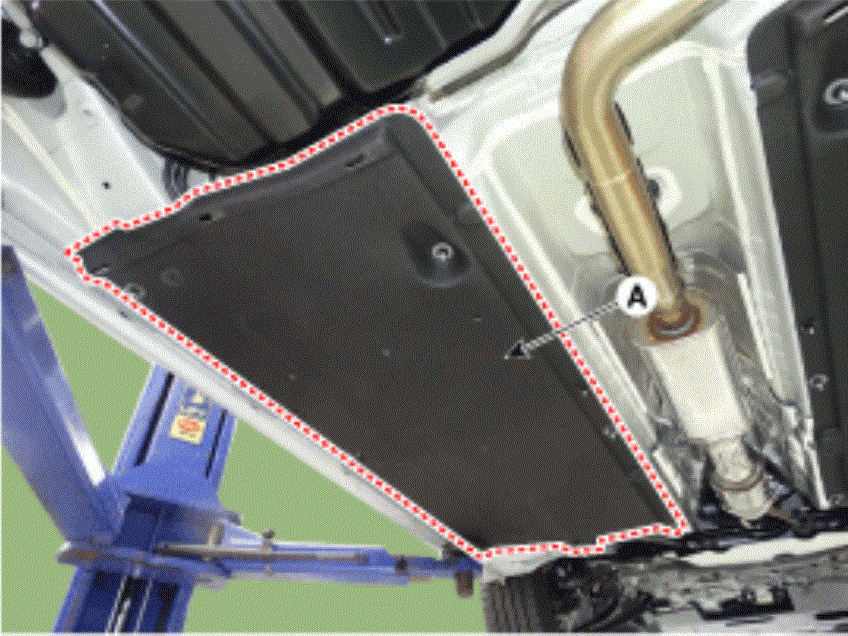

  9. Remove the side under cover (A).
    G15472201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

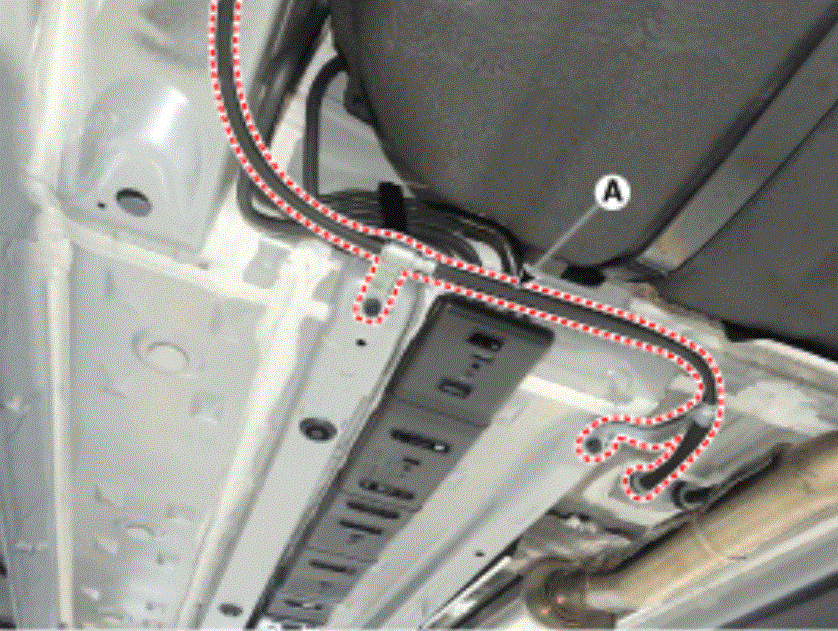

  10. Remove to brake line bracket (A).
    G15472202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. Support the fuel tank with a jack.
  12. 12 Remove the fuel tank from the vehicle after removing the fuel tank band nuts (A)
    G15472203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
  • When removing the fuel tank, the fuel tank must be tilted because of interfering with coupling.
