Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

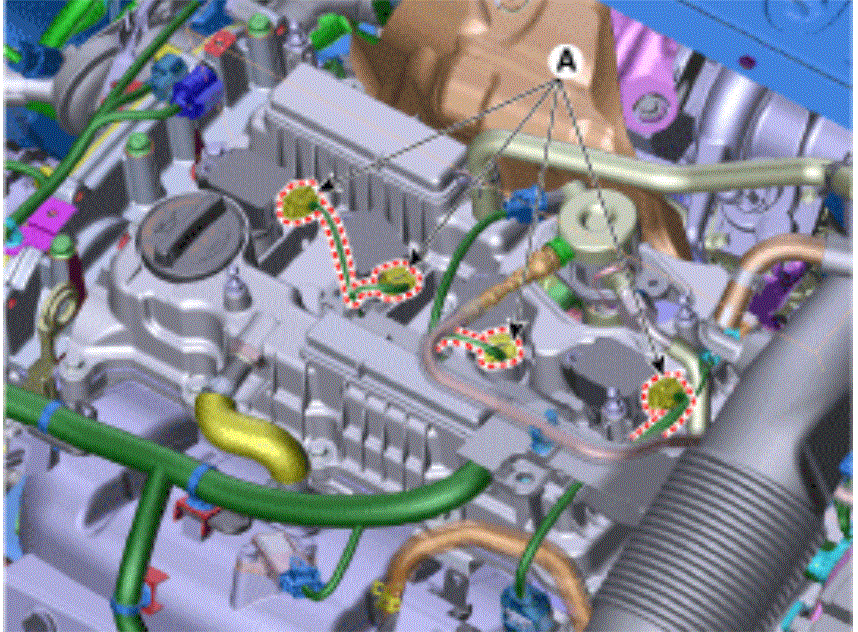

  3. Disconnect the ignition coil connector (A).
    G15471799Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

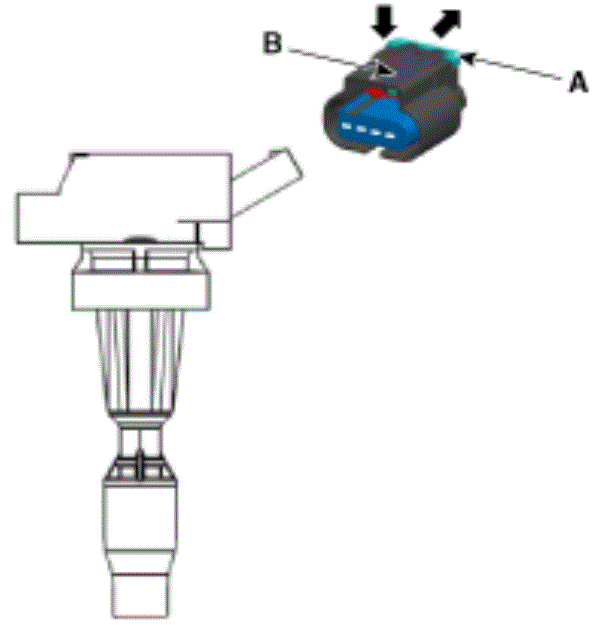

    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G15471800Courtesy of HYUNDAI MOTOR AMERICA

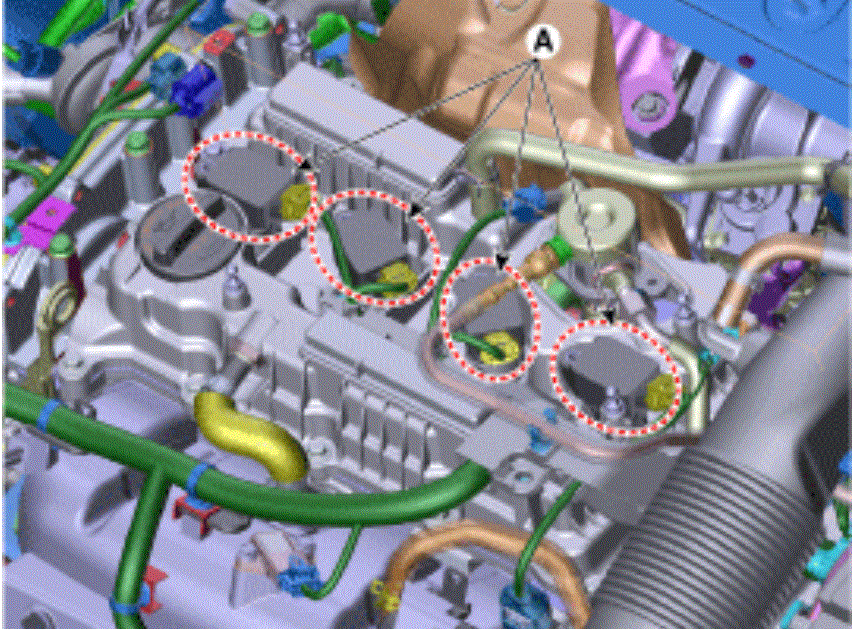

  4. Remove the ignition coil (A) after loosening the mounting bolt.
    G15471801Courtesy of HYUNDAI MOTOR AMERICA
