Front Wheel Alignment: Caster

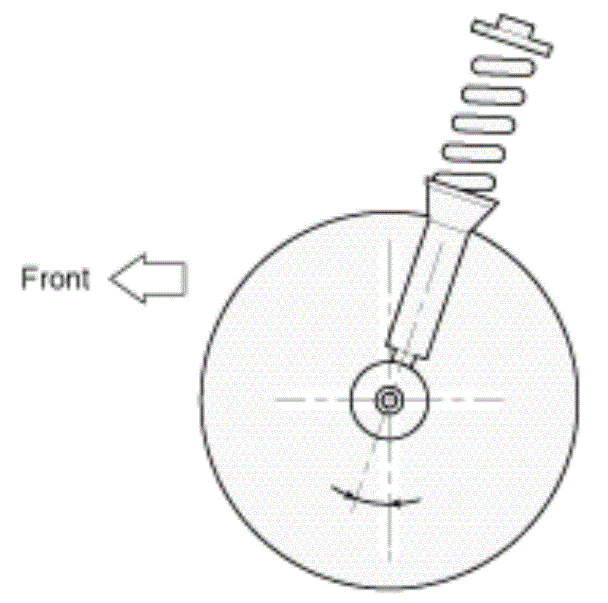

Caster is the tilting of the strut axis either forward or backward from vertical. A backward tilt is positive (+) and a forward tilt is negative (-).
Caster is pre - set at the factory and doesn't need to be adjusted. If the caster is not within the standard value, replace the bent or damaged parts.
Caster
Standard type (18 inch wheel) : 5.7° ± 0.5°
Performance type (19 inch wheel) : 5.86° ± 0.5°
