Repair Procedures: Installation

CAUTION:

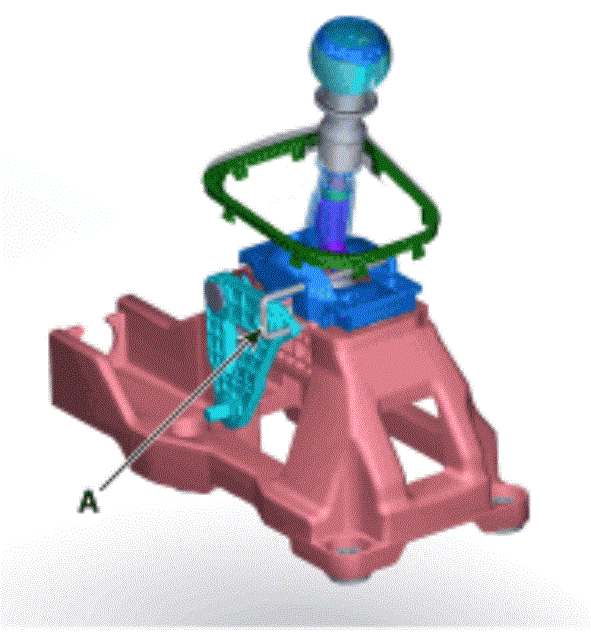

  • Place the shift lever and transaxle side lever in 4th shift position and insert the lever fixing pin (A).
G15472383Courtesy of HYUNDAI MOTOR AMERICA

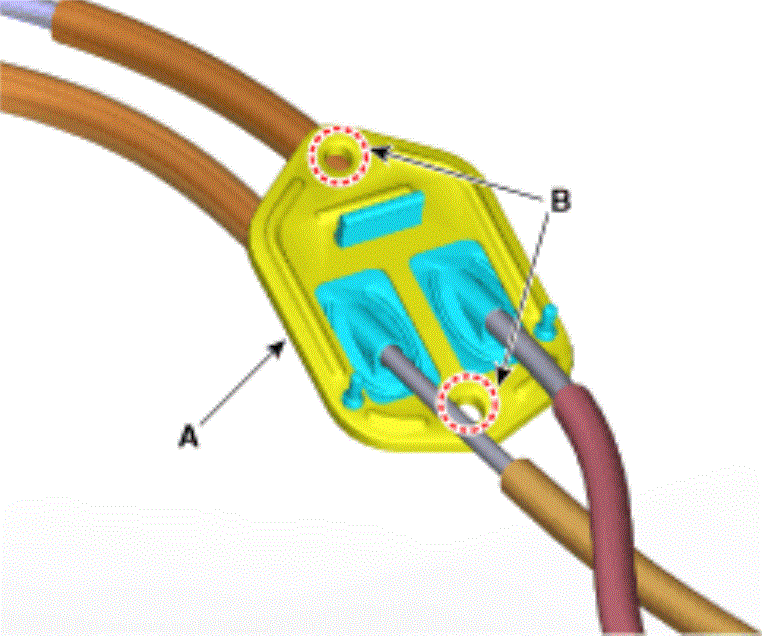

  1. Install the retainer (A) and then tighten nut (B-2ea).

    Tightening torque:

    11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)

    G15472384Courtesy of HYUNDAI MOTOR AMERICA

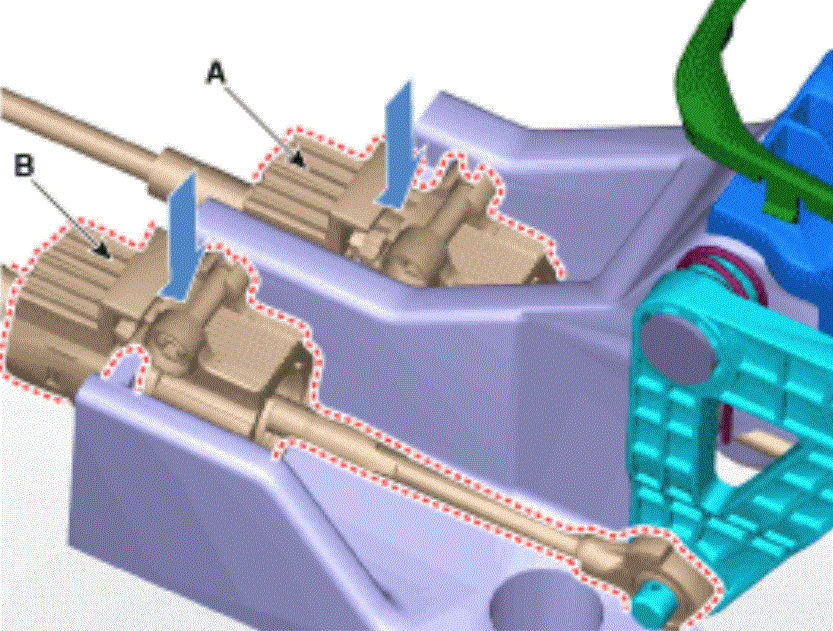

  2. Install the shift cable (A).
  3. Install the select cable (B).
    G15472385Courtesy of HYUNDAI MOTOR AMERICA

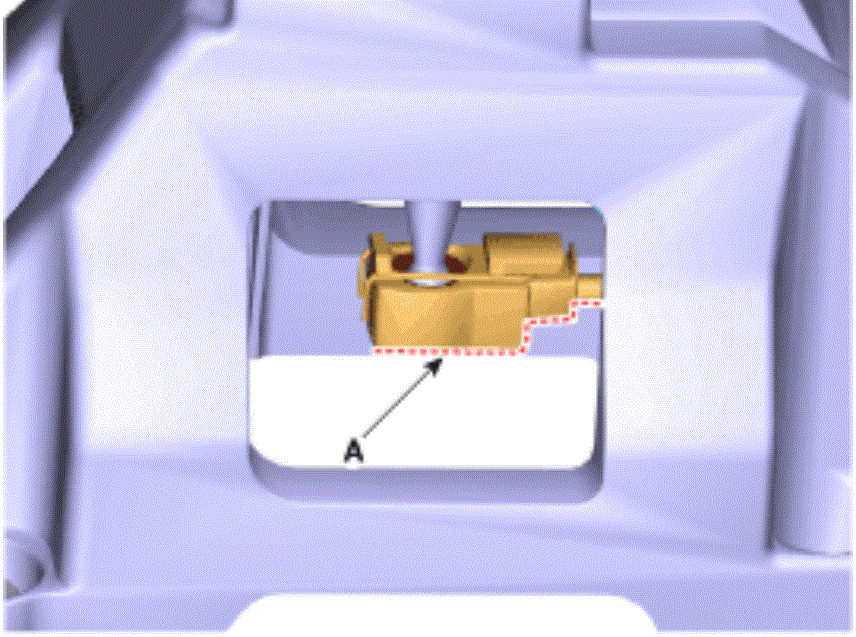

  4. Install the cable end (A).
    G15472386Courtesy of HYUNDAI MOTOR AMERICA

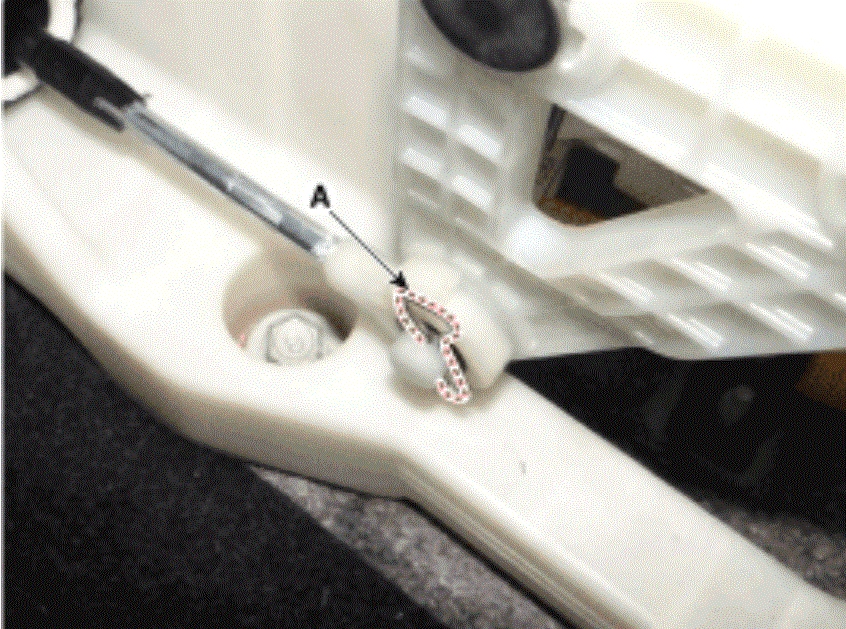

  5. Install the snap pin (A).
    G15472387Courtesy of HYUNDAI MOTOR AMERICA

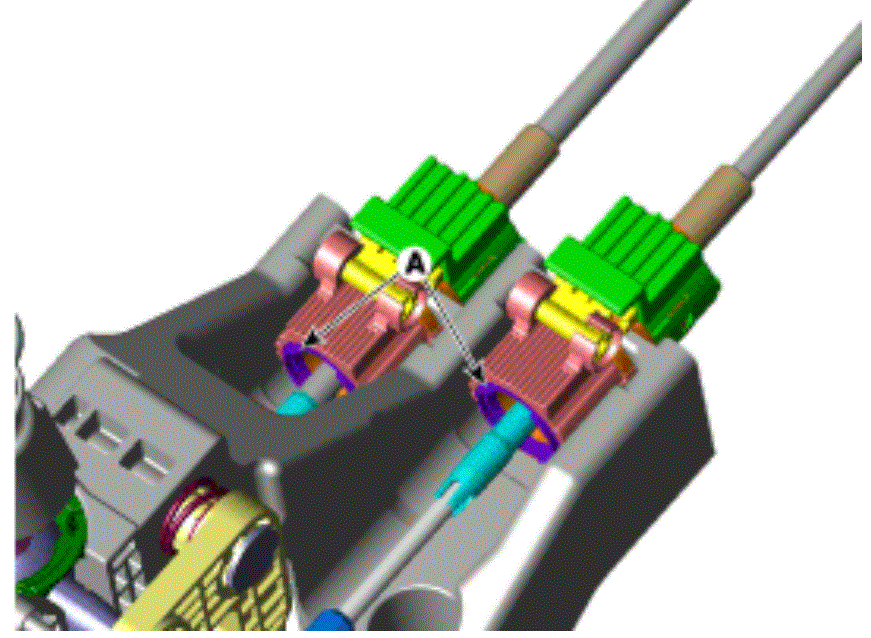

    CAUTION:
    • After installing the select cable and shift cable socket, check portion (A) to see if it projects outwards from the cap.
    G15472388Courtesy of HYUNDAI MOTOR AMERICA

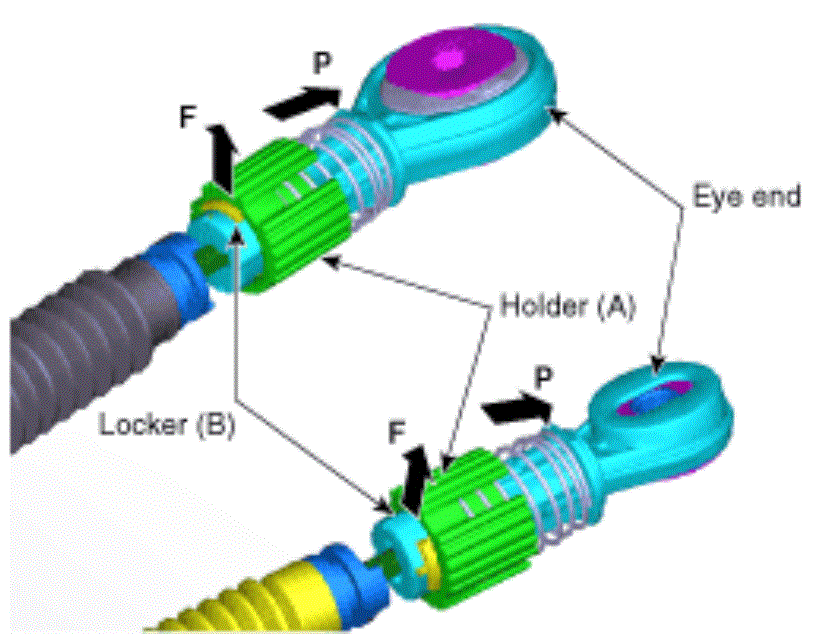

  6. Move the locker (B) in the direction of "F" with pulling the holder (A) in the direction of "P".
    G15472389Courtesy of HYUNDAI MOTOR AMERICA

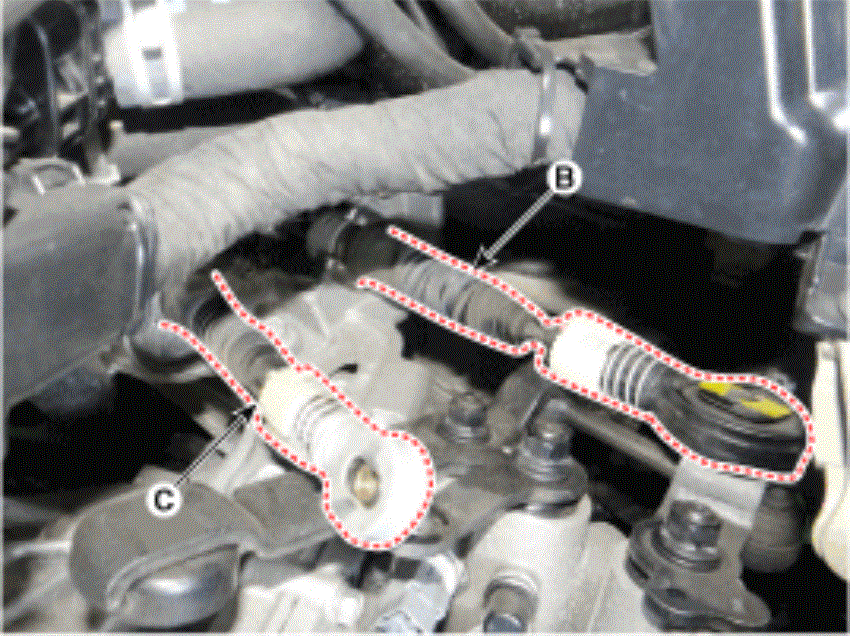

  7. Install the shift cable (B) and select cable (C).
    G15472390Courtesy of HYUNDAI MOTOR AMERICA

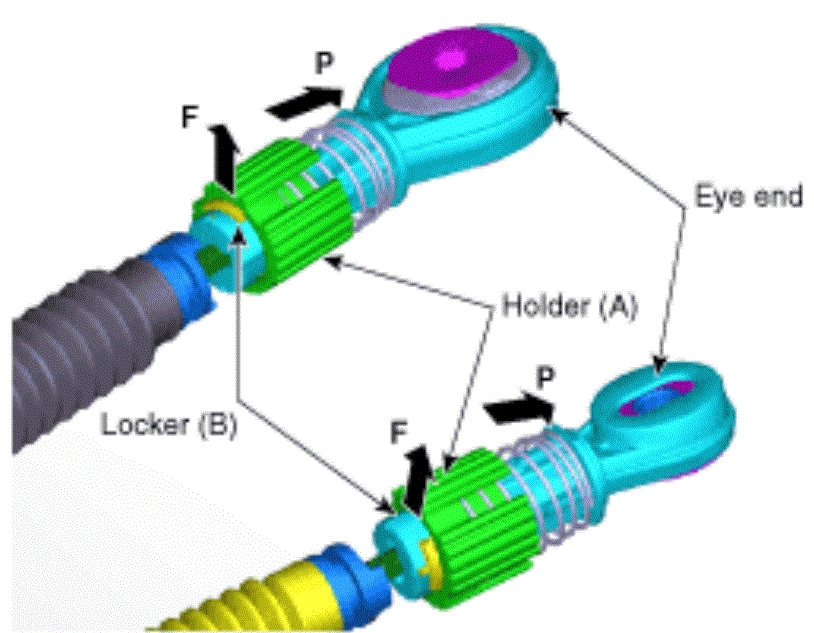

  8. Tighten the holder (A) to the "P" directions after fixing the rockers (B) in the "F" direction.
    G15472391Courtesy of HYUNDAI MOTOR AMERICA

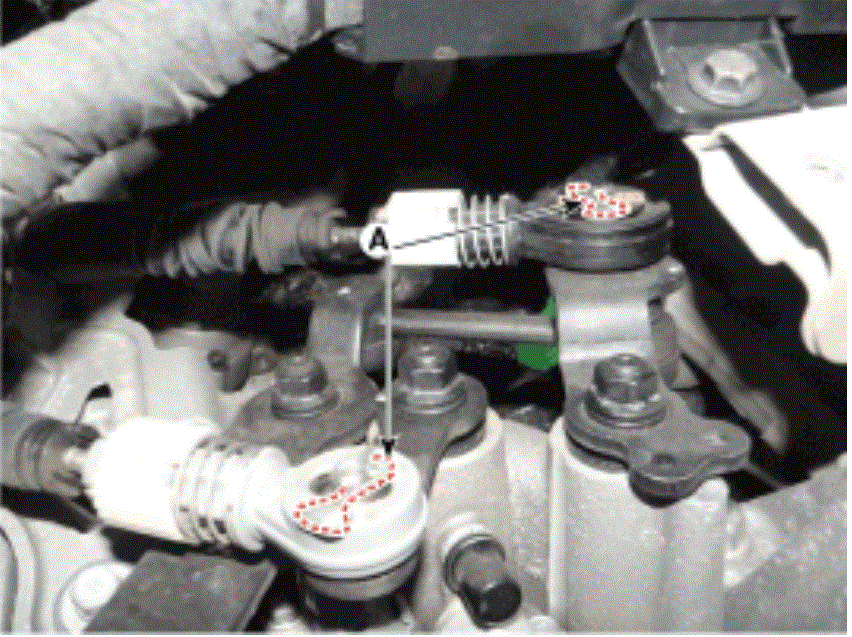

  9. Install the snap pin (A-2ea).
    G15472392Courtesy of HYUNDAI MOTOR AMERICA

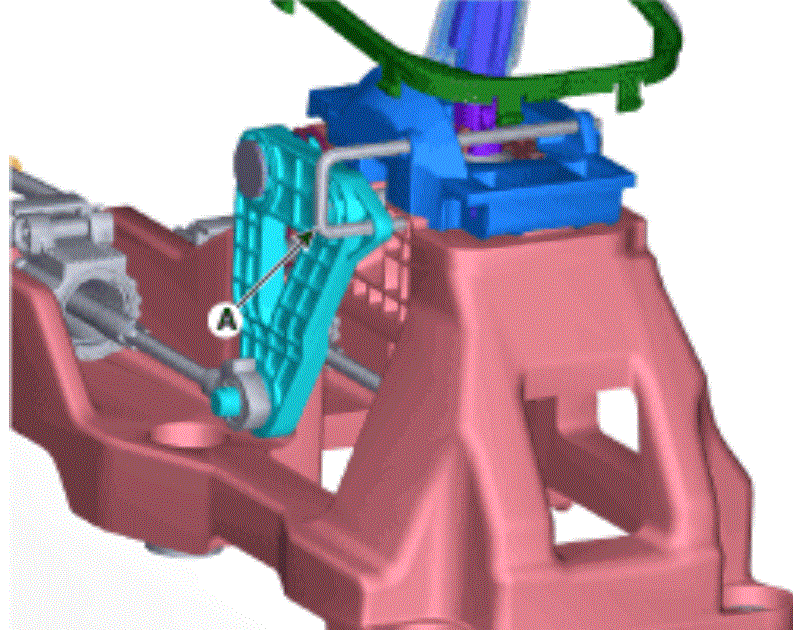

  10. Remove the shift lever 4th fixed pin (A).
    G15472393Courtesy of HYUNDAI MOTOR AMERICA
  11. Install the floor console assembly. (Refer to Body - "FLOOR CONSOLE ")
  12. Install the battery and battery tray. (Refer to Engine Electrical System - "BATTERY ")
  13. Install the engine control module (ECM). (Refer to Engine Control System - "ECM ")
  14. Install the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "AIR CLEANER ")
CAUTION:
  • Check operating of lever of transaxle side when operating shift lever after assembly. (1-6, R)
  • If there is sticky feel, adjust the control cable length again. (Refer to Control Cable - "INSTALLATION ")
