Repair Procedures: Removal
- Turn OFF ignition switch and disconnect the negative (-) battery cable.
- Move the shift lever to 4th gear.
- Remove the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and battery tray. (Refer to Engine Electrical System - "BATTERY ")
- Remove the engine control module (ECM). (Refer to Engine Control System - "ECM ")

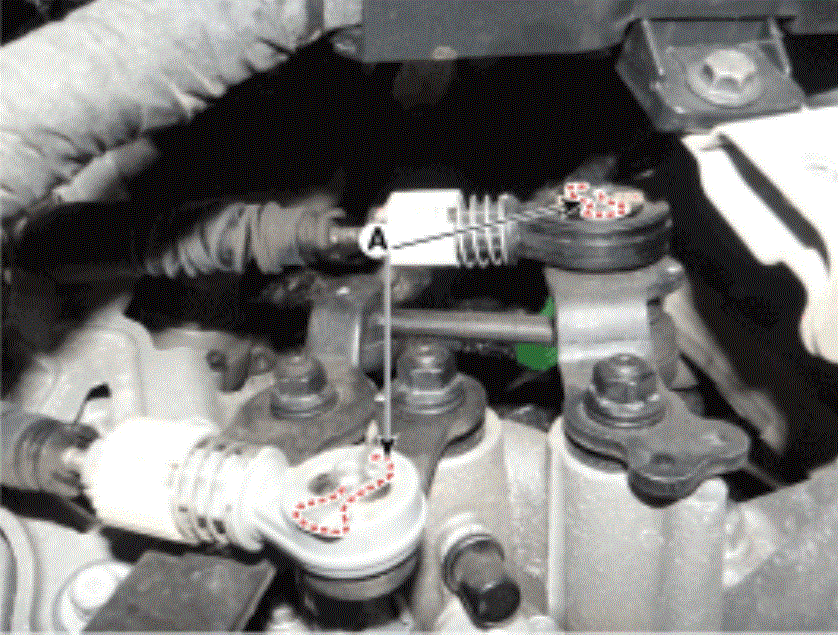

- Remove the snap pin (A).

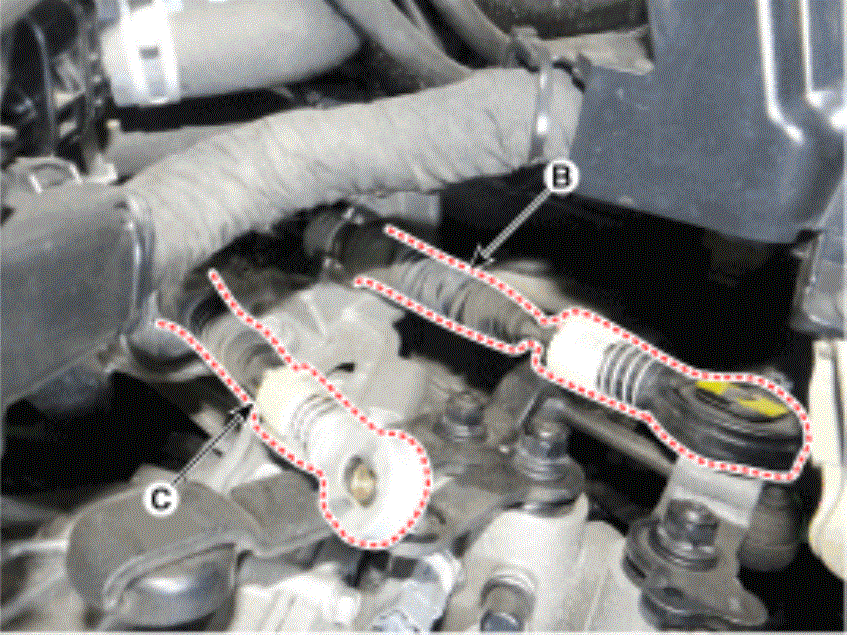

- Disconnect the shift cable (B) and the select cable (C) from the bracket.

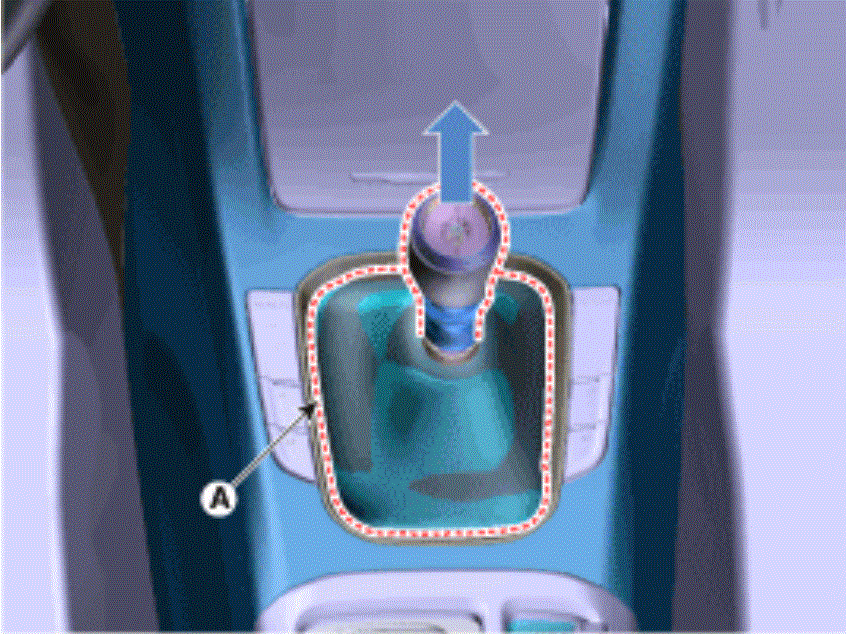

- Remove the shift lever knob & boots (A) pull both of it up.
- Remove the floor console assembly. (Refer to Body - "FLOOR CONSOLE ")

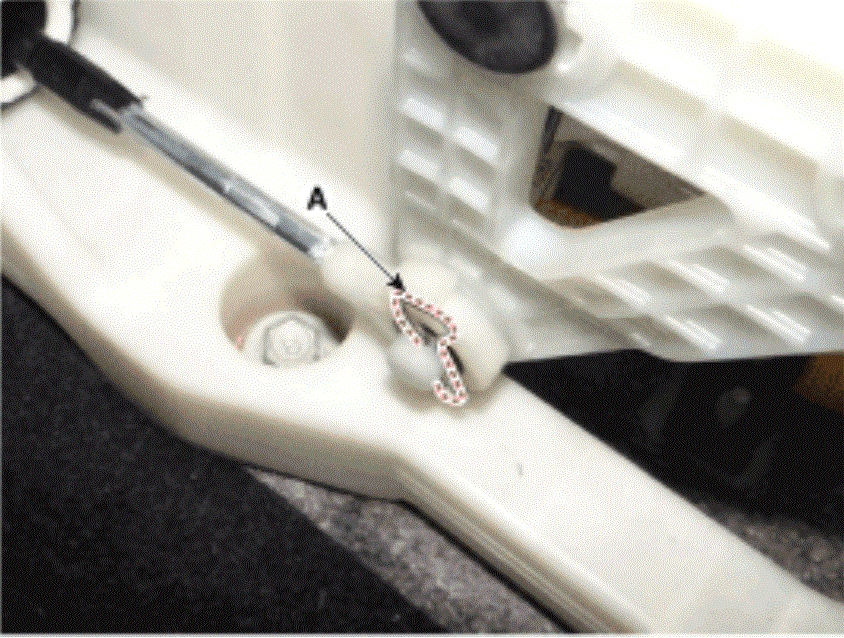

- Remove the snap pin (A).

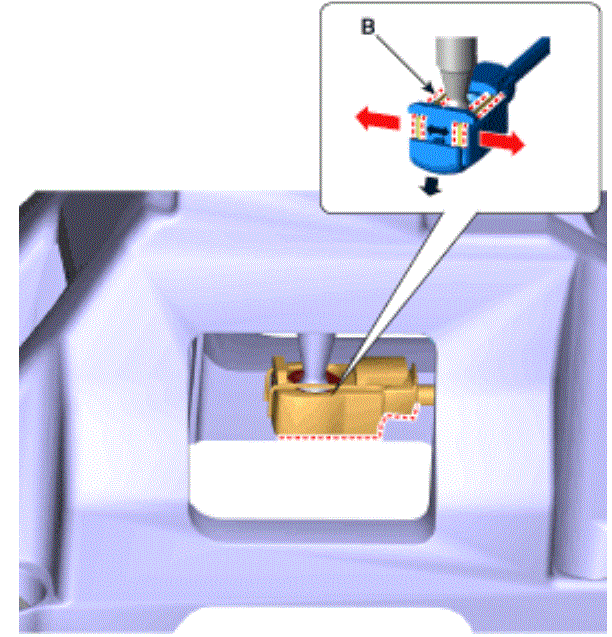

- Remove the clip, in the shape of a "U" (B), from the cable end by spreading it towards both sides.

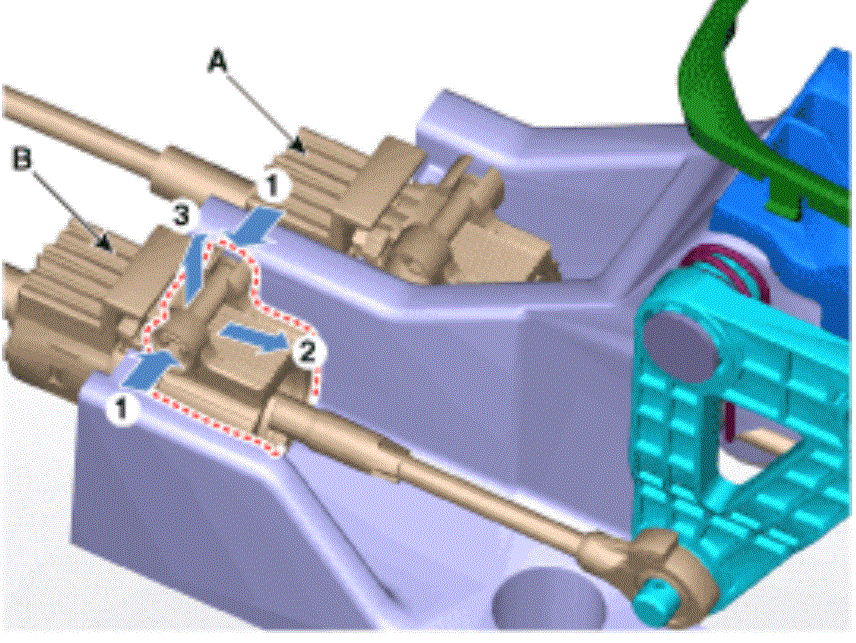

- Disconnect the shift cable (A).
- Disconnect the select cable (B).

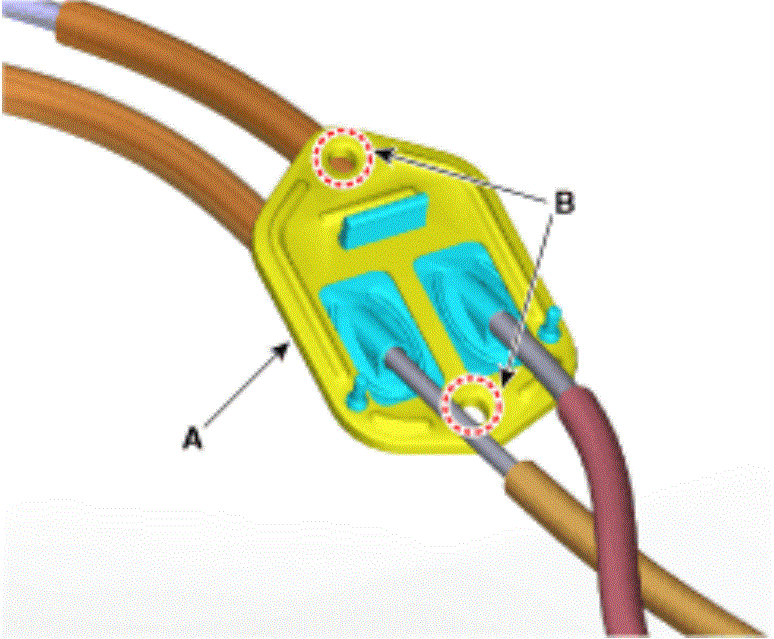

- Remove the retainer (A) after removing the nut (B-2ea).
- Remove the control cable assembly from the vehicle.
