Components And Components Location: Components

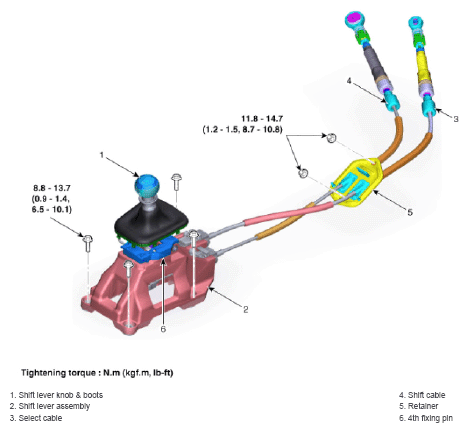

Fig 1: Shift Lever Components Location With Torque Specification
G15472368Courtesy of HYUNDAI MOTOR AMERICA
