Repair Procedures: Removal
- Turn OFF ignition switch and disconnect the negative (-) battery cable.

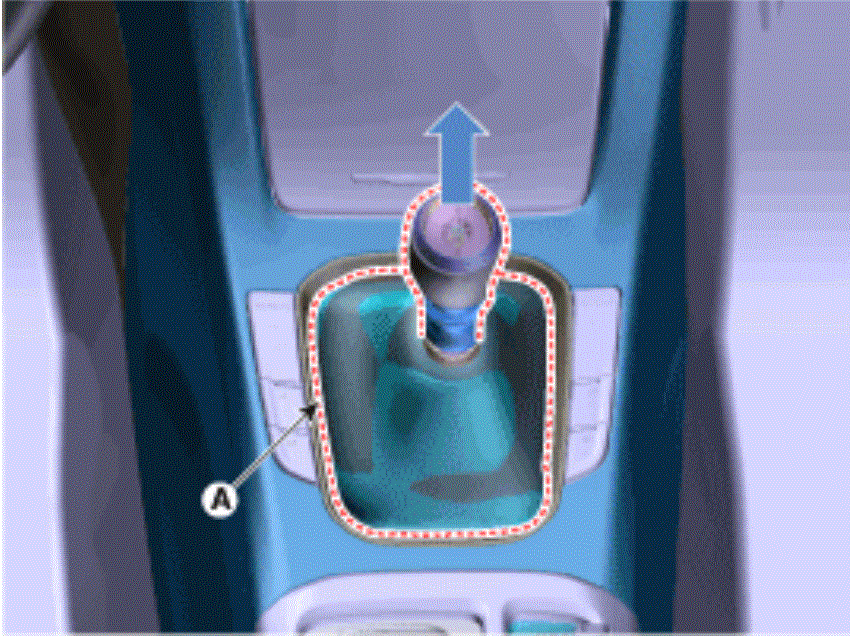

- Remove the shift lever knob & boots (A) pull both of it up.
- Remove the floor console assembly. (Refer to Body - "FLOOR CONSOLE ")

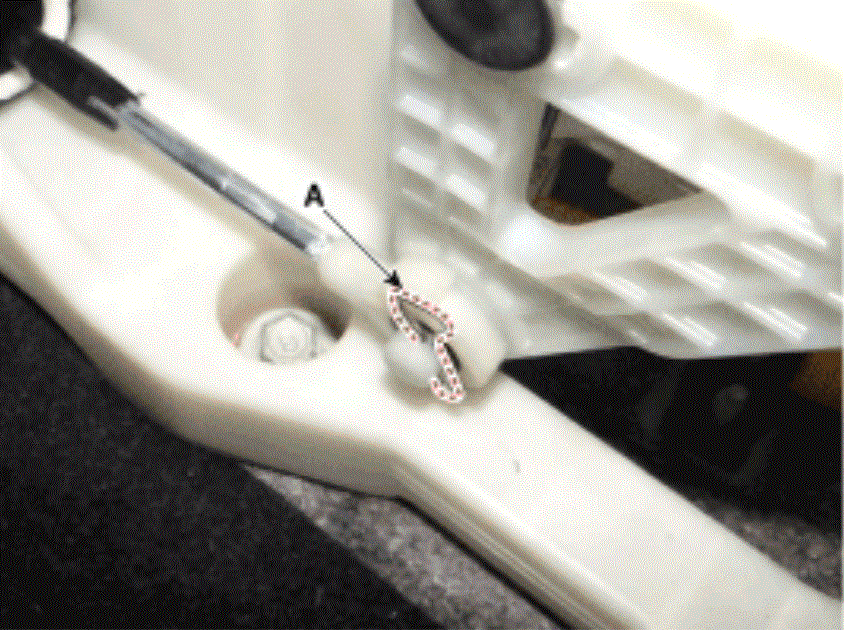

- Remove the snap pin (A).

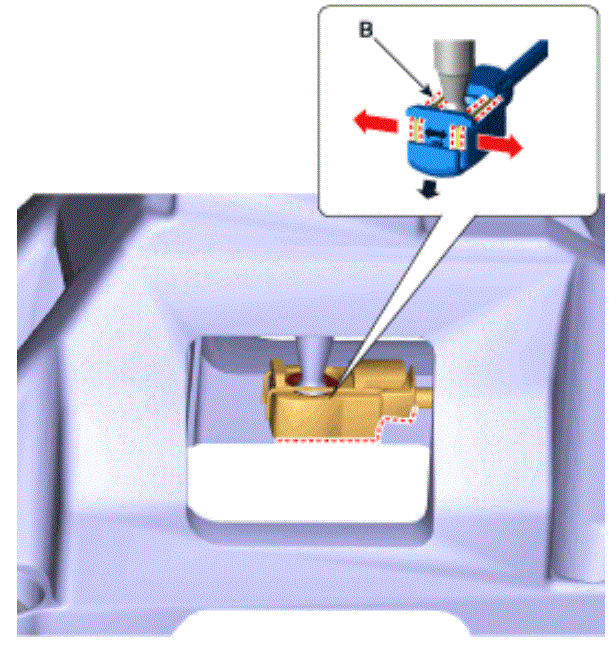

- Remove the clip, in the shape of a "U" (B), from the cable end by spreading it towards both sides.

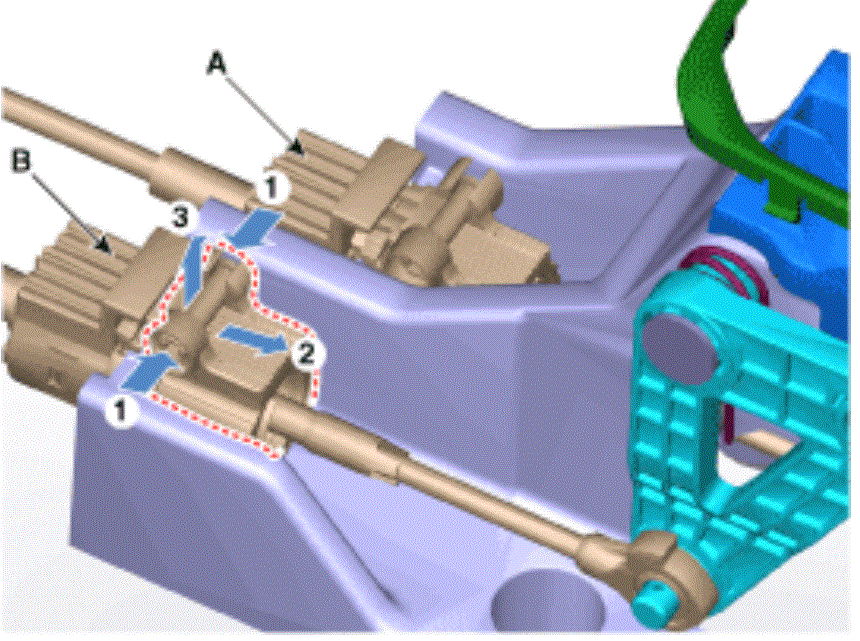

- Disconnect the shift cable (A).
- Disconnect the select cable (B).

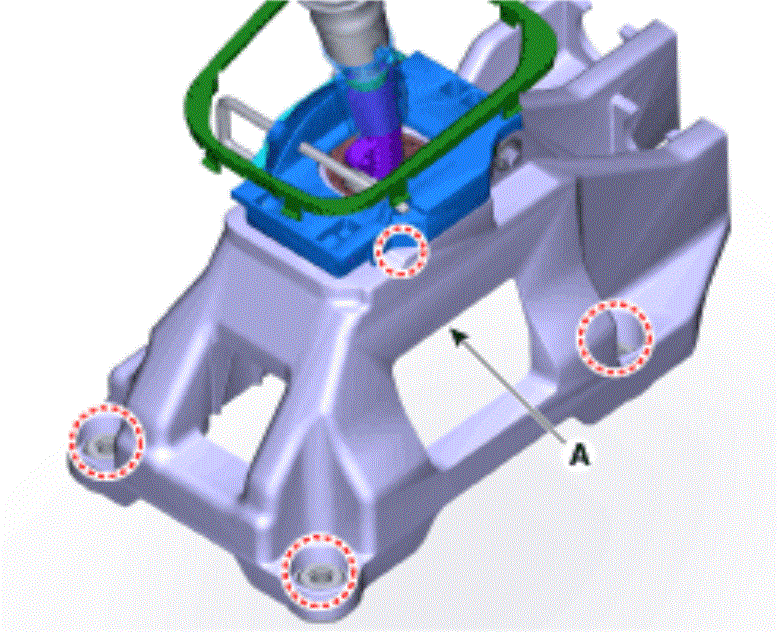

- Remove the shift lever assembly (A) after removing the bolts.
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
