Repair Procedures: Inspection

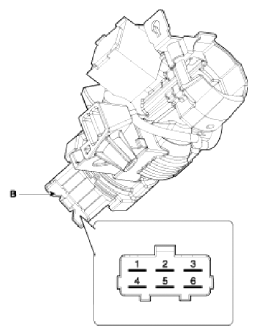

  1. Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column.
    G13054853Courtesy of HYUNDAI MOTOR AMERICA
    G13054854Courtesy of HYUNDAI MOTOR AMERICA

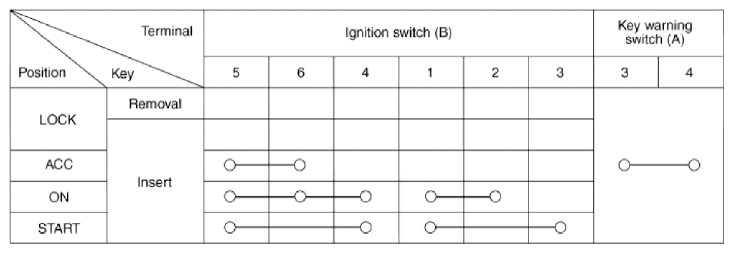

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    G13054855Courtesy of HYUNDAI MOTOR AMERICA
