Driver/Assist Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

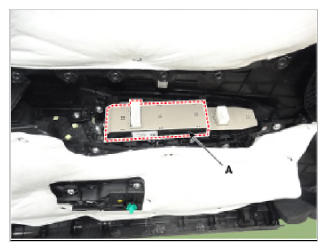

  3. Remove the power window switch assembly (A).
    G13054526Courtesy of HYUNDAI MOTOR AMERICA
