Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the steering column upper and lower shrouds.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

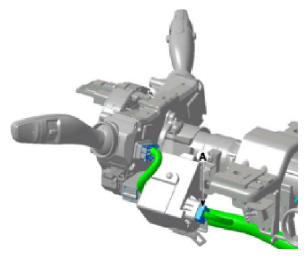

  4. Disconnect the electronic steering column lock connector (A).
    G13054851Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the electronic steering column lock.

    (Refer to MDPS COLUMN AND HOUSING )

    G13054852Courtesy of HYUNDAI MOTOR AMERICA
