Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the CVVT oil control valve connector (A).
  3. Remove the installation bolt (B), and then remove the valve from the engine.

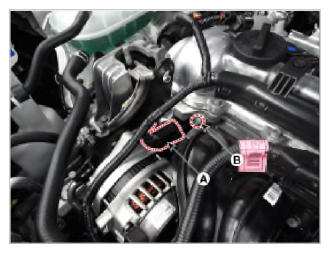

    [Bank 1/Intake]

    G13052624Courtesy of HYUNDAI MOTOR AMERICA

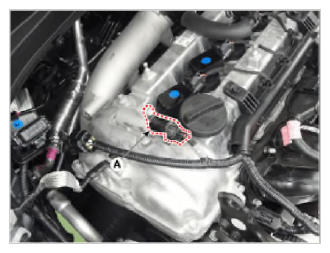

    [Bank 1/Exhaust]

    G13052625Courtesy of HYUNDAI MOTOR AMERICA
