Bank 1/Intake

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

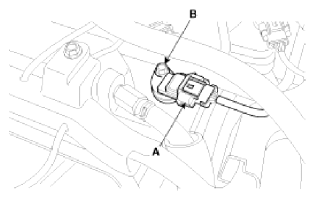

  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor.
    G13052578Courtesy of HYUNDAI MOTOR AMERICA
