Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Lift the vehicle.

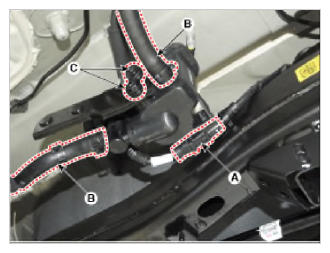

  3. Disconnect the canister close valve connector (A).
  4. Disconnect the ventilation hose (B).
  5. Remove the fuel tank air filter after loosening nut (C).
    G13052649Courtesy of HYUNDAI MOTOR AMERICA

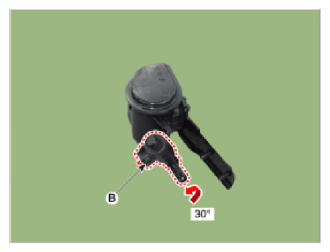

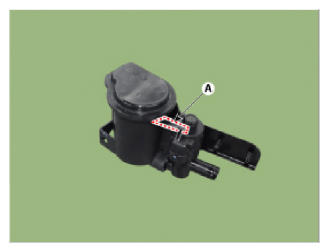

  6. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter (C) after rotating it in the direction of the arrow in the figure.
    G13052650Courtesy of HYUNDAI MOTOR AMERICA
    G13052651Courtesy of HYUNDAI MOTOR AMERICA

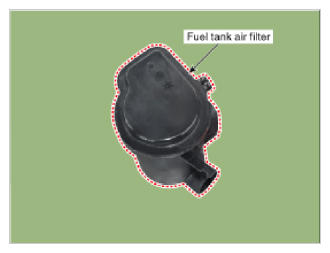

  7. Install a new fuel tank air filter.
    G13052652Courtesy of HYUNDAI MOTOR AMERICA
