Components Location

G13052528Courtesy of HYUNDAI MOTOR AMERICA

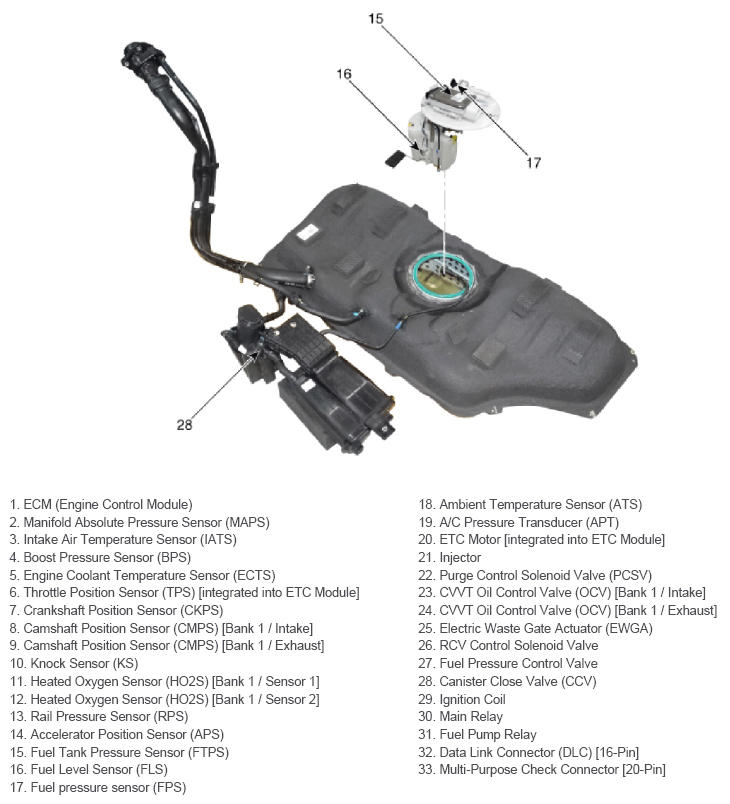

G13052529Courtesy of HYUNDAI MOTOR AMERICA

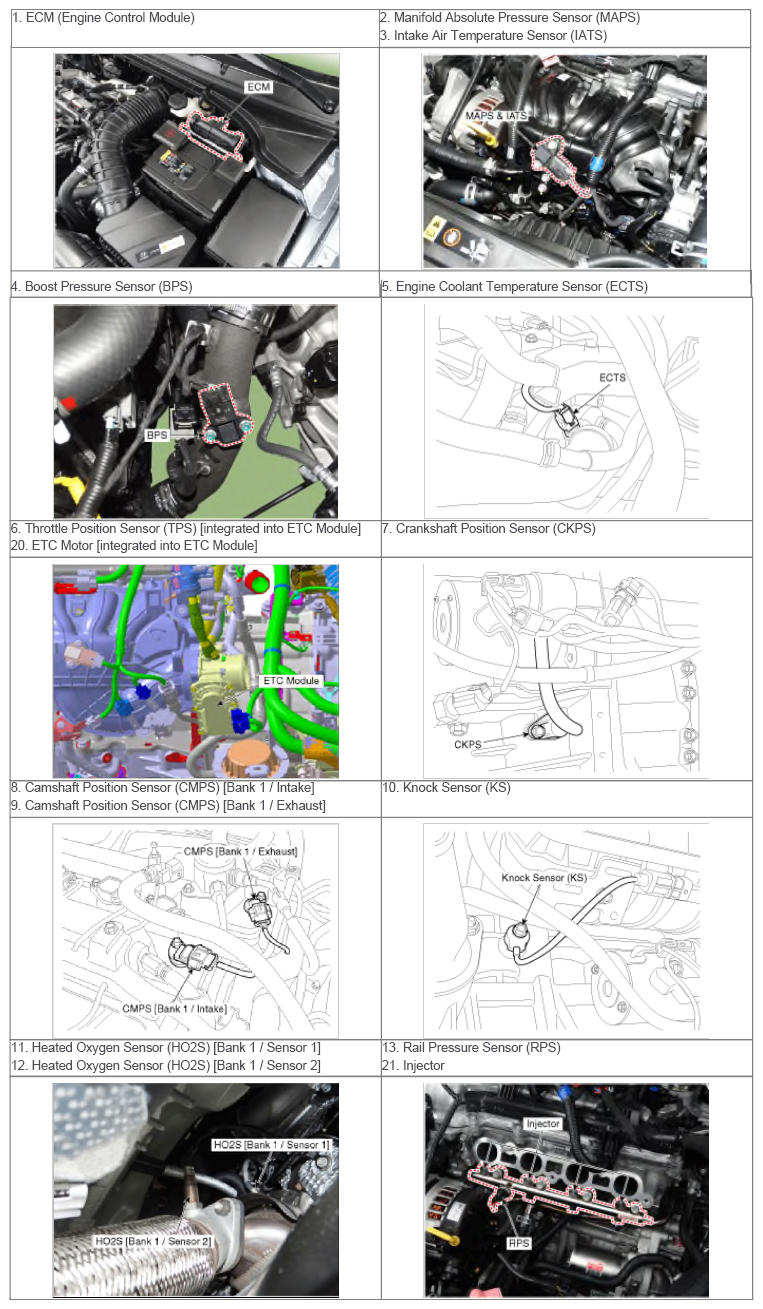

G13052530Courtesy of HYUNDAI MOTOR AMERICA

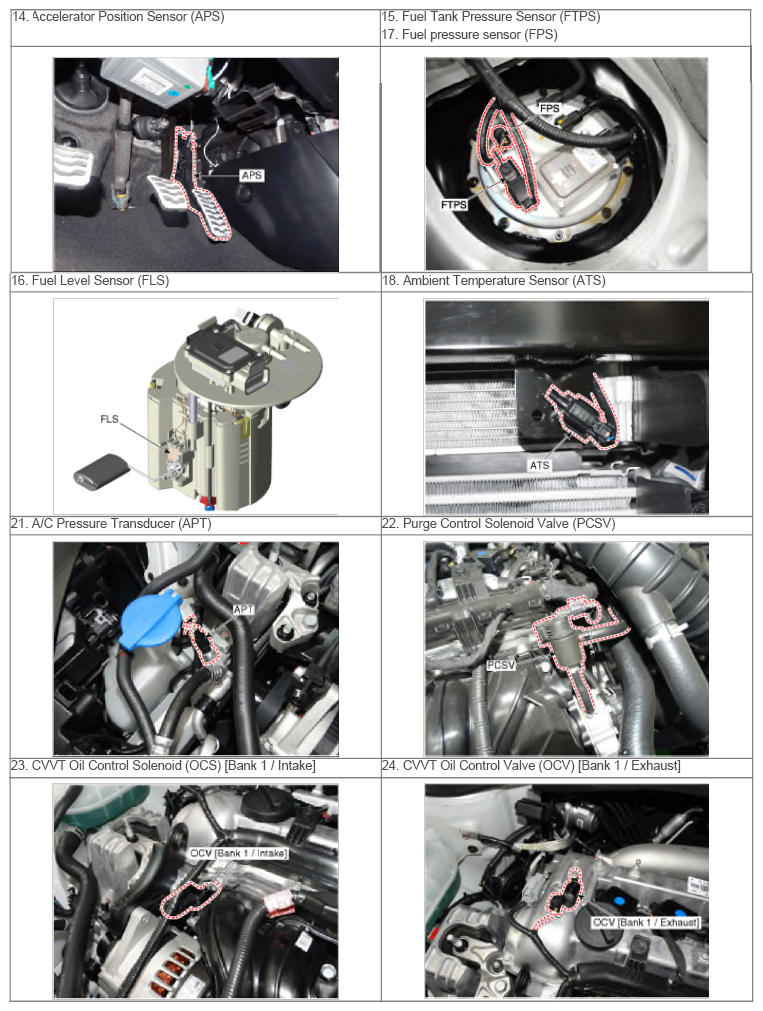

G13052531Courtesy of HYUNDAI MOTOR AMERICA

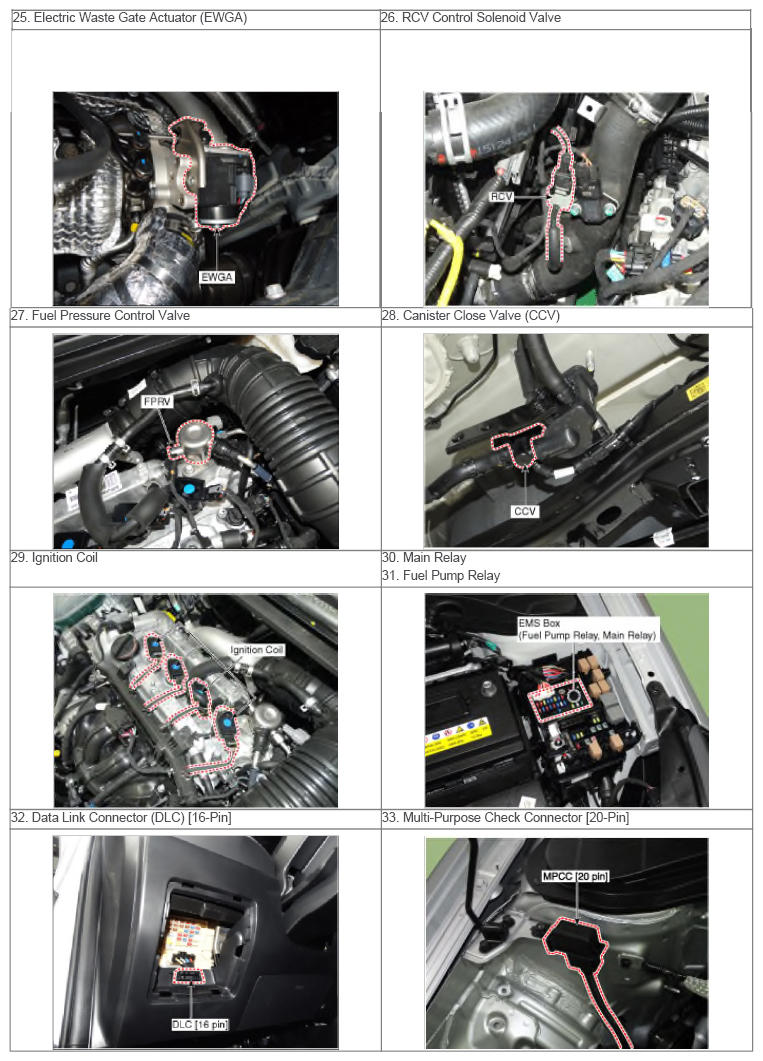

G13052532Courtesy of HYUNDAI MOTOR AMERICA
