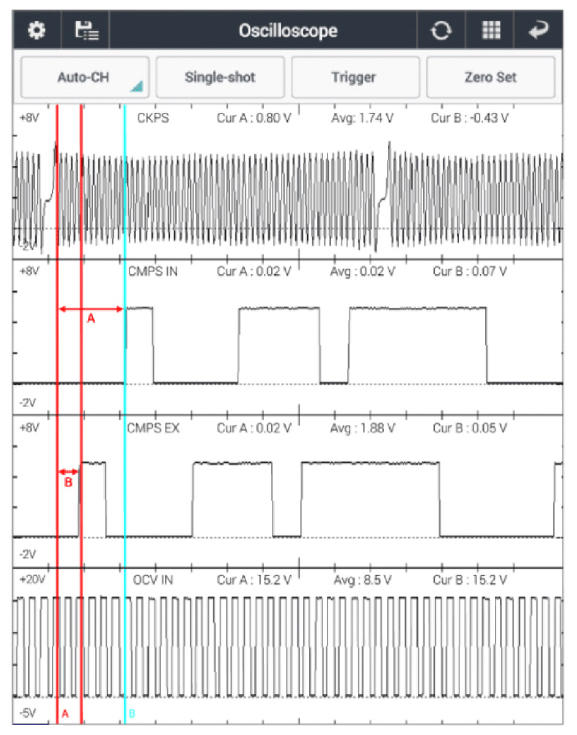

Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

G13052570Courtesy of HYUNDAI MOTOR AMERICA
