Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

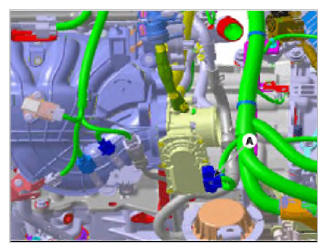

  3. Disconnect the ETC module connector (A).
    G13052543Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the installation bolts, and then remove the ETC module (A) from the engine.
    G13052544Courtesy of HYUNDAI MOTOR AMERICA
