Bank 1/Sensor 2

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

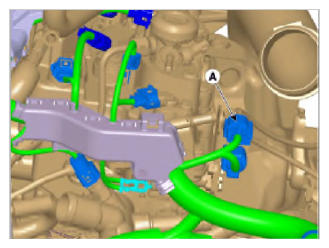

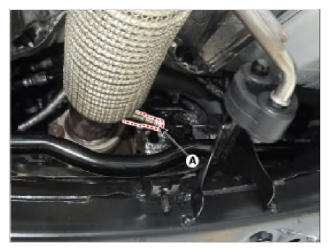

  2. Disconnect the connector (A), and then remove the sensor (B).
    G13052591Courtesy of HYUNDAI MOTOR AMERICA
    G13052592Courtesy of HYUNDAI MOTOR AMERICA
