Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

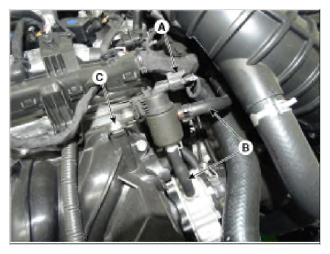

  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  4. Remove the installation bolt (C), and then remove the PCSV from the engine.
    G13052619Courtesy of HYUNDAI MOTOR AMERICA
