Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

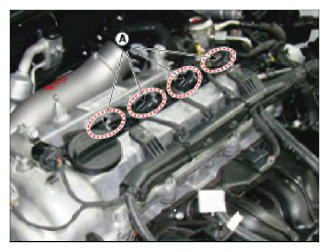

  3. Disconnect the ignition coil connector (A).
    G13052287Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G13052288Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the ignition coil (A) after loosening the mounting bolt.
    G13052289Courtesy of HYUNDAI MOTOR AMERICA
