Heated Steering Wheel Control Module (Body Control Module (BCM)
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the glove box upper cover.
(Refer to Body - "GLOVE BOX UPPER COVER ")
- Remove the smart key unit.
(Refer to Body Electrical System - "SMART KEY UNIT ")

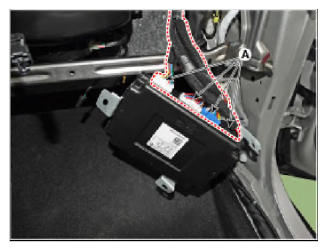

- Remove the body control module (A) after removing the bolt and nut.

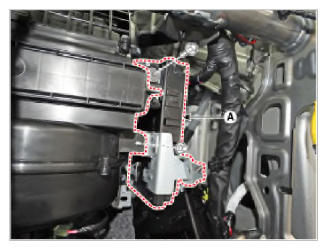

- Disconnect the body control module connector (A).
