Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Turn the steering wheel so that the front wheels can face straight ahead.
- Remove the driver airbag module.
(Refer to Restraint - "REPAIR PROCEDURES ")

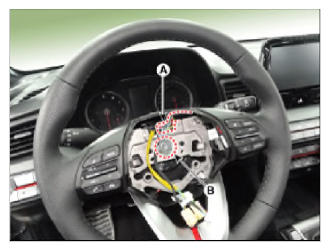

- Disconnect the steering wheel connector (A).
- Remove the steering wheel lock bolt (B) and then separate the steering wheel from the steering column.
Tightening torque:
44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb-ft)
