Repair Procedures: Removal

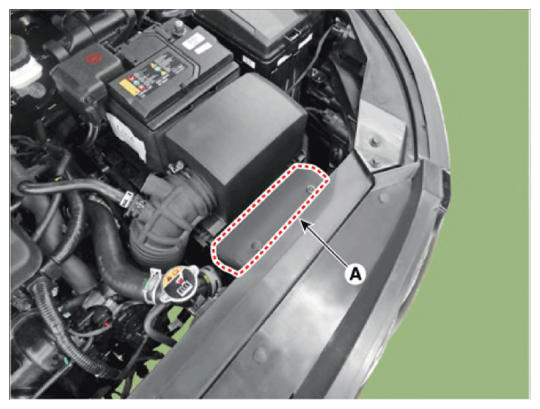

1. Remove the air duct (A).

   Courtesy of HYUNDAI MOTOR AMERICA

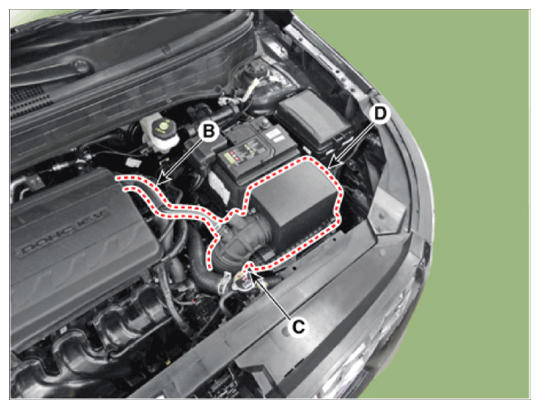

2. Disconnect the breather hose (B) and air intake hose (C).
3. Remove the air cleaner assembly (D).

   Tightening torque:

   Hose clamp bolt (C):

   2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.1 - 3.6 lb-ft)

   Air cleaner assembly bolts (D):

   3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

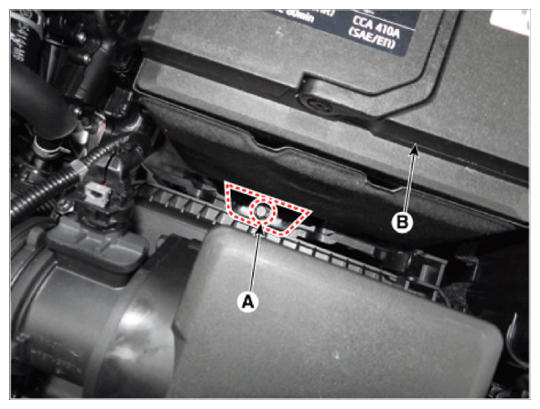

Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Tightening torque:

9.0 - 14.0 N.m (0.9 - 1.4 kgf.m, 6.6 - 10.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

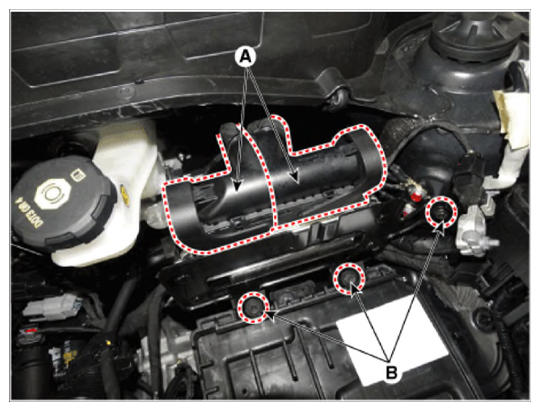

1. Disconnect the ECM connector (A).
2. Loosen the mounting bolts (B) and then removing the ECM bracket assembly.

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

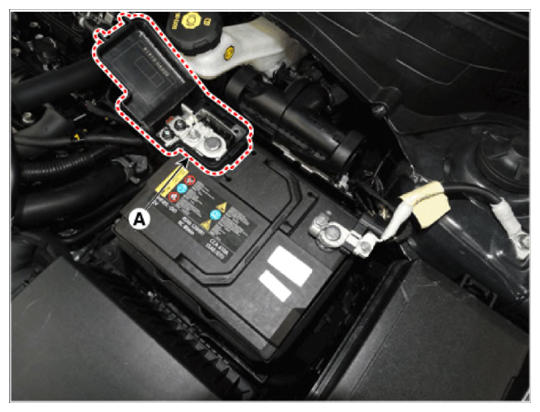

1. Loosen the mounting bolt (A) and then removing the battery (+) terminal bracket.

   Tightening torque:

   8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.4 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

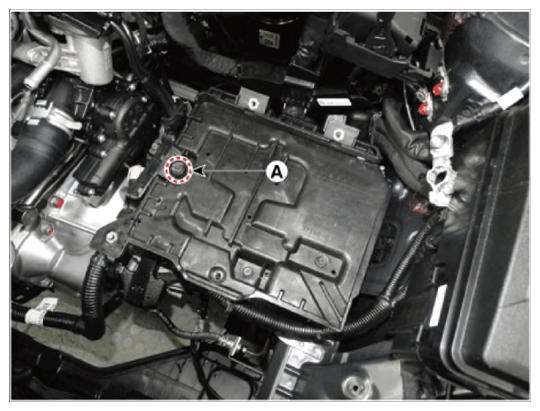

2. Loosen the bolts and then removing the battery tray (A).

   Tightening torque:

   8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

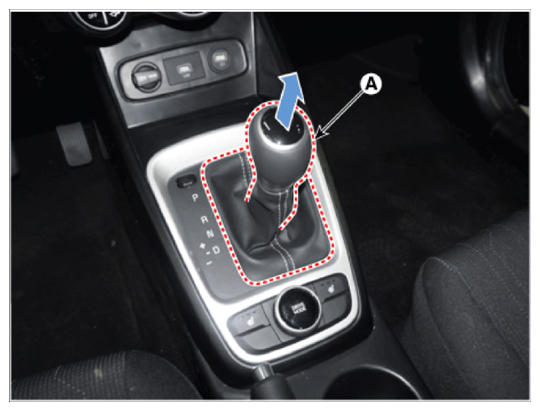

(Refer to Body - "FLOOR CONSOLE ")

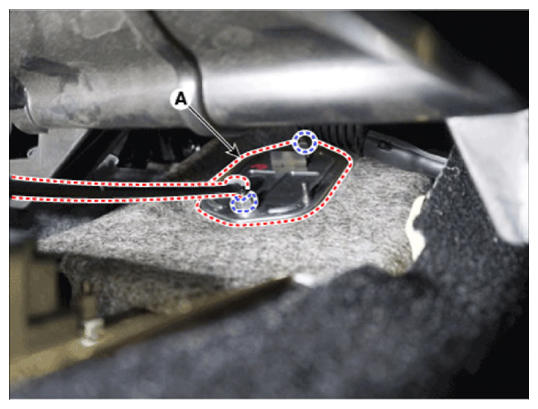

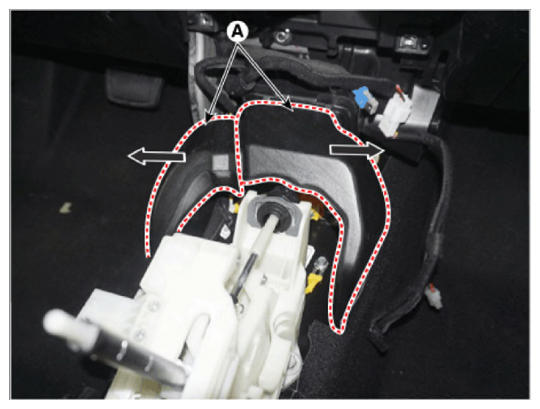

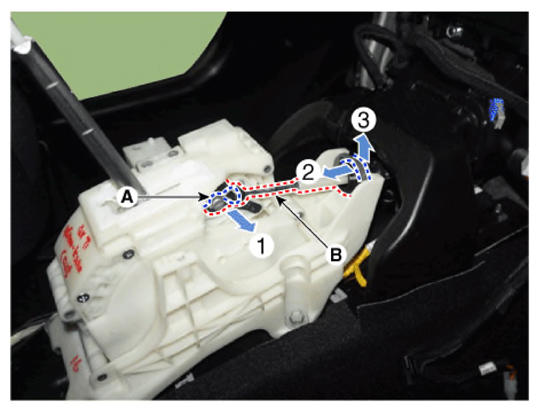

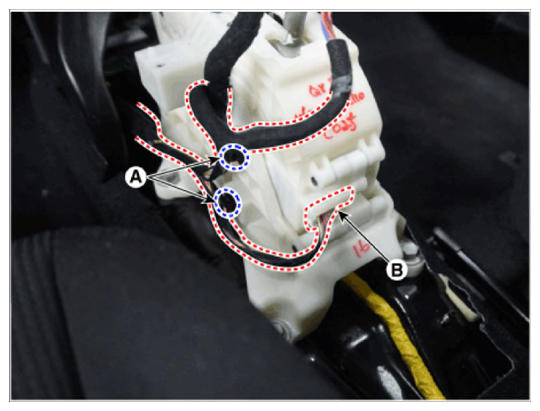

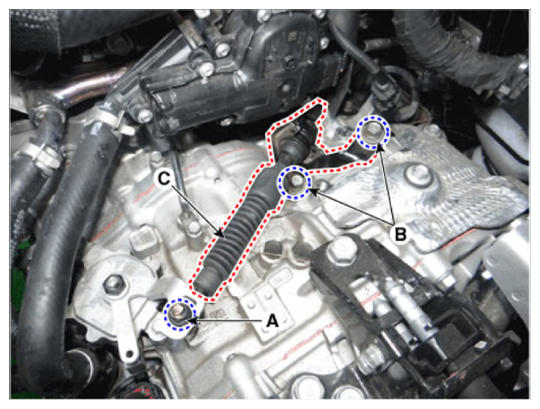

1. Remove the snap pin (A).
2. Separate the shift cable (B).

   Courtesy of HYUNDAI MOTOR AMERICA
