Accelerator Position Sensor (APS): Specifications: Specification

Items Specification
APS 1 APS 2
C.T 0.7 - 0.8 0.33 - 0.43
W.O.T 4.13 - 4.22 2.04 - 2.13

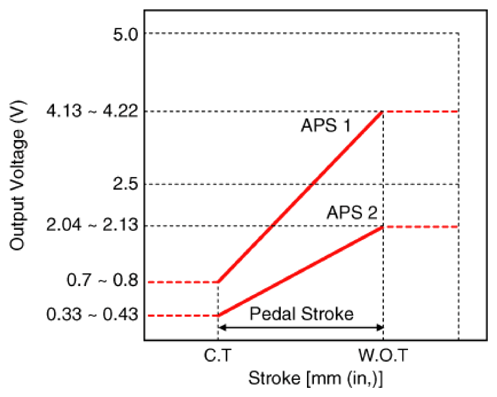

G14694462Courtesy of HYUNDAI MOTOR AMERICA
