Components Location

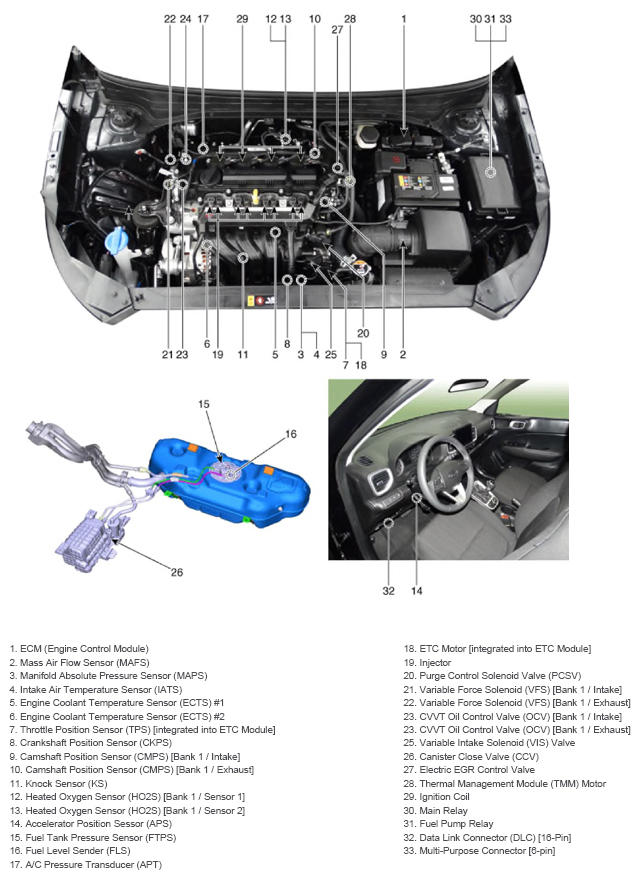

G14694371Courtesy of HYUNDAI MOTOR AMERICA

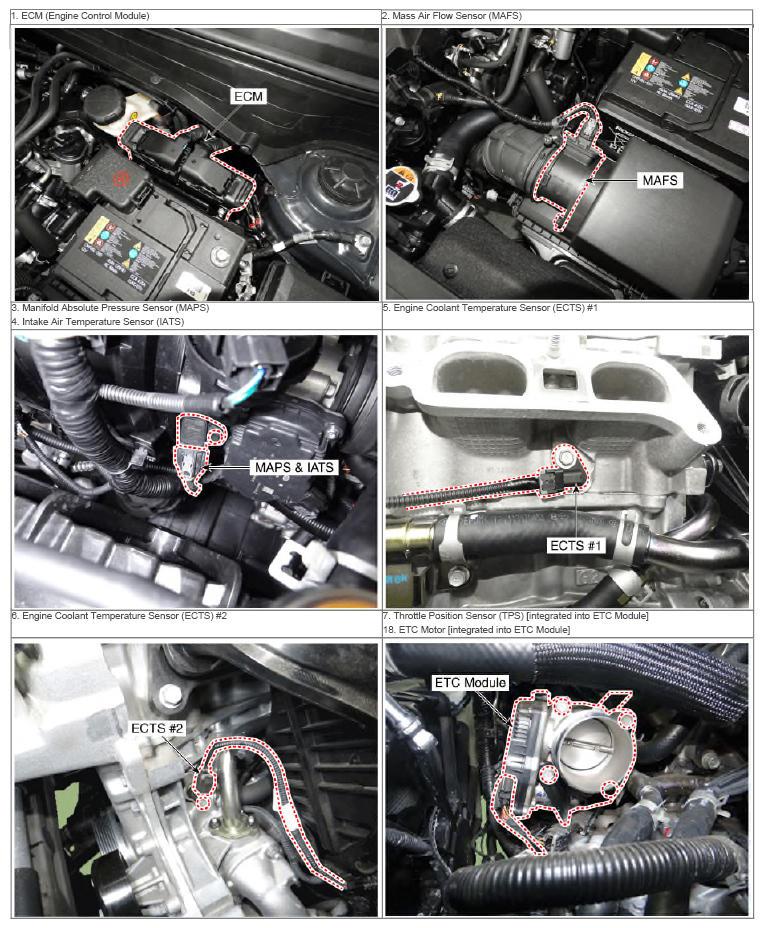

G14694372Courtesy of HYUNDAI MOTOR AMERICA

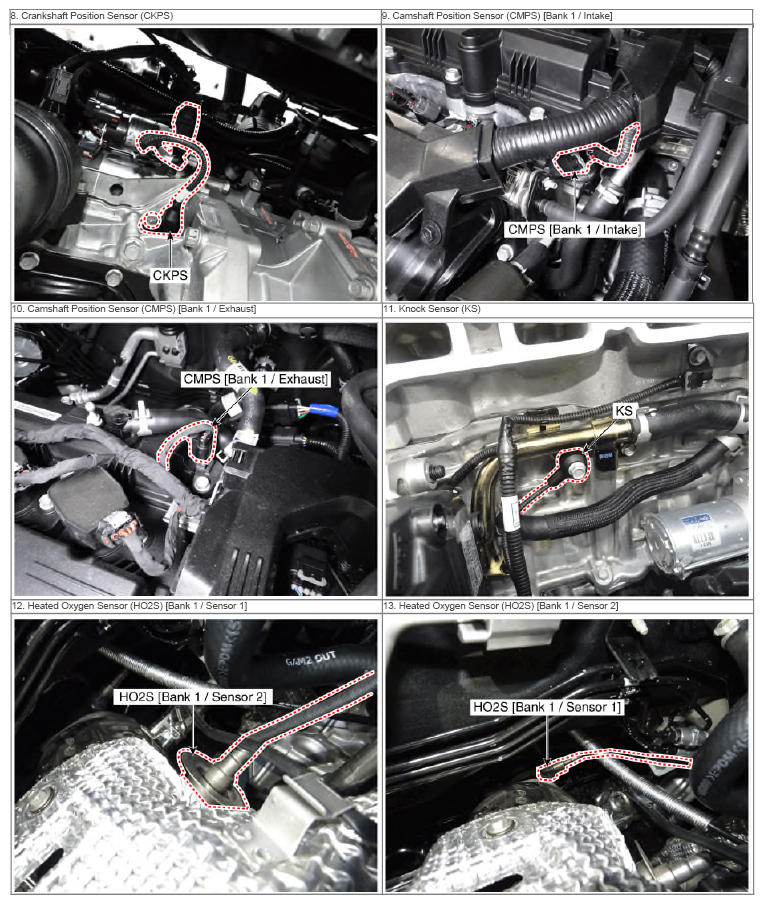

G14694373Courtesy of HYUNDAI MOTOR AMERICA

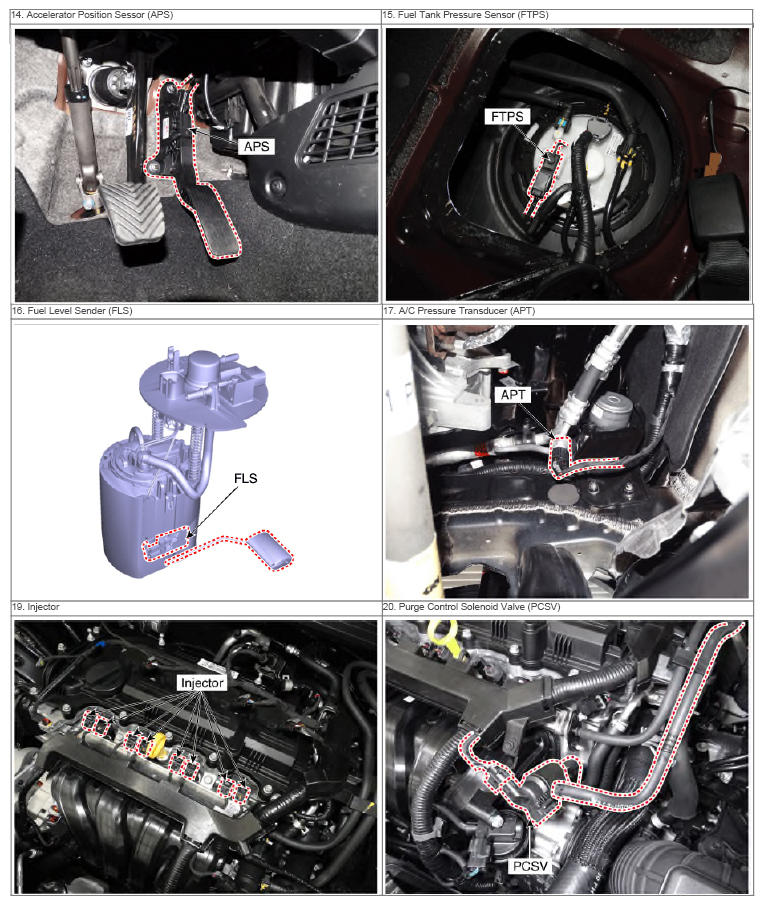

G14694374Courtesy of HYUNDAI MOTOR AMERICA

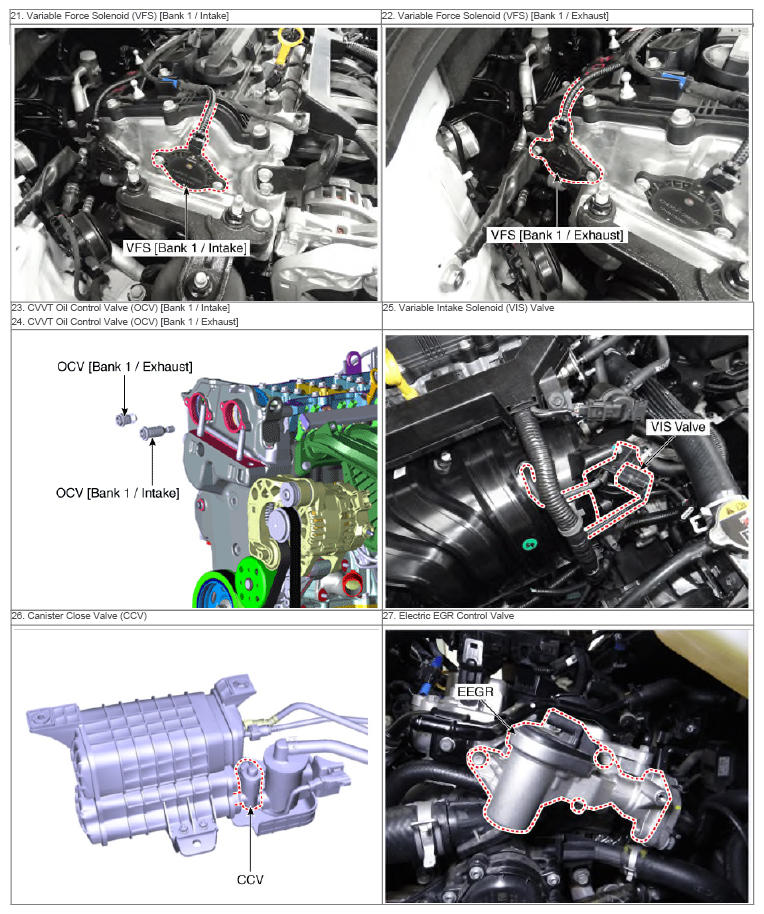

G14694375Courtesy of HYUNDAI MOTOR AMERICA

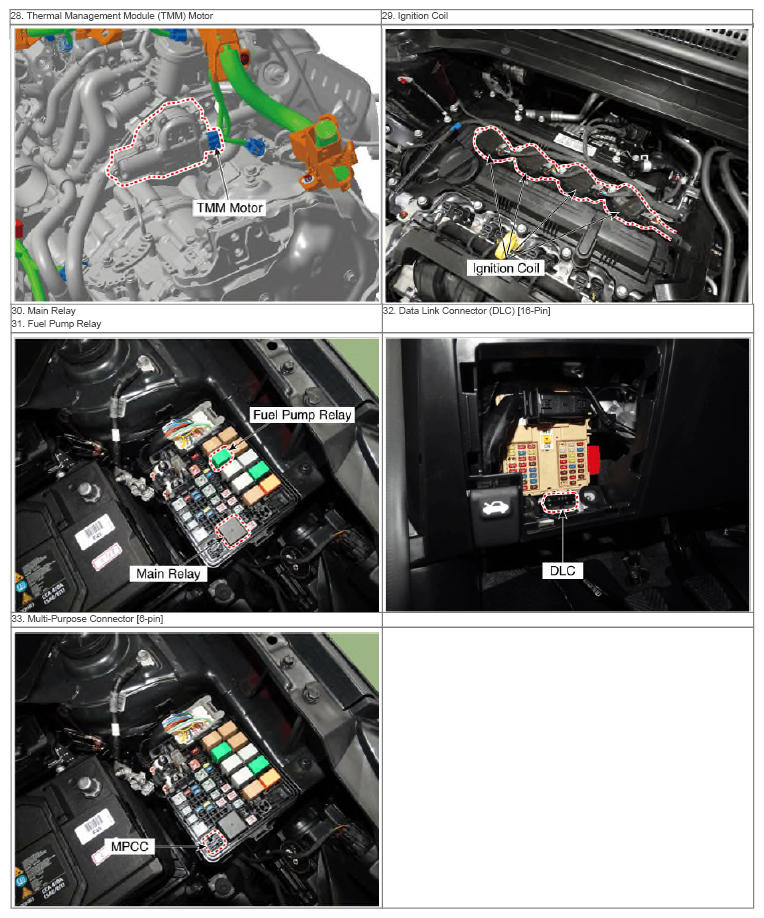

G14694376Courtesy of HYUNDAI MOTOR AMERICA
