[Bank 1/Sensor 1]

Turn the ignition switch OFF and disconnect the battery negative (-) cable.

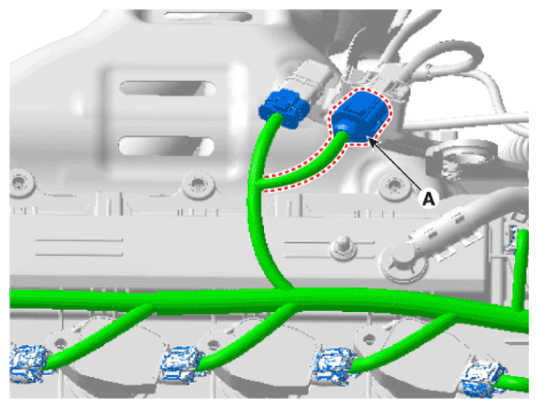

Disconnect the heated oxygen sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

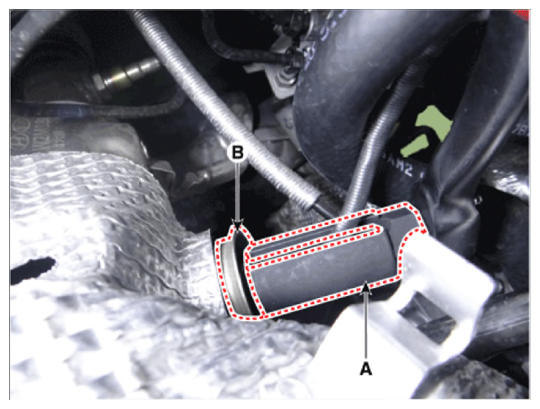

Remove the heated oxygen sensor (B) using the special tool (A) [SST No.: 09392-1Y100] as shown below.

NOTE:

Note that the SST (Part No.: 09392-2H100 or 09392-1Y100) is useful when removing the heated oxygen sensor.

Heated oxygen sensor installation:

40.0 - 60.0 N.m (4.1 - 6.1 kgf.m, 29.5 - 44.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
