Repair Procedures: Installation

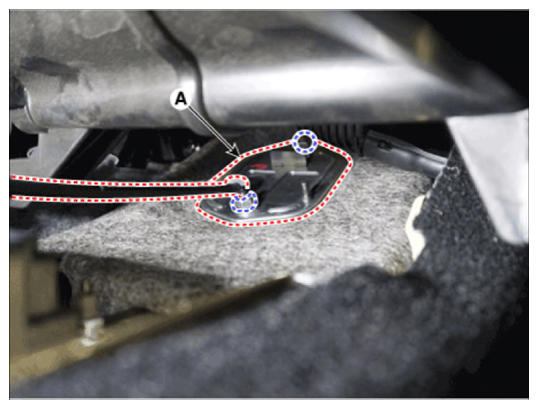

  1. Tighten the nuts and then Install the shift cable retainer (A).

    Tightening torque:

    11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)

    G14694873Courtesy of HYUNDAI MOTOR AMERICA

    Information

    • Install the cable after placing the shift lever and the manual control lever in the N position.

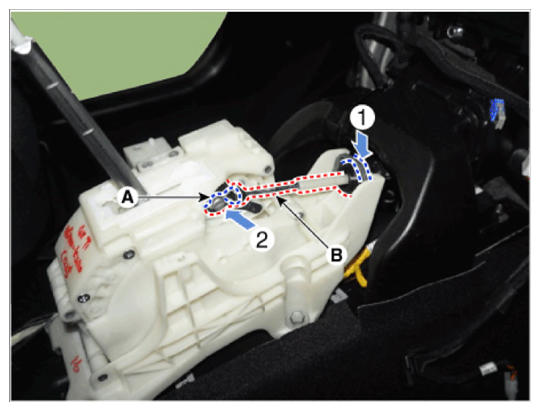

  2. Install the shift cable.
    1. Install the shift cable (B).
    2. Install the snap pin (A).
    G14694874Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:

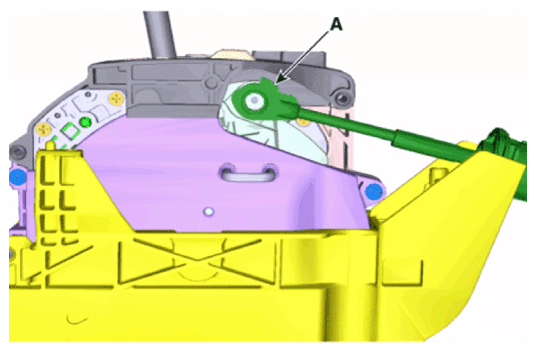

    • Lug (A) must assemble upward.
      G14694875Courtesy of HYUNDAI MOTOR AMERICA

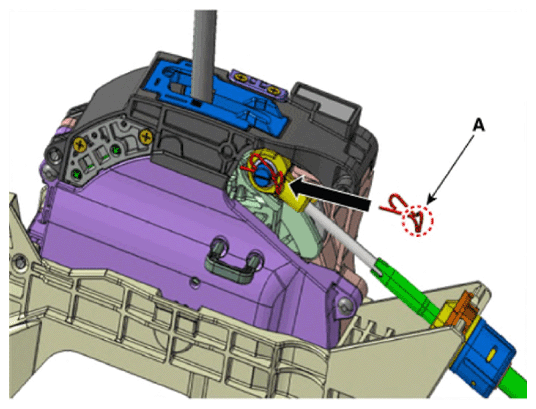

    • Bending area (A) must assemble the front.
      G14694876Courtesy of HYUNDAI MOTOR AMERICA

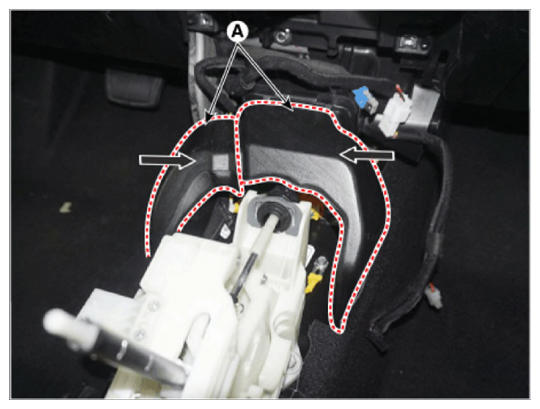

  3. Install the air duct (A).
    G14694877Courtesy of HYUNDAI MOTOR AMERICA

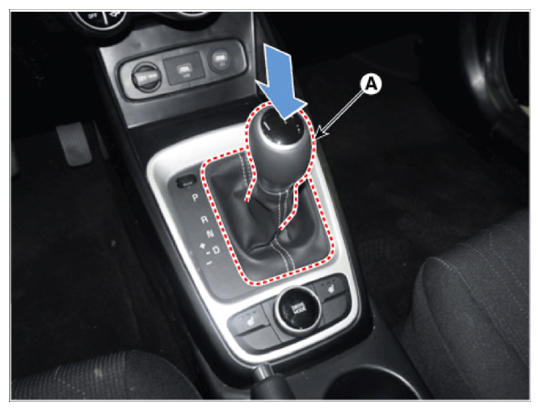

  4. Install the shift knob & boots (A).
    G14694878Courtesy of HYUNDAI MOTOR AMERICA
  5. Install the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

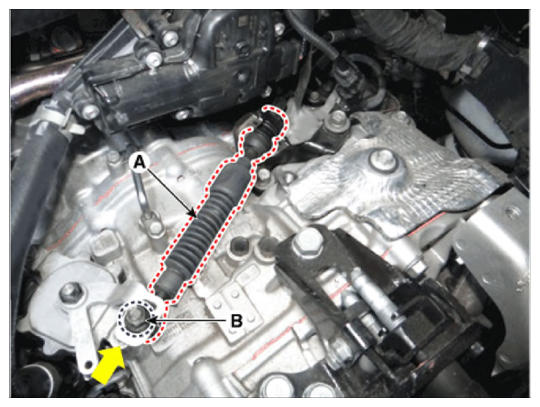

  6. Push shift cable (A) lightly to "F" direction shown to eliminate free play of shift cable.
  7. Tighten the nut (B) to the specified torque.

    Tightening torque:

    9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G14694879Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Replace the cable clip, use a new one.
      G14694880Courtesy of HYUNDAI MOTOR AMERICA
  8. Install the battery tray.
    1. Tighten the bolts and then install the battery tray (A).

      Tightening torque:

      8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

      G14694881Courtesy of HYUNDAI MOTOR AMERICA

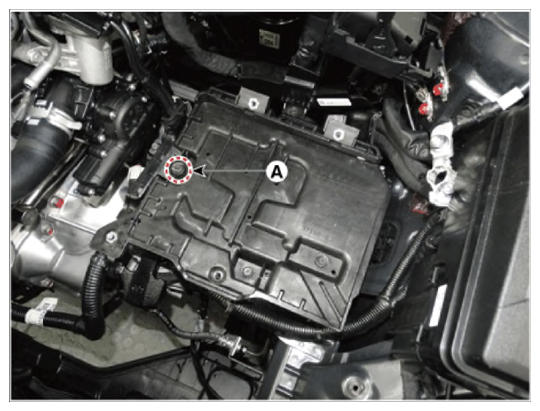

    2. Tighten the mounting bolt (A) and then install the battery (+) terminal bracket.

      Tightening torque:

      8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.4 lb-ft)

    G14694882Courtesy of HYUNDAI MOTOR AMERICA

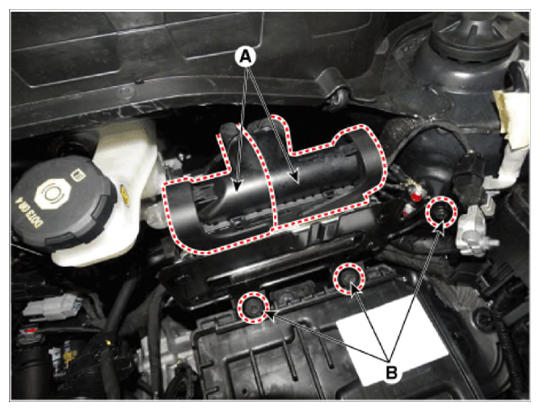

  9. Install the ECM.
    1. Connect the ECM connector (A).
    2. Tighten the mounting bolts (B) and then install the ECM bracket assembly.

      Tightening torque:

      9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

      G14694883Courtesy of HYUNDAI MOTOR AMERICA

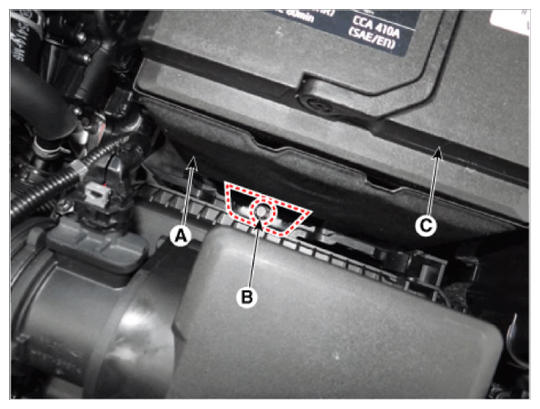

  10. Install the battery (B) and mounting bracket (A).

    Tightening torque:

    9.0 - 14.0 N.m (0.9 - 1.4 kgf.m, 6.6 - 10.3 lb-ft)

    G14694884Courtesy of HYUNDAI MOTOR AMERICA

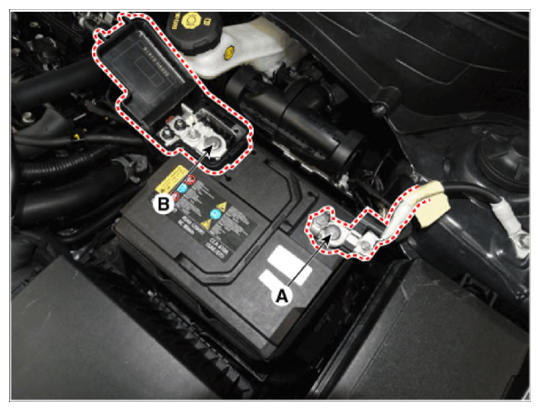

  11. Install the battery (+) terminal (A).

    Tightening torque:

    7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

    G14694885Courtesy of HYUNDAI MOTOR AMERICA

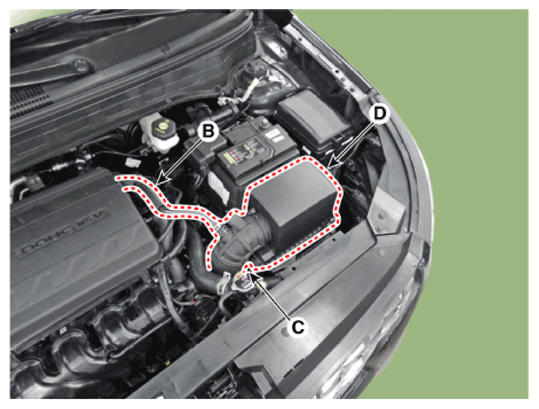

  12. Install the air cleaner and air duct.
    1. Install the breather hose (B) and air intake hose (C).
    2. Install the air cleaner assembly (D).

      Tightening torque:

      Hose clamp bolt (C):

      2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.1 - 3.6 lb-ft)

      Air cleaner assembly bolts (D):

      3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

      G14694886Courtesy of HYUNDAI MOTOR AMERICA
    3. Install the air duct (A).
      G14694887Courtesy of HYUNDAI MOTOR AMERICA
  13. Connect the battery (-) cable.
    CAUTION:
    • Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
