Repair Procedures: Removal

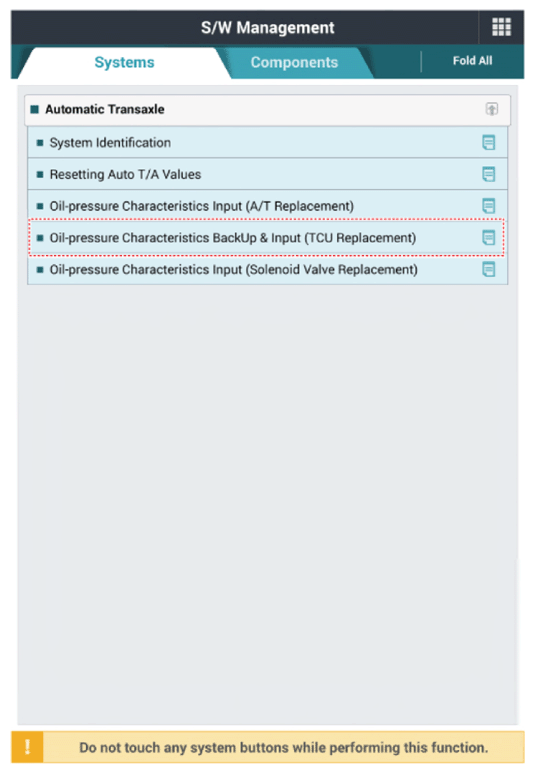

- Perform the oil pressure characteristics backup procedure using the diagnostic tool when replacing with a new TCM.
- Turn the ignition switch OFF.

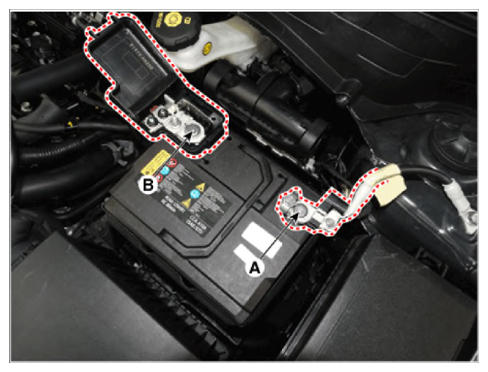

- Disconnect the battery (-) terminal (A).
- Disconnect the battery (+) terminal (B).
Tightening torque:
- 4.0 - 6.0 N.m (0.4 - 0.6 kgf.m, 3.0 - 4.4 lb-ft)
- 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

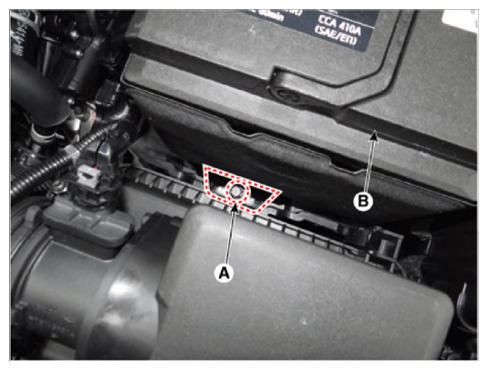

- Remove the battery mounting bracket (A) and the battery (B).
Tightening torque:
9.0 - 14.0 N.m (0.9 - 1.4 kgf.m, 6.6 - 10.3 lb-ft)

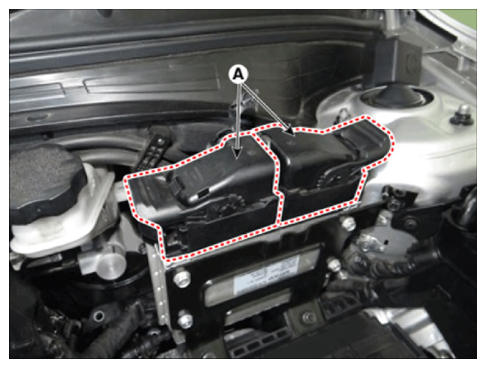

- Disconnect the TCM connectors (A).

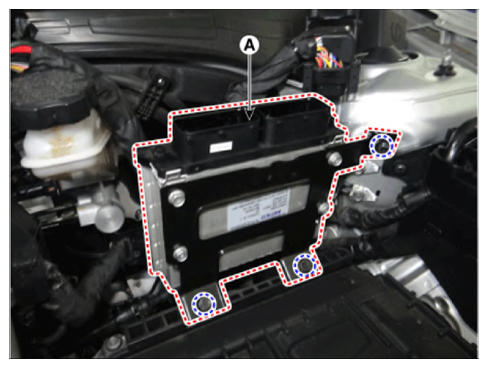

- Loosen the mounting bolts and then removing the TCM (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

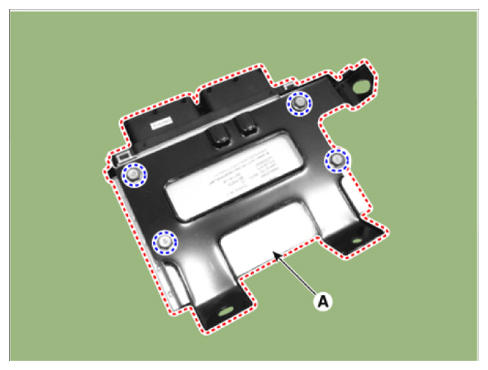

- Loosen the mounting nuts and then removing the TCM (A) from the bracket.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
