Repair Procedures: Installation

CAUTION:

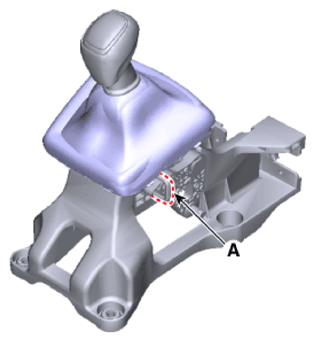

Place the shift lever and transaxle side lever in "4th" shift position and insert the lever fixing pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

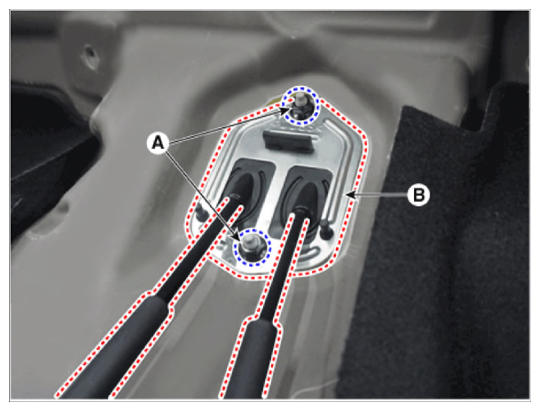

Install the retainer (B) and then tighten the nuts (A).
Tightening torque:

11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

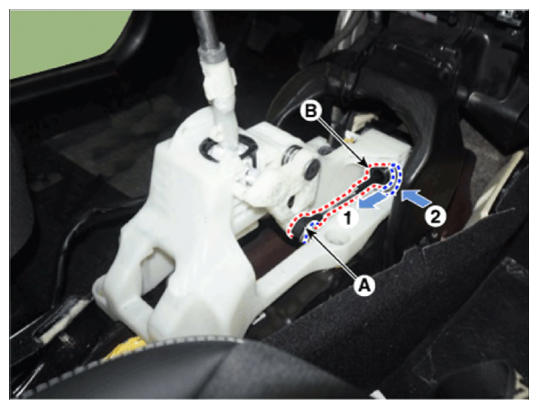

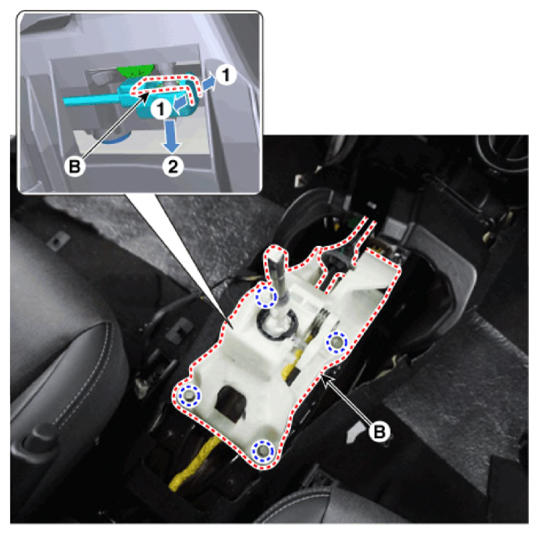

Install the shift cable end (A) and the shift lever (B).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the shift cable (A) from the shift lever.

Courtesy of HYUNDAI MOTOR AMERICA
Install the select cable (B) and the snap pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

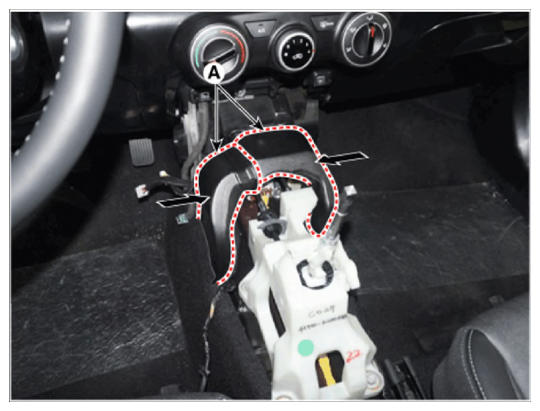

Install the air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA

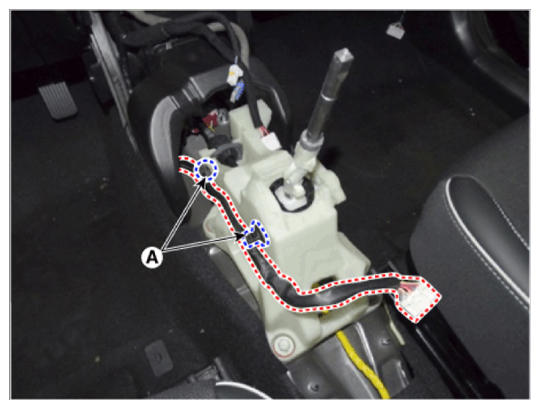

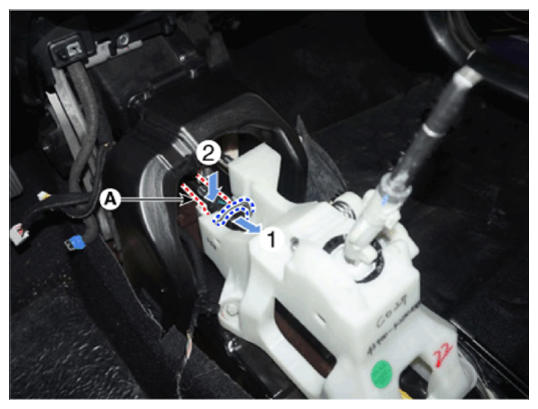

Install the clip (A) of wiring.

Courtesy of HYUNDAI MOTOR AMERICA

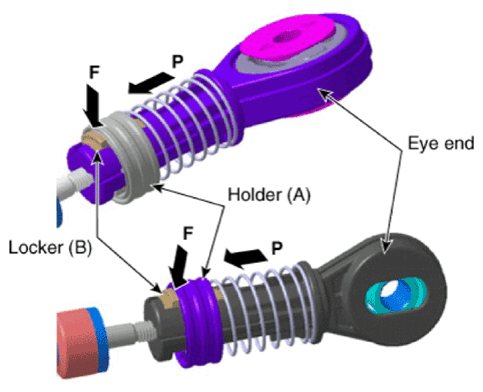

Move the locker (B) in the direction of "F" with pulling the holder (A) in the direction of "P".

Courtesy of HYUNDAI MOTOR AMERICA

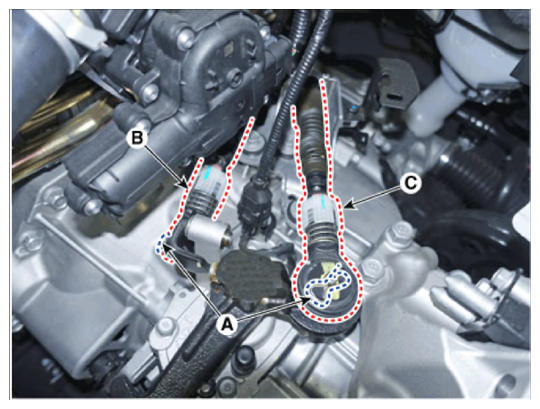

Install the control cable.
1. Install the snap pin (A).
2. Separate the select cable (B) and then shift cable (C).
Courtesy of HYUNDAI MOTOR AMERICA
Tighten the holder (A) to the "P" directions after fixing the rockers (B) in the "F" direction.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the shift lever 4th fixing pin (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

Install the battery tray.

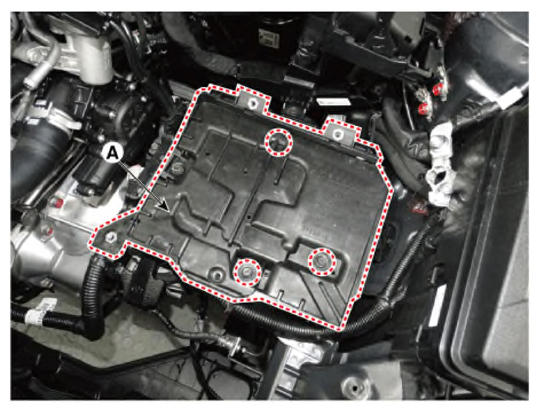

Tighten the bolts and then install the battery tray (A).

Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Tighten the mounting bolt (A) and then install the battery (+) terminal bracket.

Tightening torque:

8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

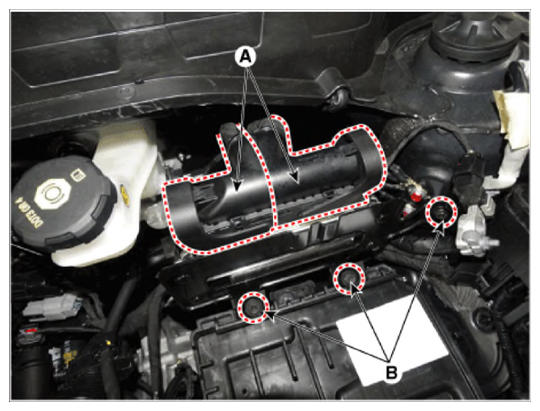

Install the ECM.

Tighten the mounting bolts (B) and then removing the ECM bracket assembly.

Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

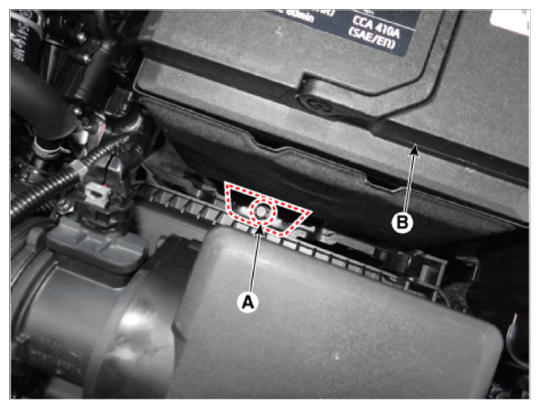

Install the battery (B) and mounting bracket (A).
Tightening torque:

9.0 - 14.0 N.m (0.9 - 1.4 kgf.m, 6.6 - 10.3 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

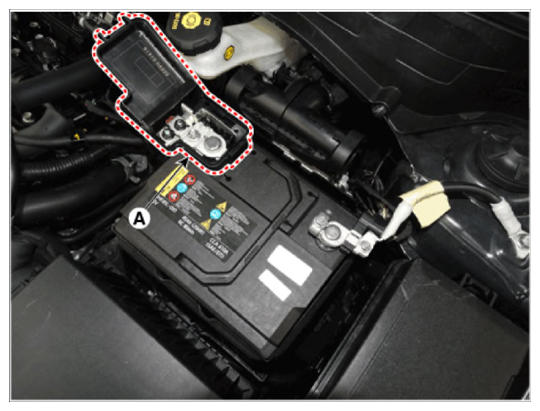

Install the battery (+) terminal (A).
Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Connect the battery (-) cable.
CAUTION:
- Check operating of lever of transaxle side when operating shift lever after assembly. (1~6, R)
- If there is sticky feel, adjust the control cable length again. (Refer to Manual Transaxle Control System - "CONTROL CABLE ")
