Repair Procedures: Removal

  1. Turn OFF ignition switch and disconnect the negative (-) battery cable.
  2. Remove the air cleaner and air duct.

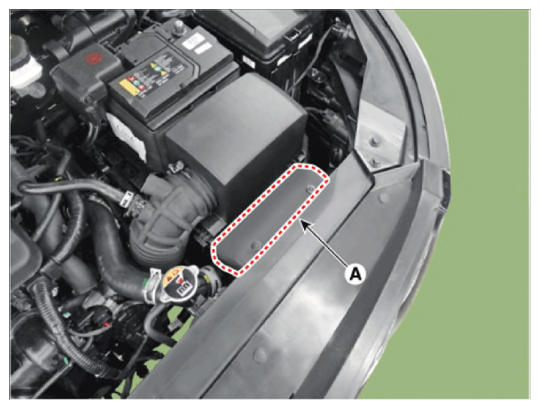

    1. Remove the air duct (A).
      G14694715Courtesy of HYUNDAI MOTOR AMERICA
    2. Disconnect the breather hose (B) and air intake hose (C).
    3. Remove the air cleaner assembly (D).

      Tightening torque:

      Hose clamp bolt (C):

      2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.1 - 3.6 lb-ft)

      Air cleaner assembly bolts (D):

      3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

      G14694716Courtesy of HYUNDAI MOTOR AMERICA

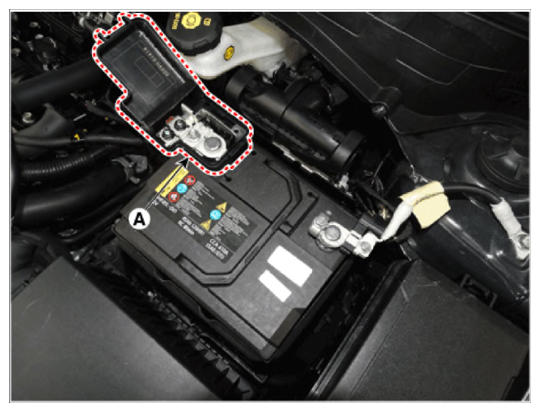

  3. Remove the battery (+) terminal (A).

    Tightening torque:

    7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 Ib-ft)

    G14694717Courtesy of HYUNDAI MOTOR AMERICA

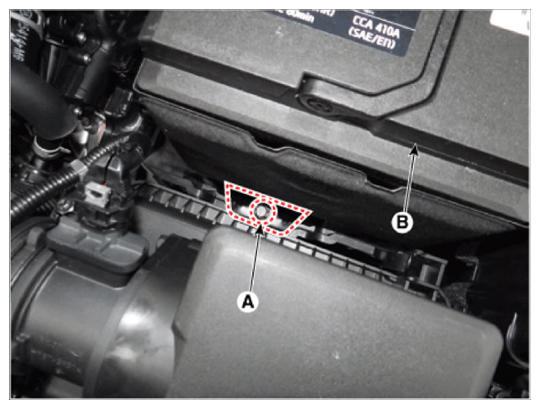

  4. Remove the battery mounting bracket (A) and the battery (B).

    Tightening torque:

    9.0 - 14.0 N.m (0.9 - 1.4 kgf.m, 6.6 - 10.3 Ib-ft)

    G14694718Courtesy of HYUNDAI MOTOR AMERICA

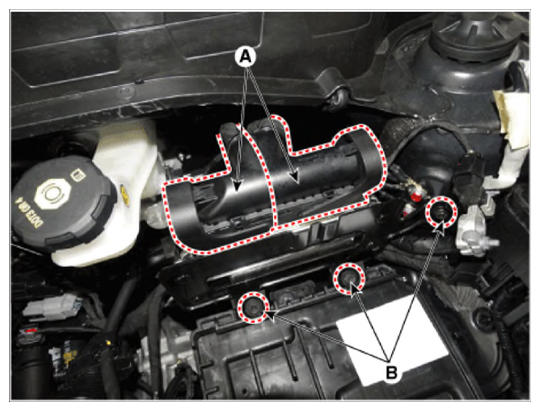

  5. Remove the ECM.
    1. Disconnect the ECM connector (A).
    2. Loosen the mounting bolts (B) and then removing the ECM bracket assembly.

      Tightening torque:

      9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G14694719Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the battery tray.
    1. Loosen the mounting bolt (A) and then removing the battery (+) terminal bracket.

      Tightening torque:

      8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.4 lb-ft)

      G14694720Courtesy of HYUNDAI MOTOR AMERICA

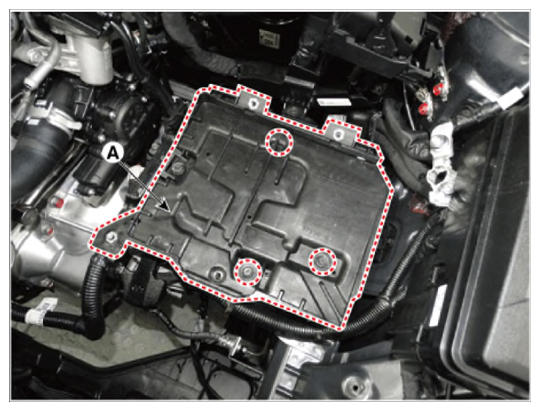

    2. Loosen the bolts and then removing the battery tray (A).

      Tightening torque:

      8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 Ib-ft)

    G14694721Courtesy of HYUNDAI MOTOR AMERICA

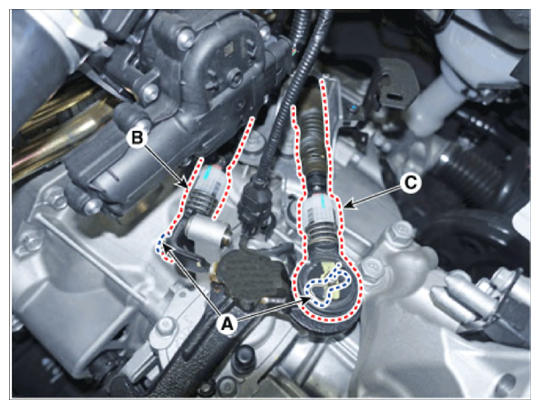

  7. Separate the control cable.
    1. Remove the snap pin (A).
    2. Separate the select cable (B) and then shift cable (C).
      G14694722Courtesy of HYUNDAI MOTOR AMERICA

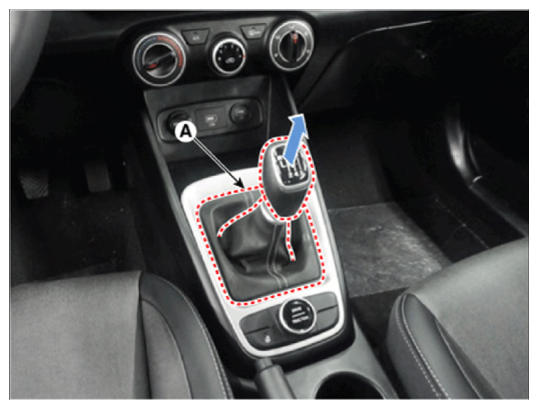

  8. Remove the shift knob & boot (A).
    G14694723Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

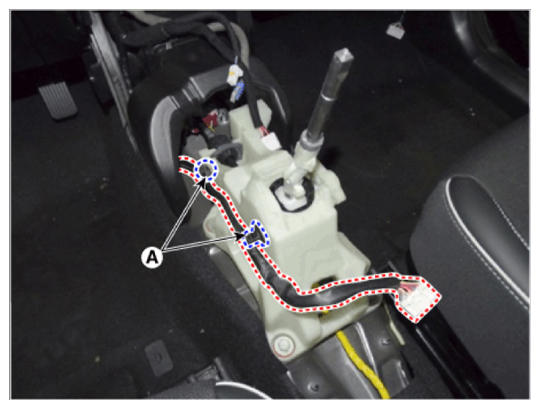

  10. Separate the clip (A) of wiring.
    G14694724Courtesy of HYUNDAI MOTOR AMERICA

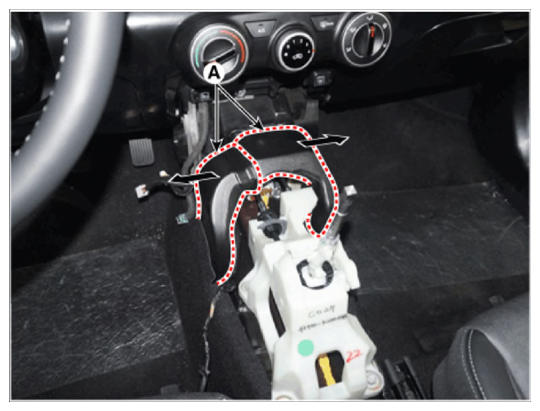

  11. Separate the air duct (A) from the both side.
    G14694725Courtesy of HYUNDAI MOTOR AMERICA

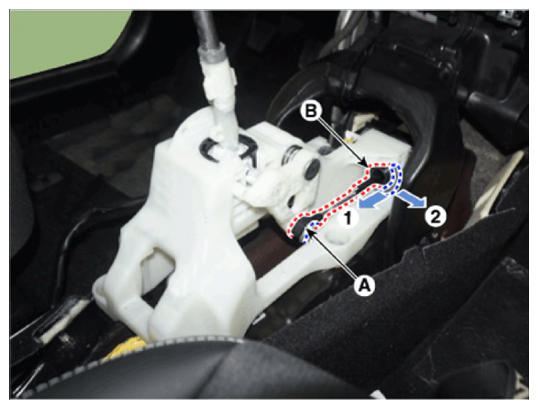

  12. Separate the select cable (B), after removing the snap pin (A).
    G14694726Courtesy of HYUNDAI MOTOR AMERICA

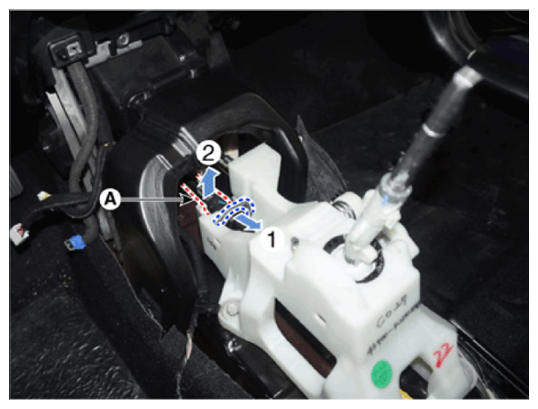

  13. Remove the cable socket (A) from the shift lever, after release the lock.
    G14694727Courtesy of HYUNDAI MOTOR AMERICA

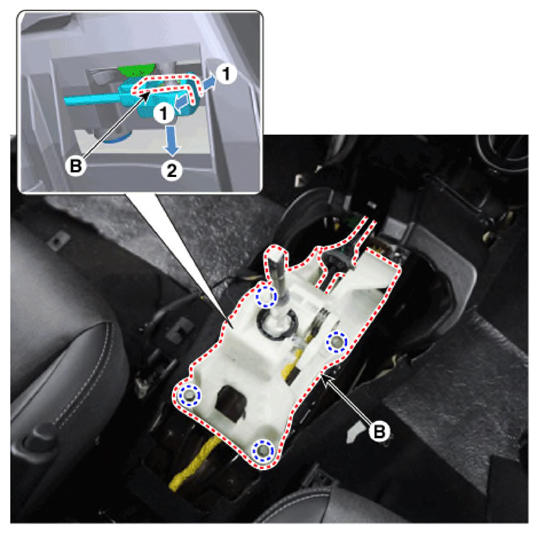

  14. Remove the shift lever.
    1. Remove the snap pin (A)
    2. Loosen the bolts and then removing the shift lever (B).

      Tightening torque:

      8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

      G14694728Courtesy of HYUNDAI MOTOR AMERICA

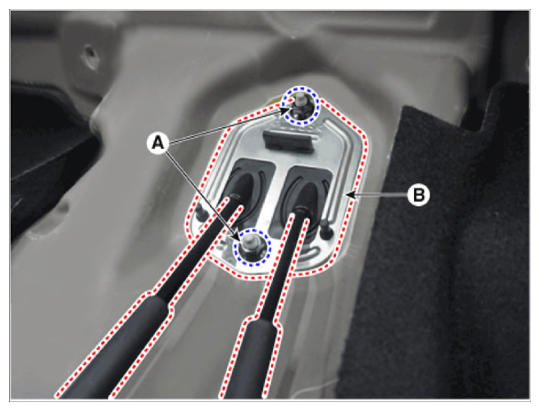

  15. Loosen the nuts (A) and then removing the retainer (B).
    G14694729Courtesy of HYUNDAI MOTOR AMERICA

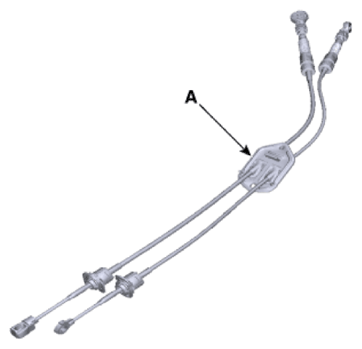

  16. Remove the control cable assembly (A) from the vehicle.
    G14694730Courtesy of HYUNDAI MOTOR AMERICA
