Repair Procedures: Installation

To install, reverse the removal procedures.

NOTE:

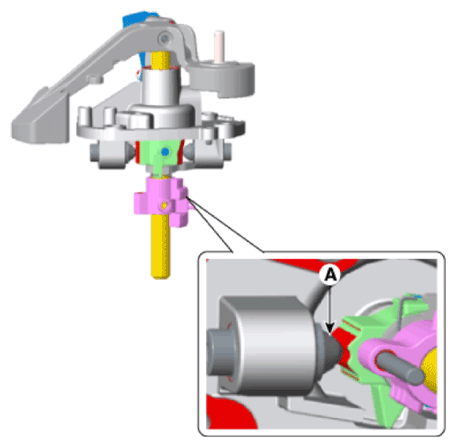

When installing, set control shaft lever to neutral position (A).

Courtesy of HYUNDAI MOTOR AMERICA

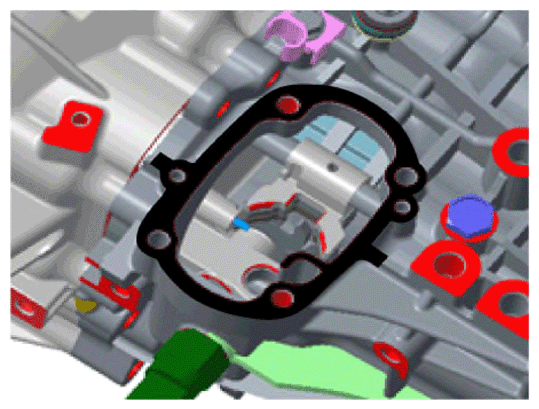

Apply the sealant to the contact surface of transaxle and control shaft. Specified sealant: LOCTITE 5060

Courtesy of HYUNDAI MOTOR AMERICA

After installing, check to be sure that this part operates as designed at each range of transaxle side corresponding to each position of shift lever.
