Repair Procedures: Removal

  1. Turn OFF ignition switch and disconnect the negative (-) battery cable.

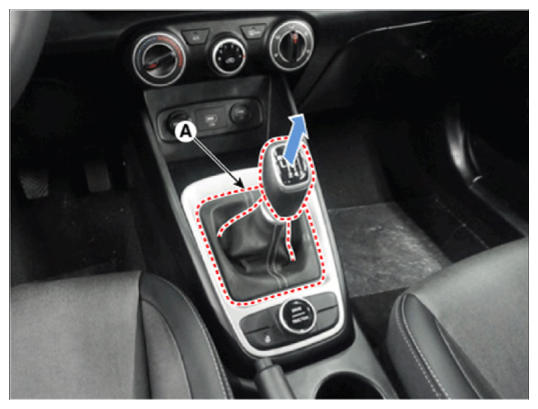

  2. Remove the shift lever knob & boots (A) pull both of it up.
    G14694708Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

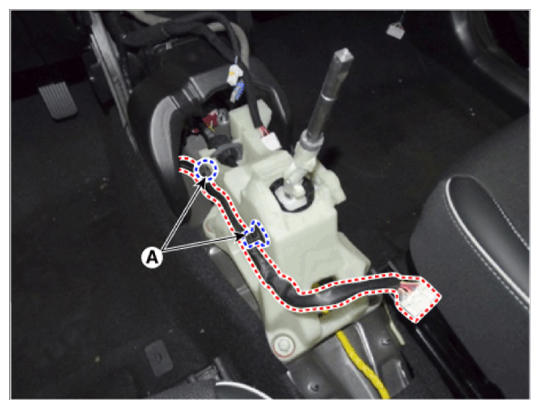

  4. Separate the clip (A) of wiring.
    G14694709Courtesy of HYUNDAI MOTOR AMERICA

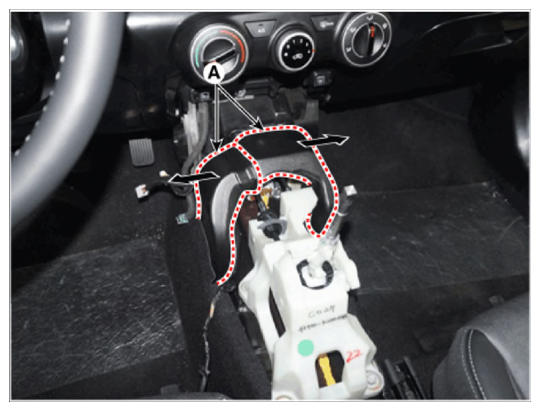

  5. Separate the air duct (A) from the both side.
    G14694710Courtesy of HYUNDAI MOTOR AMERICA

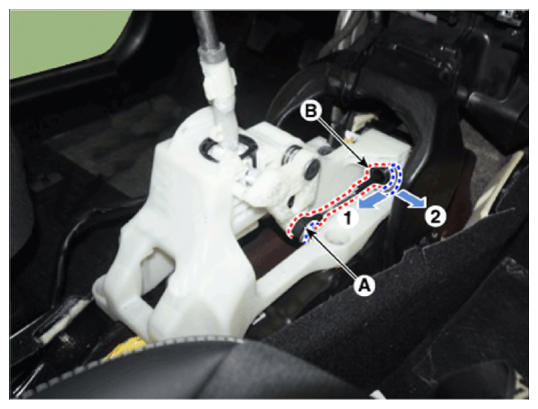

  6. Remove the snap pin (A) and then separate the select cable (B).
    G14694711Courtesy of HYUNDAI MOTOR AMERICA

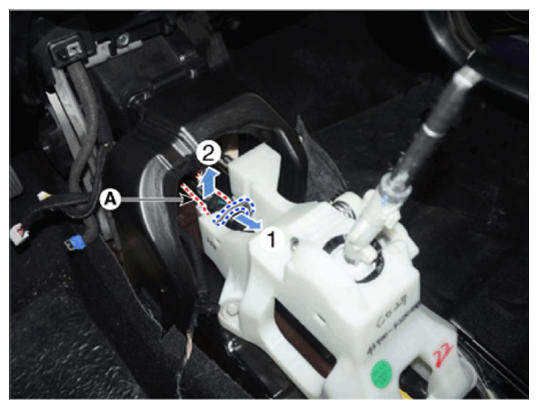

  7. Separate the cable socket (A) from the shift lever, after release the lock.
    G14694712Courtesy of HYUNDAI MOTOR AMERICA

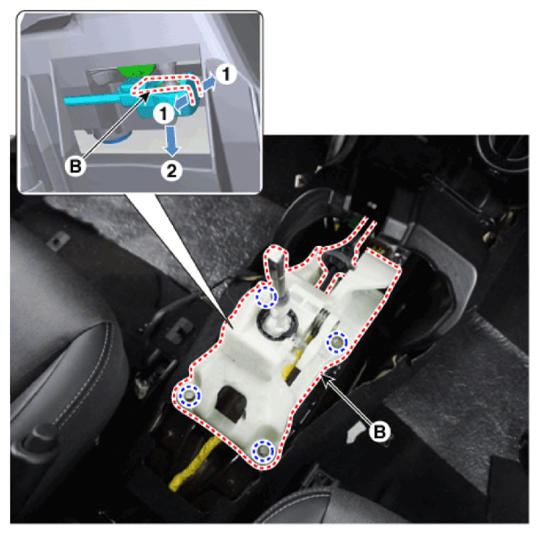

  8. Remove the shift lever.
    1. Remove the snap pin (A)
    2. Loosen the bolts and then removing the shift lever (B).

      Tightening torque:

      8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

      G14694713Courtesy of HYUNDAI MOTOR AMERICA
