Idle Switch

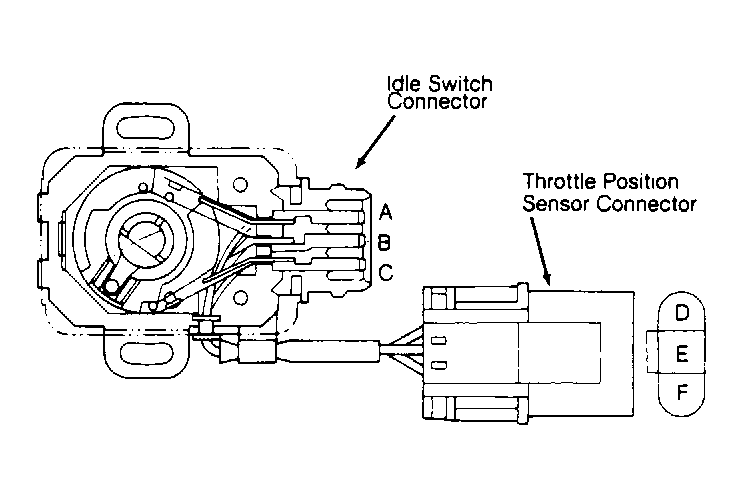

- Disconnect idle switch harness connector. Connect ohmmeter leads between idle switch terminals "B" and "C". See Figure .
- With throttle valve fully closed, continuity should exist. With throttle valve in open position, continuity should not exist.
