Firing Order & Timing Marks

NOTE: V8 models use a distributorless ignition system. Firing order on these models is controlled by ECU through left and right power transistors. Adjustments to timing are NOT possible.

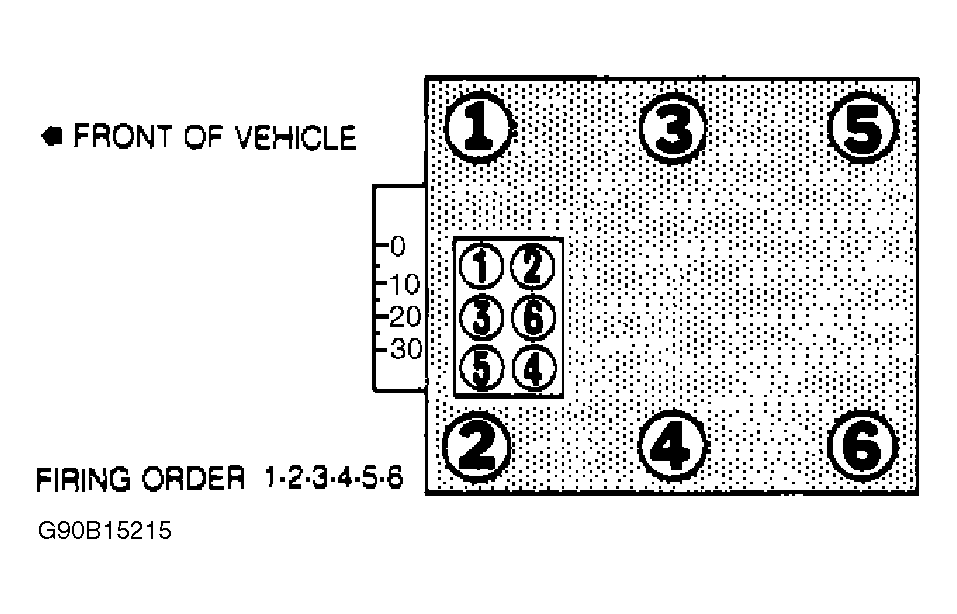

Fig 1: V6 Firing Order, Distributor Wiring & Timing Mark Locations
